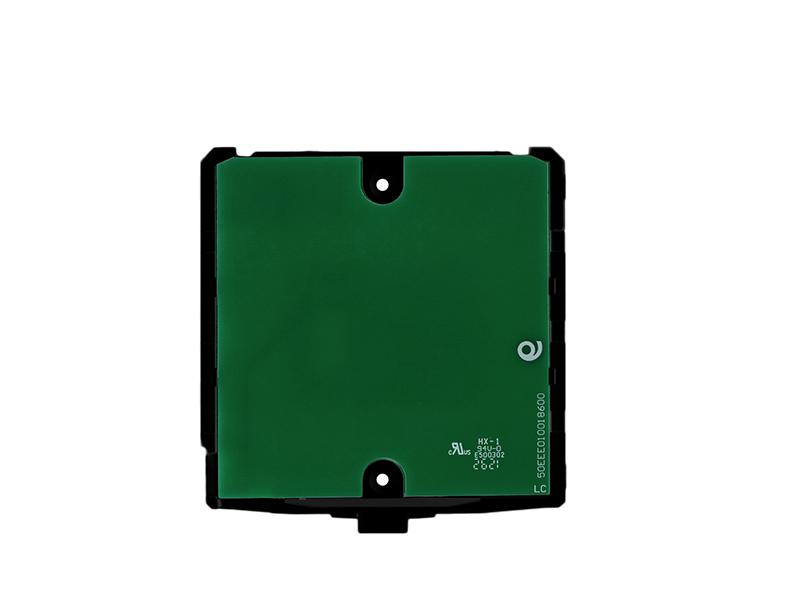

Eelectron TS01D01ACC-3-3M Temperature Sensor 9025 3-module – black
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$32.90 USD
Regular price
-8%
$35.84 USD
Sale price
$32.90 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The Eelectron TS01D01ACC-3-3M is the 9025-series wall temperature probe in black for a 3-module flush box. It is a passive NTC sensor in the same glass-fronted format as the 9025 capacitive thermostats, so a bedroom, bathroom or second zone gets a design-matched temperature pick-up wired to the analog NTC input of any Eelectron KNX device — no extra bus device needed.
It is used with the 3-module glass cover (9025GS300A03 for this finish; 9025GS300A01 for the other) over up to 30 m (98 ft) of twisted cable; the element measures −5…+45 °C (23…113 °F). The white version is TS01D01ACC-1-3M.
Key Features
- 9025-series wall temperature probe for a 3-module box, matching the 9025 capacitive thermostat look
- NTC element, measuring range −5…+45 °C (23…113 °F), tolerance ±2 %
- Connects to the analog NTC input of Eelectron KNX devices; max. 30 m (98 ft) twisted cable; keep ≥ 6 mm from live conductors
- Used with glass cover 9025GS300A03 (ordered separately)
- PC-ABS body, IP20; indoor, dry places; approx. 100 g (190 g with glass)
- Finish: black
Technical Specifications
| Type | Wall temperature probe, 9025 series, 3-module |
| Sensor | NTC, −5…+45 °C (23…113 °F), tolerance ±2 % |
| Connection | Rear input of the connected device; max. 30 m (98 ft) twisted cable |
| Compatible hardware | Eelectron KNX devices with analog NTC input (e.g. RT07A01KNX, RH07A01KNX, PD00E0x/E1x/E2x/E3x, TC28A01KNX, AD84C01KNX, IO04F01KNX) |
| Glass cover | 9025GS300A03 |
| Enclosure / protection | PC-ABS; IP20 (EN 60529) |
| Operating temperature | −5…+45 °C; storage −20…+55 °C; max. 90 % RH non-condensing |
| Dimensions | 126 × 96 mm (5.0 × 3.8 in) |
| Weight | Approx. 0.1 kg (0.22 lb); 190 g (0.42 lb) with glass |
| Finish | Black |
| Manufacturer part no. / GTIN | TS01D01ACC-3-3M / 8054144522067 |
Related Products
TS01D01ACC-1-3M (white). Glass covers: 9025GS300A01 (white), 9025GS300A03 (black). 2-module version: TS01D01ACC-1 / TS01D01ACC-3. Other probes: TS01A04ACC (−20…+100 °C, pack of 4), TS01B04ACC (−50…+60 °C, pack of 4), TS01C01ACC (metal case, −40…+105 °C). Thermostats of the same design: RT07A01KNX-1 / -3, RH07A01KNX-1 / -3.
Passive accessory – no electrical rating. The Eelectron KNX device it mounts on is CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
Datasheet (PDF) · Available to order.
