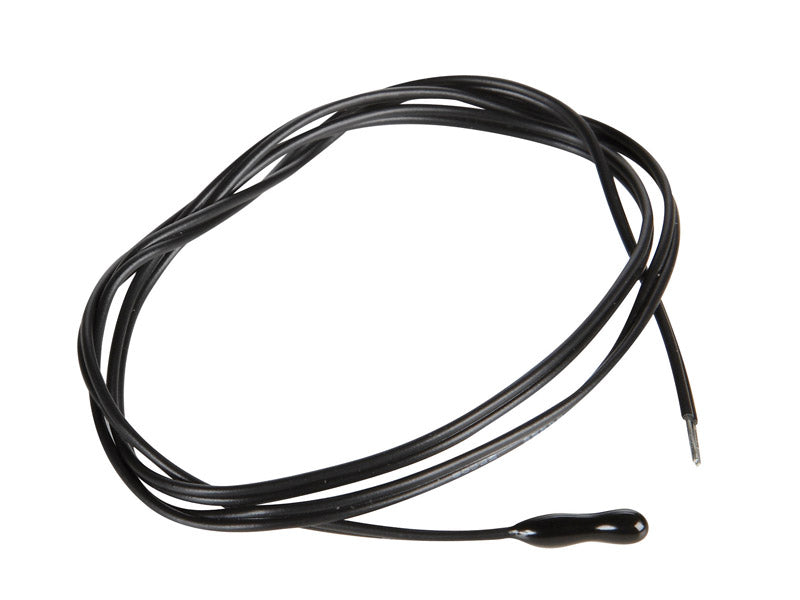

Eelectron TS01A04ACC Temperature Probe - Pack Of 4
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$56.90 USD
Regular price
-8%
$61.60 USD
Sale price
$56.90 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The Eelectron TS01A04ACC is a pack of 4 TS01A01ACC NTC temperature probes (−20…+100 °C (−4…+212 °F)) for the analog inputs of Eelectron KNX devices. One probe per input turns a presence detector, thermostat, actuator or input module into a temperature transmitter or a complete PI thermostat; the 4-pack suits a multi-zone AD84C01KNX, IO04F01KNX or TC28A01KNX panel.
The TS01A01ACC element suits general-purpose duct, pipe-surface and room sensing — floor-heating screed probes, supply-air and radiator-return measurement. Runs of up to 30 m (98 ft) twisted pair are supported; keep the lead at least 6 mm from live 230 V conductors. Single probe: TS01A01ACC; other types: TS01B01ACC (−50…+60 °C), TS01C01ACC (metal case, −40…+105 °C) and TS01D01ACC (9025 wall probe, −5…+45 °C).
Key Features
- Pack of 4 TS01A01ACC NTC temperature probes
- Measuring range −20…+100 °C (−4…+212 °F)
- NTC resistance tolerance ±3 %
- 2-wire lead, black cable, black ntc
- For the analog NTC inputs of Eelectron KNX devices; max. 30 m (98 ft) twisted cable; keep ≥ 6 mm from live parts
- Passive sensor — no power supply, no bus load
Technical Specifications
| Type | NTC temperature probe, pack of 4 (TS01A01ACC) |
| Measuring range | −20…+100 °C (−4…+212 °F) |
| Tolerance | NTC resistance ±3 % |
| Lead | 2-wire lead, black cable, black ntc |
| Connection | Analog NTC input of the host device; max. 30 m (98 ft) twisted cable |
| Clearance from live parts | ≥ 6 mm |
| Compatible hardware | Eelectron KNX devices with NTC probe input |
| Weight | 0.01 kg (0.02 lb) |
| Manufacturer part no. / GTIN | TS01A04ACC / 8054144527994 |
Related Products
Single probe: TS01A01ACC. Other probe types: TS01B04ACC (pack of 4, −50…+60 °C), TS01C01ACC (metal case), TS01D01ACC-1 / -3 (9025 wall probe). Host devices: PD00E01KNX / E02 / E03 / E11 / E13 / E20 / E21 / E31 / E39 presence detectors, RT07A01KNX / RH07A01KNX thermostats, TC28A01KNX fan-coil controller, AD84C01KNX analog/digital module.
Passive accessory – no electrical rating. The Eelectron KNX device it mounts on is CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
Datasheet (PDF) · Available to order.
