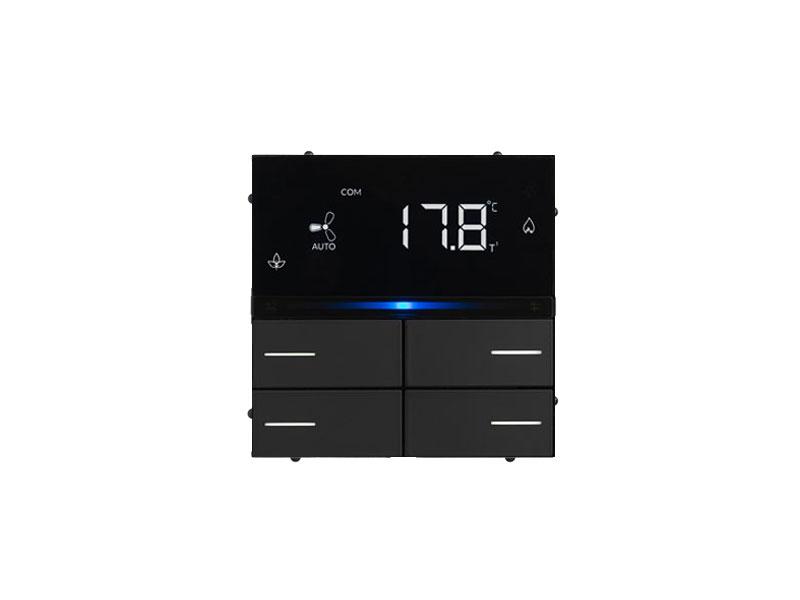

The Eelectron TO04L02KNX-3 is the LITE version of the OL-U KNX room thermostat in black: a wall-mounted controller with an integrated temperature sensor, two independent 2-stage PI thermostats, a backlit LCD and four mechanical pushbuttons configured as 8 channels, supplied pre-assembled with white-LED keys and a non-capacitive RGB status bar. It is the cost-effective room controller for hotel guest rooms, apartments and offices where temperature control and a few lighting/shade commands are needed at one wall point.

Each thermostat drives heating, cooling, valves, 6-way valves and 2-/4-pipe fan coils, so a bedroom and bathroom can be handled from one device. The 8 button channels cover on/off, dimming, shutters and blinds, scenes and sequences; 32 logic blocks and the Virtual Holder hospitality logic are included and the device supports KNX Data Secure. It mounts in a 2- or 3-module box with the FO71A01 frame. Choose MO04L02KNX if humidity and CO2 sensing are required; the white version of this thermostat is TO04L02KNX-1.

Key Features

  • Integrated temperature sensor −5…+55 °C, resolution 0.01 °C
  • Two independent 2-stage thermostats with PI controllers for heating/cooling, valves, 6-way valves, 2- and 4-pipe fan coils
  • 4 mechanical buttons configured as 8 channels (rocker-style) for on/off, dimming, shutters/blinds, scenes and sequences, with white LEDs
  • Central RGB LED bar (non-capacitive) for status display; LCD with adjustable backlight and ECO mode
  • 32 logic blocks with logical, threshold, algebraic and conditional operators; predefined proportional and dew-point algorithms
  • Virtual Holder logic for hotel-room occupancy
  • KNX Data Secure; KNX interface integrated; 600 group addresses / 700 associations
  • Fits 2- or 3-module boxes (Italian 502/503, German, British, Swiss); frame FO71A01-2M / -3M ordered separately
  • Bus-powered, max. 30 mA; 71 × 71 × 25 mm, approx. 60 g
  • Finish: black

Technical Specifications

Power supply Via KNX bus, 21–32 V DC (SELV)
Current consumption Max. 30 mA
Sensors Temperature
Temperature sensor −5…+55 °C (23…131 °F); resolution 0.01 °C; tolerance typ. ±0.5 °C
Thermostats 2 × 2-stage with PI controller
Controls 4 mechanical buttons (8 channels) with white LEDs; RGB LED bar (non-capacitive); LCD with adjustable backlight
Logic blocks 32
Security KNX Data Secure
Group addresses / associations 600 / 700
Enclosure / protection PC-ABS; IP20 (EN 60529)
Operating temperature −5…+45 °C (23…113 °F); storage −20…+70 °C (recommended max. 55 °C); max. 90 % RH non-condensing; indoor, dry places
Device dimensions 71 × 71 × 25 mm (2.8 × 2.8 × 1.0 in); 2-module frame 92 × 92 × 11 mm, 3-module frame 130 × 92 × 11 mm (frames not included)
Standards EN 63044-3; EN 63044-5-1 / -5-2; EN 50491-2; LVD 2014/35/EU; EMC 2014/30/EU; KNX certified
Mounting Flush wall box, 2 or 3 modules
Weight 0.13 kg (0.29 lb) (datasheet: approx. 60 g)
Finish Black
ETS application Eelectron xO04x0xKNX application (download from eelectron.com)
Manufacturer part no. / GTIN TO04L02KNX-3 / 8054144527987

Related Products

TO04L02KNX-1 (white). Multisensor LITE with humidity and CO2: MO04L02KNX-1 / -3. Regular OL-U thermostat with capacitive swipe bar: TO04A01KNX; thermostat/humidistat HO04A01KNX. Frames FO71A01-2M / FO71A01-3M; cover plates PO71A01RP-1 / -3, PO71A03RP-1 / -3; accessories SFBOA17-1 / -3 / -4, SFBOA25-1 / -3 / -4.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
