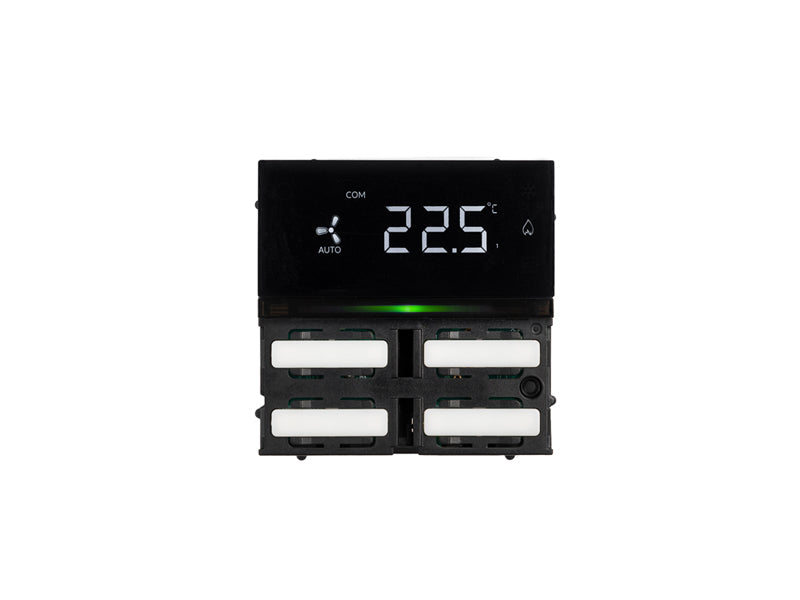

The Eelectron TO04A01KNX is the regular OL-U KNX thermostat hardware: a wall-mounted room controller for 2- or 3-module flush boxes with an integrated temperature sensor, two independent 2-stage PI thermostats, a backlit LCD, four mechanical pushbuttons configured as 8 channels with an RGB LED each, and a capacitive swipe bar with an RGB LED bar. It is the design-grade room controller of the OL-U range for hotel guest rooms, residences and executive offices, finished with button kits and frames in painted plastic, metal or FENIX that are ordered separately.

Each thermostat drives heating, cooling, valves, 6-way valves and 2-/4-pipe fan coils, so two zones (bedroom and bathroom, office and meeting area) are handled from one device. The swipe bar takes quick swipes for scenes (Welcome, IN…) and slow swipes for dimming, set-point or colour, plus tap, double-tap and long-press; the 8 button channels cover on/off, dimming, shutters and blinds, scenes and sequences. Thirty-two logic blocks and the Virtual Holder hospitality logic are built into the KNX Data Secure ETS application. The version with humidity sensor is HO04A01KNX; the LITE version without swipe bar is TO04L02KNX-1 / -3; for CO2 and humidity choose the MO04A01KNX multisensor.

Key Features

  • Integrated temperature sensor −5…+55 °C, 0.01 °C resolution
  • Two independent 2-stage thermostats with PI controllers for heating/cooling, valves, 6-way valves, 2- and 4-pipe fan coils
  • 4 mechanical buttons configured as 8 channels (on/off, dimming, shutters/blinds, scenes, sequences), one RGB LED per button
  • Multifunction capacitive swipe bar: quick swipes for scenes, slow swipes for dimming / set-point / colour, single tap, double tap, long press
  • Freely configurable RGB LED bar for status or any KNX bus value; LCD display with adjustable backlight and ECO mode
  • 32 logic blocks with logical, threshold, algebraic and conditional operators; predefined proportional and dew-point algorithms
  • Virtual Holder logic for accurate hotel-room occupancy from door contact + presence sensors
  • KNX Data Secure; KNX interface integrated; 600 group addresses / 700 associations
  • Fits 2- or 3-module boxes (Italian 502/503, German, British, Swiss); bus terminal and fixing screws supplied
  • Button kits BKT4PLL-1 / -3 / -4 (plastic) or metal / FENIX sets and frames FO71A01-2M / -3M ordered separately

Technical Specifications

Power supply Via KNX bus, 21–32 V DC (SELV)
Current consumption Max. 30 mA
Sensors Temperature
Temperature sensor −5…+55 °C (23…131 °F); resolution 0.01 °C; tolerance typ. ±0.5 °C
Thermostats 2 × 2-stage with PI controller
Controls 4 mechanical buttons (8 channels) with RGB LEDs; capacitive swipe bar with RGB LED bar; LCD with adjustable backlight
Logic blocks 32
Security KNX Data Secure
Group addresses / associations 600 / 700
Enclosure / protection PC-ABS; IP20 (EN 60529)
Operating temperature −5…+45 °C (23…113 °F); storage −20…+70 °C (recommended max. 55 °C); max. 90 % RH non-condensing; indoor, dry places
Device dimensions 71 × 71 × 25 mm (2.8 × 2.8 × 1.0 in); 2-module frame 92 × 92 × 11 mm, 3-module frame 130 × 92 × 11 mm (frames not included)
Standards EN 63044-3; EN 63044-5-1 / -5-2; EN 50491-2; LVD 2014/35/EU; EMC 2014/30/EU; KNX certified
Mounting Flush wall box, 2 or 3 modules
Weight 0.13 kg (0.29 lb) (datasheet: approx. 60 g without buttons/frame)
Finish Hardware only — colour defined by the button kit and frame ordered separately (white -1, black -3, Helvetia white -4)
ETS application Eelectron xO04x0xKNX application (download from eelectron.com)
Manufacturer part no. / GTIN TO04A01KNX / 8054144522913

Related Products

Thermostat/humidistat version: HO04A01KNX. LITE thermostat TO04L02KNX-1 / -3; multisensor MO04A01KNX-1 / -3 / -4. Button kits: BKT4PLL-1 (white), BKT4PLL-3 (black), BKT4PLL-4 (Helvetia white), BKT4PL0-1 / -3. Frames FO71A01-2M / FO71A01-3M, FOXXA01-7171 / -7171S; cover plates PO71A01PL-1 / -3 / -4, PO71A03PL-1 / -3, PO71A71PL-1 / -3 / -4, PO71S01PL-1 / -3 / -4; accessories SFBOA17-1 / -3 / -4, SFBOA25-1 / -3 / -4.
