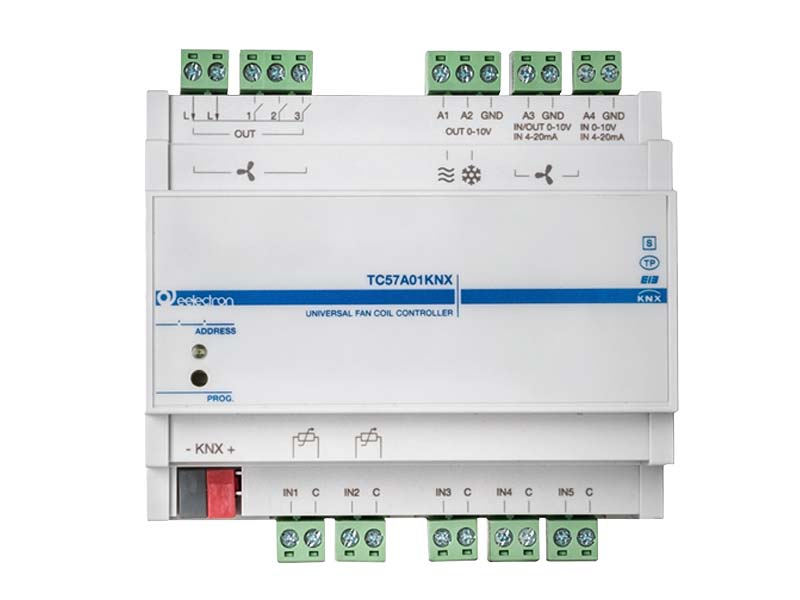

The Eelectron TC57A01KNX is a universal KNX fan coil controller for the panel, with 3 x 0–10 V analog outputs and 3 relays rated 16 A at 230 V AC, 5 dry-contact inputs and two internal 2-stage PI control loops. Two 0–10 V outputs drive proportional valves; fan speed can be modulated through the third 0–10 V output (EC motors) or stepped through the three relays, and relays not used for speeds are free for lights or other loads.

A dedicated 0–10 V / 4–20 mA input reads external temperature, humidity or CO₂ transmitters, and the third 0–10 V output can be switched to input mode as well, while two of the five digital inputs accept NTC probes. The control logic supports 2-pipe and 4-pipe units with independent regulation differentials for valves and speeds, anti-stratification ventilation and comfort/energy-saving strategies, plus the Virtual Holder occupancy logic for hotel rooms and 10 logic blocks. It is the controller of choice for hospitality and office fan coil units with proportional valves.

Key Features

  • 3 x 0–10 V outputs, galvanically isolated, ±5 %, 2.5 mA per output at 10 kΩ (7.5 mA total)
  • 3 relay outputs 16 A cos φ 1 at 230 V AC for fan speeds or general loads; 30 A total up to 40 °C, 26 A at 40–45 °C
  • One 0–10 V / 4–20 mA input (galvanically isolated) for external sensors; output 3 can also be configured as an input
  • 5 dry-contact digital inputs for buttons, window contacts and alarms; 2 of them usable as NTC probe inputs (TS01A01ACC / TS01B01ACC)
  • 2 thermostat control loops with 2-stage PI algorithm for 2-pipe and 4-pipe fan coils; independent differentials for valves and speeds
  • Anti-stratification ventilation and energy-saving comfort logic
  • 10 logic blocks with logical, threshold, algebraic and conditional operators; proportional control and dew-point algorithms
  • Virtual Holder logic for hotel-room presence detection
  • Built-in installer test routine to verify relay and 0–10 V wiring from the KNX button
  • 6-module PC-GF DIN housing; 250 group addresses / 250 associations

Technical Specifications

Power supply Via KNX bus, 21–32 V DC (SELV)
Current consumption ≤ 25 mA at 24 V DC; ≤ 30 mA for 50 ms during relay switching
0–10 V outputs 3; tolerance ±5 %; galvanic isolation; 2.5 mA rated per output at 10 kΩ; 7.5 mA max for all outputs
Analog input 1 x 0–10 V or 4–20 mA loop input, galvanically isolated (plus output 3 configurable as input)
Relay outputs 3 x 16 A cos φ 1 at 230 V AC; min switching current 100 mA / 5 V; max 16 A per relay
Max current for 3 relays 30 A from -5 to +40 °C; 26 A from 40 to 45 °C
Max peak current 100 A
Load limits Incandescent 10 A; fluorescent 3 A (700 W); electronic ballast 2 A; check LED driver inrush
Inputs (digital mode) 5 dry-contact inputs; scanning voltage 3.3 V DC; max cable 30 m (98 ft) twisted
Inputs (analog mode) 2 inputs for NTC TS01A01ACC (-20 to +100 °C) or TS01B01ACC (-50 to +60 °C); max cable 30 m (98 ft)
Thermostat loops / logic blocks 2 / 10
Terminals Max 4.0 mm² solid / 2.5 mm² stranded
Group addresses / associations 250 / 250
Mounting DIN rail, 6 modules; LV distribution switchboard
Enclosure PC-GF, IP20 (EN 60529)
Operating temperature -5 °C to +45 °C (23 °F to 113 °F)
Storage temperature -20 °C to +55 °C (-4 °F to 131 °F)
Relative humidity max 90 % non-condensing, indoor use
Standards EN 63044-3; EN 63044-5-1 / EN 63044-5-2; EN 50491-2; LVD 2014/35/EU; EMC 2014/30/EU
Certifications KNX certified; CE
ETS application TC57A01KNX fan coil controller application
Weight (net) 0.25 kg (0.55 lb)
Manufacturer part no. / GTIN TC57A01KNX / 8054144521916

Related Products

Sibling: TC57B01KNX (4 x 0–10 V, outputs 3/4 switchable to inputs). Compact secure version: TC28A01KNX (3 x 0–10 V, 5 relays, compensation curve, 4 modules). Thermoelectric valve control: HA04A01KNX / HA08A01KNX / HA88B01KNX. Accessories: TS01A01ACC / TS01B01ACC probes.
