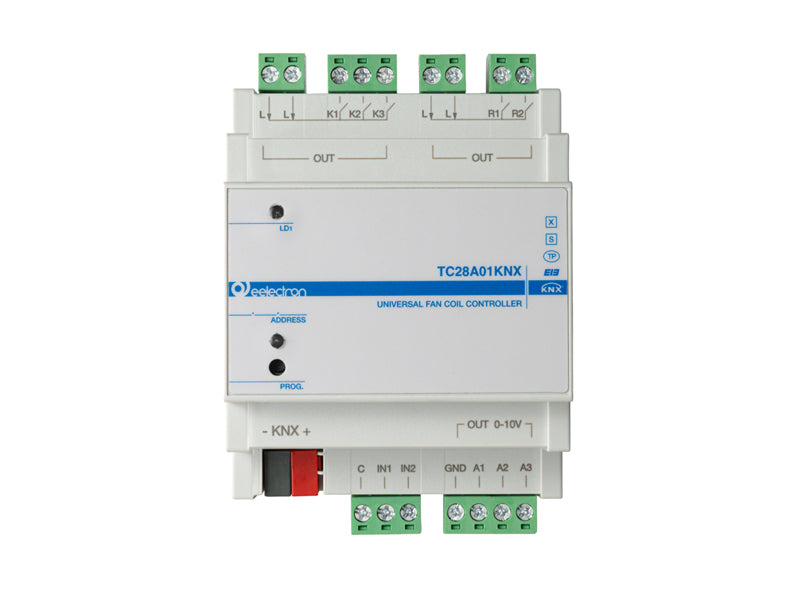

Eelectron TC28A01KNX KNX Universal Fan Coil Actuator Triple, 2 binary inputs, 3 x 0-10 V
Eelectron TC28A01KNX KNX Universal Fan Coil Actuator Triple, 2 binary inputs, 3 x 0-10 V

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eelectron

Eelectron TC28A01KNX KNX Universal Fan Coil Actuator Triple, 2 binary inputs, 3 x 0-10 V

SKU: TC28A01KNX
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
⚡ Mains Voltage · No US Cert
This device operates with or switches mains voltage (120/240VAC) and has not been certified by an NRTL. USA installation requires a Field Evaluation by a recognized laboratory and explicit AHJ approval.
$306.90 USD
-27% $418.88 USD $306.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The Eelectron TC28A01KNX is a compact KNX Secure fan coil controller: 3 x 0–10 V outputs and 5 relays rated 16 A, all freely assignable, plus 2 inputs, in only 4 DIN modules. In a typical application two 0–10 V outputs modulate proportional valves and the third drives an EC fan, while the five relays cover stepped speeds, valves or lighting as needed; whatever is not used for HVAC can switch other loads.

The two inputs take pushbuttons, window contacts or alarms, or NTC probes (TS01A01ACC, TS01B01ACC, TS01C01ACC, TS01D01ACC); input 1 can alternatively host the SM03E03ACC plug-in (temperature, humidity, CO₂, VOC) or SM03E02ACC sensor. Two 2-stage PI thermostats drive heating, cooling, 6-way valves and 2/4-pipe fan coils, and a compensation-curve function adjusts supply temperature to outdoor conditions. With 8 logic blocks, the Virtual Holder occupancy logic and KNX Data Secure, it is the current-generation choice for hotel and office fan coil zones.

Key Features

  • 3 x 0–10 V outputs (galvanically isolated, ±5 %, 2.5 mA each, 7.5 mA total) for proportional valves and EC fans
  • 5 relays 16 A cos φ 1 at 230 V AC: K1–K3 group max 30 A, R1–R2 group max 25 A; usable for speeds, valves or lighting
  • 2 digital inputs for buttons, window contacts or alarms, both configurable as NTC analog inputs
  • Probe compatibility: TS01A01ACC (-20 to +100 °C), TS01B01ACC (-50 to +60 °C), TS01C01ACC (-40 to +105 °C), TS01D01ACC (-5 to +45 °C)
  • Input 1 alternatively a plug-in sensor port for SM03E03ACC (T/RH/CO₂/VOC) or SM03E02ACC (T/VOC/eCO₂)
  • 2 two-stage PI thermostats for heating, cooling, valves, 6-way valves and 2/4-pipe fan coils
  • Compensation (climatic) curve: supply temperature adjusted to external conditions
  • KNX Data Secure; 8 logic blocks; Virtual Holder occupancy logic for hospitality
  • Installer test routine for all 5 relays and 3 analog outputs from the KNX button
  • 4-module PC-GF DIN housing; 360 group addresses / 420 associations

Technical Specifications

Power supply Via KNX bus, 21–32 V DC (SELV)
Current consumption ≤ 25 mA at 24 V DC; ≤ 30 mA for 50 ms during relay switching
0–10 V outputs 3; tolerance ±5 %; galvanic isolation; 2.5 mA per output at 10 kΩ; 7.5 mA total
Relay outputs 5 x 16 A cos φ 1 at 230 V AC; min switching current 100 mA / 5 V
Max total relay current 30 A on K1–K3; 25 A on R1–R2
Max peak current 100 A
Load limits Incandescent 8 A; fluorescent 3 A (700 W); electronic ballast 2 A; check LED driver inrush
Inputs (digital mode) 2 dry-contact inputs; scanning voltage 3.3 V DC; max cable 30 m (98 ft) twisted
Inputs (analog mode) NTC TS01A01ACC / TS01B01ACC / TS01C01ACC / TS01D01ACC; max cable 30 m (98 ft) twisted; input 1 alternatively plug-in sensor
Thermostat loops / logic blocks 2 / 8
Terminals Max 4.0 mm² solid / 2.5 mm² stranded
Group addresses / associations 360 / 420
Mounting DIN rail, 4 modules; LV distribution switchboard
Enclosure PC-GF, IP20 (EN 60529)
Operating temperature -5 °C to +45 °C (23 °F to 113 °F)
Storage temperature -20 °C to +55 °C (-4 °F to 131 °F)
Relative humidity max 90 % non-condensing, indoor use
Standards EN 63044-3; EN 63044-5-1 / EN 63044-5-2; EN 50491-2; LVD 2014/35/EU; EMC 2014/30/EU
Certifications KNX certified; CE
ETS application TC28A01KNX application with KNX Data Secure
Weight (net) 0.28 kg (0.62 lb)
Manufacturer part no. / GTIN TC28A01KNX / 8054144521916

Related Products

Larger fan coil controllers with 5 inputs: TC57A01KNX (3 x 0–10 V) and TC57B01KNX (4 x 0–10 V). Thermoelectric valves: HA04A01KNX / HA08A01KNX / HA88B01KNX. Accessories: NTC probes TS01A01ACC, TS01B01ACC, TS01C01ACC (metal case), TS01D01ACC; plug-in sensors SM03E03ACC / SM03E02ACC.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
