Eelectron SO08L02KNX-3 KNX Touch Sensor LITE 8-fold – black
Eelectron SO08L02KNX-3 KNX Touch Sensor LITE 8-fold – black

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eelectron

Eelectron SO08L02KNX-3 KNX Touch Sensor LITE 8-fold – black

SKU: SO08L02KNX-3
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$174.90 USD
-8% $190.40 USD $174.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

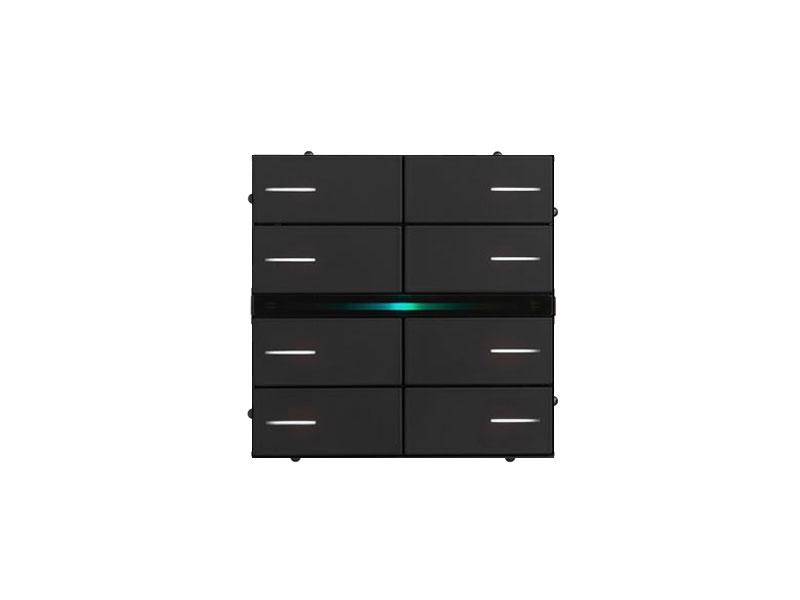

The Eelectron SO08L02KNX-3 is the OL-U LITE KNX wall switch with 8 mechanical buttons (16 channels) in black. It is the pre-assembled, fixed-finish member of the OL-U family: keys are fitted at the factory, LEDs are white, the central bar is a static RGB indicator rather than a swipe sensor, and the matching unpainted PO71 "RP" cover frame completes it. The result is the OL-U form factor and ETS application at a price point that works for hotel floors, student housing, multi-family and office fit-outs.

Every key is assigned in ETS: on/off, dimming, shutters and blinds, scenes, sequences, thermostat setpoint and mode, or any other KNX function. The thermostat has a PI controller for heating and cooling with valves, 6-way valves and 2- or 4-pipe fan coils, fed by the on-board temperature sensor; 32 logic blocks cover logical, threshold, algebraic and conditional expressions plus proportional control and dew-point calculation.

For hospitality the device carries Eelectron's Virtual Holder logic: a magnetic door contact on a digital input, combined with other sensors on the bus, lets the device infer whether the room is really occupied and tell unexpected presence from a guest's return, which does the job of a keycard holder. The device supports KNX Data Secure and includes the bus coupler.

It mounts on a 2- or 3-module box (Italian 502/503, German, British or Swiss) via the FO71A01 metal frame, and the OL-U plate system lets neighbouring receptacles share the same finish.

Key Features

  • 8 mechanical buttons / 16 channels, each freely configurable in ETS
  • One white LED per key, central RGB bar (non-capacitive, no gestures)
  • Two-stage thermostat with PI controller: heating, cooling, valves, 6-way valves, 2- and 4-pipe fan coils
  • On-board temperature sensor, -5 to +55 °C, 0.01 °C resolution, ±0.5 °C typical
  • 32 logic blocks: logical/threshold expressions, algebraic and conditional operators, proportional control, dew-point calculation
  • Virtual Holder logic for hotel-room presence from a door contact and bus sensors
  • KNX Data Secure capable; bus coupler included; 600 group addresses, 700 associations
  • Delivered pre-assembled with keys; finish with PO71A01RP-x / PO71A03RP-x raw-plastic cover frame
  • Mounts on 2- or 3-module flush boxes via FO71A01-2M / -3M metal frame; Italian, German, British and Swiss standards

Technical Specifications

Power supply Via KNX bus, 21–32 V DC
Current consumption max 30 mA
Buttons / channels 8 mechanical buttons / 16 channels
Indicators white LED per key + RGB bar
Thermostat 2-stage with PI controller; heating/cooling, valves, 6-way valves, 2- and 4-pipe fan coils
Temperature sensor -5 to +55 °C (23 to 131 °F), resolution 0.01 °C, tolerance ±0.5 °C typ.
Logic 32 logic blocks; Virtual Holder logic
Group addresses / associations 600 / 700
Mounting Flush-mounted 2- or 3-module wall box via FO71A01 metal frame
Enclosure PC-ABS plastic, IP20 (EN 60529)
Device dimensions 71 x 71 x 25 mm (2.80 x 2.80 x 0.98 in)
Cover frame size (not included) 2-module 92 x 92 x 11 mm (3.62 x 3.62 x 0.43 in); 3-module 130 x 92 x 11 mm (5.12 x 3.62 x 0.43 in)
Operating temperature -5 to +45 °C (23 to 113 °F); storage -20 to +70 °C; RH max 90% non-condensing
Device weight approx. 53 g (0.12 lb); packed 0.13 kg (0.29 lb)
Standards EN 63044-3, EN 63044-5-1, EN 63044-5-2, EN 50491-2; LVD 2014/35/EU, EMC 2014/30/EU
Certification KNX certified; KNX Data Secure
ETS application Eelectron ETS application (download from eelectron.com)
Scope of delivery Device, KNX bus terminal, pair of fixing screws — keys pre-fitted
Manufacturer part no. / GTIN SO08L02KNX-3 / 8054144523071

Related Products

LITE siblings: SO08L02KNX-1 (white), SO04L02KNX-1 / -3 (4 buttons). Full-feature version: SO08A01KNX. Cover frames: PO71A01RP-3 (2-module), PO71A03RP-3 (3-module); matching Lite socket frames PO45A01RP-3, PO45A03RP-3, PO55A01RP-3. Metal mounting frames: FO71A01-2M, FO71A01-3M (10-packs FO71A02-2M / -3M). Surface boxes: SFBOA17-3, SFBOA25-3. Companion OL-U devices: TO04A01KNX thermostat, HO04A01KNX humidistat, MO04A01KNX-x multisensor.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.

Datasheet (PDF) · Available to order.
