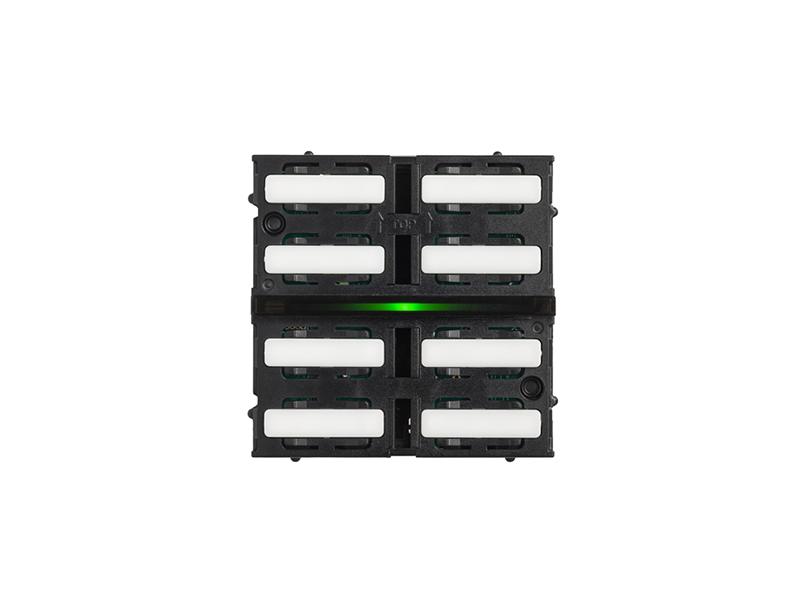

Eelectron SO08A01KNX KNX Touch Sensor LITE 8-way, 3-module – white

The Eelectron SO08A01KNX is the flagship OL-U KNX wall switch: 8 mechanical buttons giving 16 channels, each key with its own RGB LED, a capacitive swipe bar across the centre and a built-in two-stage room thermostat. It is sold as bare hardware — the key set and cover frame are chosen separately from the FENIX, Metal and painted-plastic editions — so a single device part number serves every interior scheme in a hotel, office or residence.

Every key is assigned in ETS: on/off, dimming, shutters and blinds, scenes, sequences, thermostat setpoint and mode, or any other KNX function. The thermostat has a PI controller for heating and cooling with valves, 6-way valves and 2- or 4-pipe fan coils, fed by the on-board temperature sensor; 32 logic blocks cover logical, threshold, algebraic and conditional expressions plus proportional control and dew-point calculation.

For hospitality the device carries Eelectron's Virtual Holder logic: a magnetic door contact on a digital input, combined with other sensors on the bus, lets the device infer whether the room is really occupied and tell unexpected presence from a guest's return, which does the job of a keycard holder. The device supports KNX Data Secure and includes the bus coupler. The swipe bar reads quick swipes (scene recall), slow swipes (dimming, setpoint, colour), single tap, double tap and long press.

It mounts on a 2- or 3-module box (Italian 502/503, German, British or Swiss) via the FO71A01 metal frame, and the OL-U plate system lets neighbouring receptacles share the same finish.

Key Features

• 8 mechanical buttons / 16 channels, each freely configurable in ETS
• One RGB LED per key (brightness and colour programmable) plus capacitive RGB swipe bar with quick/slow swipe, tap, double-tap and long-press gestures
• Two-stage thermostat with PI controller: heating, cooling, valves, 6-way valves, 2- and 4-pipe fan coils
• On-board temperature sensor, -5 to +55 °C, 0.01 °C resolution, ±0.5 °C typical
• 32 logic blocks: logical/threshold expressions, algebraic and conditional operators, proportional control, dew-point calculation
• Virtual Holder logic for hotel-room presence from a door contact and bus sensors
• KNX Data Secure capable; bus coupler included; 600 group addresses, 700 associations
• Bare hardware: choose BKxx key set (FENIX, metal, painted plastic) and PO71 cover frame separately
• Mounts on 2- or 3-module flush boxes via FO71A01-2M / -3M metal frame; Italian, German, British and Swiss standards

Technical Specifications

Related Products

Key sets: BK04 / BK08 / BK24 / BK42 in FENIX (FX-0030, -0032, -0720, -0724, -0748, -0754), metal (MT-SH) or painted plastic (PLL-1, -3, -4), raw opaline BK08PLR. Cover frames: PO71A01xx (2-module), PO71A03xx (3-module), doubles PO71A71xx / PO71A55xx / PO71A45xx / PO71A60xx, triple PO71T55PL-x. Metal mounting frames: FO71A01-2M, FO71A01-3M, FOXXA01-7171, FOXXA01-71XX. Surface boxes SFBOA17-x / SFBOA25-x. LITE versions: SO04L02KNX-1 / -3, SO08L02KNX-1 / -3. Companion OL-U devices: TO04A01KNX thermostat, HO04A01KNX humidistat, MO04A01KNX-x multisensor.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.

Datasheet (PDF) · Available to order.
