Eelectron SA04K01KNX KNX blind actuator 24 V 4-fold

SKU: SA04K01KNX
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$391.90 USD
-8% $427.84 USD $391.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

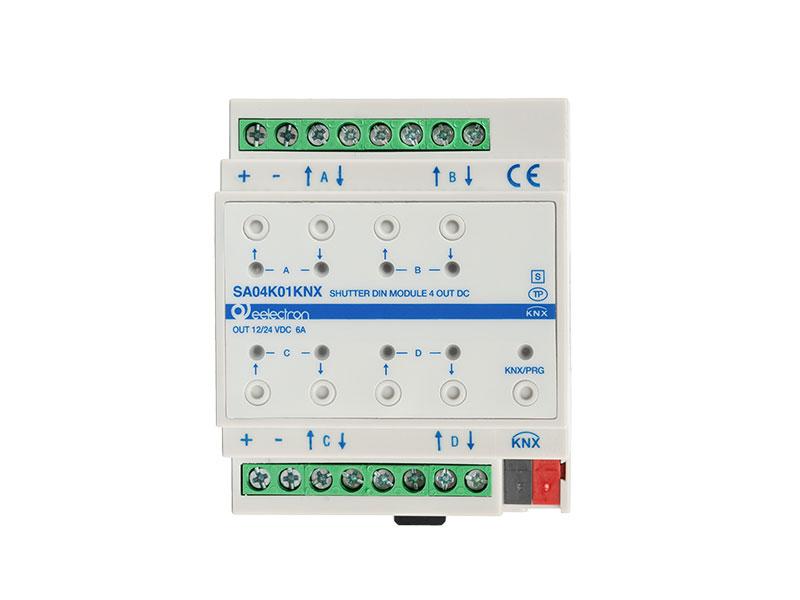

The Eelectron SA04K01KNX is a 4-channel KNX shutter and blind actuator for 24 V DC motors, a low-voltage alternative to mains shutter actuators that suits interior roller shades, venetian blinds and screens driven by 24 V motors in offices, hotels and residences. Each channel has its own 24 V supply input and two directional outputs rated 6 A, so motors are powered from an external SELV supply and only the control intelligence sits on the KNX bus.

The application provides true height and slat positioning from configured travel times, presets, scenes, a façade-control module for sun tracking across multiple elevations, alarms, timers and defined bus-failure and bus-recovery behavior. Front pushbuttons with status LEDs give manual up/down/stop per channel during commissioning. The device is delivered with bus connector and protection cap.

Key Features

  • 4 shutter/blind channels for 24 V DC motors with separate supply inputs per channel; 6 A rated per channel
  • True height and slat positioning, central move, presets, counters and scene control
  • Façade control module with up/down, position and slat objects for shading automation
  • Analog and digital alarms, timers with cyclic remaining-time feedback, disable function, internal variables
  • Logic functions, setpoints, overwrite of end-user parameters and configurable behavior at bus recovery
  • Manual control per channel: long press moves, short press stops/steps; status LEDs per direction
  • Output life > 5 x 10⁶ mechanical / > 1 x 10⁵ electrical cycles at 10 A
  • Bus-powered (9.4 mA); 4-module ABS V0 DIN housing, 70 x 58 x 90 mm; approx. 235 g
  • Requires ETS 5 or later (ETS 4 application available per datasheet)

Technical Specifications

Power supply Via KNX bus, 21–30 V DC
Current consumption 9.4 mA max
Outputs 4 DC shutter channels with separated supply inputs; up/down per channel
Rated operational voltage (shutter) 24 V DC (family page: 12–24 V / 24 V AC/DC per datasheet text)
Rated current per channel 6 A; load type 24 V DC motor
Output life Mechanical > 5 x 10⁶ operations; electrical > 1 x 10⁵ cycles at 10 A
Connections KNX bus terminal 0.8 mm solid; screw terminals max 6 mm² solid, 0.6 Nm max torque
Mounting 35 mm DIN rail, 4 modules (REG 4TE)
Enclosure ABS V0, IP20; protection class III; overvoltage category III; pollution degree 2
Dimensions 70 x 58 x 90 mm (2.76 x 2.28 x 3.54 in)
Operating temperature -5 °C to +45 °C (23 °F to 113 °F)
Storage temperature -25 °C to +55 °C (-13 °F to 131 °F)
Relative humidity max 93 % non-condensing, indoor dry locations
Standards EN 63044-5-1 / EN 63044-5-2; EN 50491-2; EMC 2014/30/EU
Certifications KNX certified; CE
Scope of delivery Actuator, KNX bus connector, KNX protection cap
ETS application SA04K01KNX shutter actuator application, ETS 4 or later
Weight (net) 0.25 kg (0.55 lb)
Manufacturer part no. / GTIN SA04K01KNX / 8054144522944

Related Products

Mains-voltage shutter switching in the same series: BO04K01KNX, BO08K01KNX, BO12K01KNX (relay pairs for 230 V motors). F-series alternatives with inputs: IO04F01KNX / IO08F01KNX. A separate 24 V DC motor supply is required; KNX line power from PS00D03KNX.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.

Datasheet (PDF) · Available to order.
