Eelectron RT07A01KNX-1 KNX room temperature controller standard – white

SKU: RT07A01KNX-1
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$219.90 USD
-8% $239.68 USD $219.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

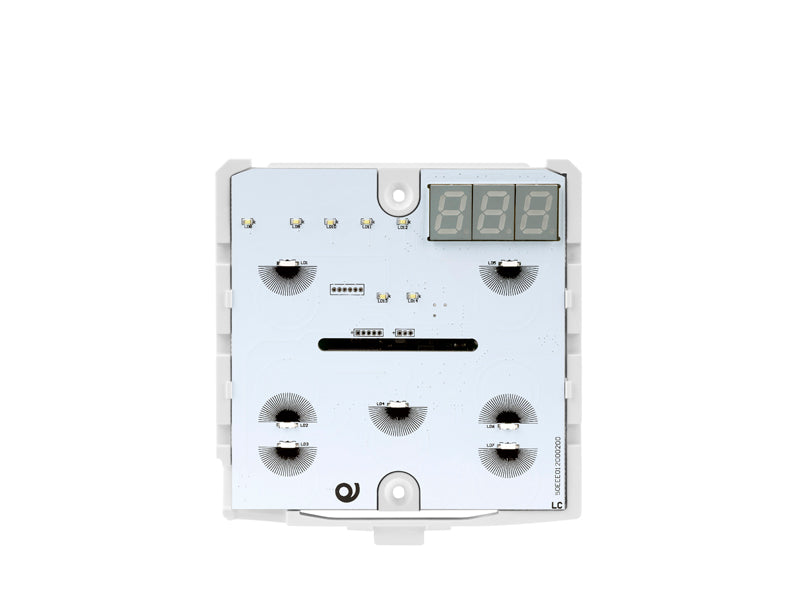

The Eelectron RT07A01KNX-1 is the 2-module KNX room temperature controller hardware of the 9025 capacitive series in white. It is the electronics module that sits in a 2-module flush box behind one of the 9025 glass covers (ordered separately) and provides 7 capacitive touch buttons, an RGB LED bar, an on-board temperature sensor and a 2-stage PI thermostat — a flat, glass-fronted room controller for hotel rooms, residences and offices that is operated through icons on the glass.

The 7 capacitive buttons are freely configured in ETS for on/off, dimming, shutters and venetian blinds, scene recall and learning, object sequences and local thermostat commands (set-point, mode, fan speed). The thermostat drives heating and cooling equipment, valves and 2-/4-pipe fan coils; a rear 2-pole input accepts a dry contact or an Eelectron NTC probe for a second temperature measurement. The RGB LED bar shows operating mode, feedback or any bus value. Glass covers are available in Hotel (-H) and Residential (-R) layouts, gloss or matte, with custom backlit icon sets on the CUSTOM versions. The black version is RT07A01KNX-3.

Key Features

  • 7 configurable capacitive buttons: on/off, dimming, shutters/venetian blinds, scene recall and learning, object sequences, local thermostat controls
  • Integrated 2-stage thermostat with PI controller for heating/cooling equipment, valves, 2- and 4-pipe fan coils
  • On-board temperature sensor, −5…+55 °C, 0.01 °C resolution
  • Rear 2-pole input configurable as digital (dry contact, ≤ 10 m) or analog for NTC probes TS01A01ACC / TS01B01ACC / TS01C01ACC / TS01D01ACC (≤ 30 m)
  • Front RGB LED bar to display thermostat modes, feedback, anomalies or other KNX values
  • Works with 9025 glass covers in Hotel or Residential layout; CUSTOM glass versions backlight interchangeable icons (9025ISA…ISF icon sets)
  • Economy mode reduces bus current to max. 12 mA
  • 2-module installation (96 × 96 × 36 mm (3.8 × 3.8 × 1.4 in)); compliant with Italian, German and British box standards
  • KNX communication interface included; 250 group addresses / 250 associations
  • Finish: white hardware (glass cover ordered separately in matching colour)

Technical Specifications

Power supply Via KNX bus, 21–32 V DC (SELV)
Current consumption Max. 20 mA at 29 V / 24 mA at 21 V; economy mode max. 12 mA at 29 V
Rear input – digital mode 1 input for dry contacts; scanning voltage 3.3 V DC; max. cable length 10 m (33 ft), twisted
Rear input – analog mode NTC probe TS01A01ACC (−20…+100 °C), TS01B01ACC (−50…+60 °C), TS01C01ACC (−40…+105 °C) or TS01D01ACC (−5…+45 °C); max. cable 30 m (98 ft)
Temperature sensor −5…+55 °C (23…131 °F); resolution 0.01 °C; tolerance typ. ±0.5 °C
Controls 7 capacitive buttons; RGB LED bar
Thermostat 2-stage with integrated PI controller
Mounting Flush wall box, 2-module
Dimensions (W × H × D) 96 × 96 × 36 mm (3.8 × 3.8 × 1.4 in)
Weight 0.13 kg (0.29 lb) (datasheet: approx. 130 g, 220 g with glass)
Group addresses / associations 250 / 250
Enclosure / protection PC-ABS; IP20 (EN 60529)
Operating temperature −5…+45 °C (23…113 °F); storage −20…+55 °C; max. 90 % RH non-condensing; indoor, dry places
Standards EN 63044-3; EN 63044-5-1 / -5-2; EN 50491-2; LVD 2014/35/EU; EMC 2014/30/EU; KNX certified
Finish White
ETS application Eelectron Rx07A01KNX application (download from eelectron.com)
Manufacturer part no. / GTIN RT07A01KNX-1 / 8054144521756

Related Products

RT07A01KNX-3 (same hardware in black). Thermostat/humidistat version: RH07A01KNX-1 / -3. Glass covers for this 2-module hardware: 9025GT07B01 / B03 and 9025GT07D01 / D03 (standard and custom double glass), 9025GT07L01 / L03 (LINE RGB gloss), 9025GT07LM1 / LM3 (LINE matte), 9025GT07W01 / W03 (LINE custom icons), each in -H hotel or -R residential layout. Icon sets for CUSTOM glass: 9025ISA-1/-3 … 9025ISF-1/-3. Probes: TS01A04ACC, TS01B04ACC, TS01C01ACC, TS01D01ACC-1 / -3. 3-module version: RT07A01KNX-1-3M / RT07A01KNX-3-3M.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
