Eelectron RH07A01KNX-3 KNX room temperature controller humidity – black

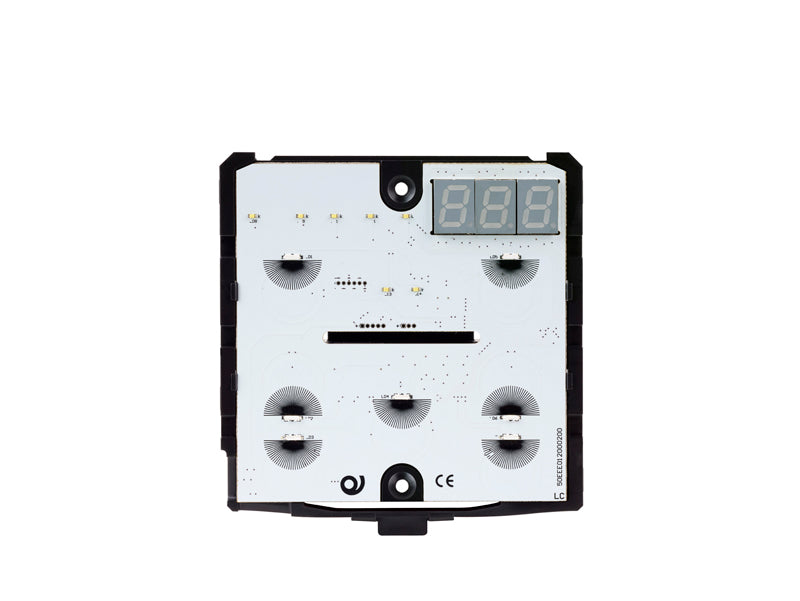

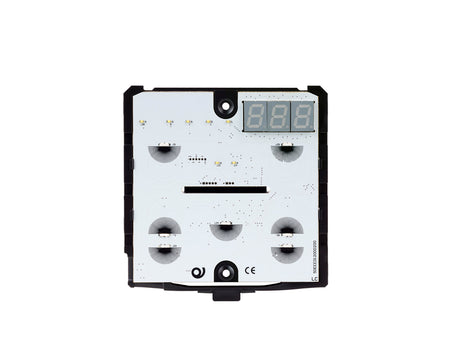

The Eelectron RH07A01KNX-3 is the 2-module KNX room temperature controller with integrated humidity sensor (thermostat/humidistat) hardware of the 9025 capacitive series in black. It is the electronics module that sits in a 2-module flush box behind one of the 9025 glass covers (ordered separately) and provides 7 capacitive touch buttons, an RGB LED bar, an on-board temperature sensor plus a relative-humidity sensor and a 2-stage PI thermostat — a flat, glass-fronted room controller for hotel rooms, residences and offices that is operated through icons on the glass.

The 7 capacitive buttons are freely configured in ETS for on/off, dimming, shutters and venetian blinds, scene recall and learning, object sequences and local thermostat commands (set-point, mode, fan speed). The thermostat drives heating and cooling equipment, valves and 2-/4-pipe fan coils; a rear 2-pole input accepts a dry contact or an Eelectron NTC probe for a second temperature measurement. The humidity channel controls humidification and dehumidification actuators with thresholds and hysteresis. The RGB LED bar shows operating mode, feedback or any bus value. Glass covers are available in Hotel (-H) and Residential (-R) layouts, gloss or matte, with custom backlit icon sets on the CUSTOM versions. The white version is RH07A01KNX-1.

Key Features

• 7 configurable capacitive buttons: on/off, dimming, shutters/venetian blinds, scene recall and learning, object sequences, local thermostat controls
• Integrated 2-stage thermostat with PI controller for heating/cooling equipment, valves, 2- and 4-pipe fan coils
• On-board temperature sensor, −5…+55 °C, 0.01 °C resolution, plus relative-humidity sensor for humidification / dehumidification control with thresholds and hysteresis
• Rear 2-pole input configurable as digital (dry contact, ≤ 10 m) or analog for NTC probes TS01A01ACC / TS01B01ACC / TS01C01ACC / TS01D01ACC (≤ 30 m)
• Front RGB LED bar to display thermostat modes, feedback, anomalies or other KNX values
• Works with 9025 glass covers in Hotel or Residential layout; CUSTOM glass versions backlight interchangeable icons (9025ISA…ISF icon sets)
• Economy mode reduces bus current to max. 12 mA
• 2-module installation (96 × 96 × 36 mm (3.8 × 3.8 × 1.4 in)); compliant with Italian, German and British box standards
• KNX communication interface included; 250 group addresses / 250 associations
• Finish: black hardware (glass cover ordered separately in matching colour)

Technical Specifications

Related Products

RH07A01KNX-1 (same hardware in white). Thermostat-only version: RT07A01KNX-1 / -3. Glass covers for this 2-module hardware: 9025GT07B01 / B03 and 9025GT07D01 / D03 (standard and custom double glass), 9025GT07L01 / L03 (LINE RGB gloss), 9025GT07LM1 / LM3 (LINE matte), 9025GT07W01 / W03 (LINE custom icons), each in -H hotel or -R residential layout. Icon sets for CUSTOM glass: 9025ISA-1/-3 … 9025ISF-1/-3. Probes: TS01A04ACC, TS01B04ACC, TS01C01ACC, TS01D01ACC-1 / -3. 3-module version: RH07A01KNX-1-3M / RH07A01KNX-3-3M.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.

Datasheet (PDF) · Available to order.
