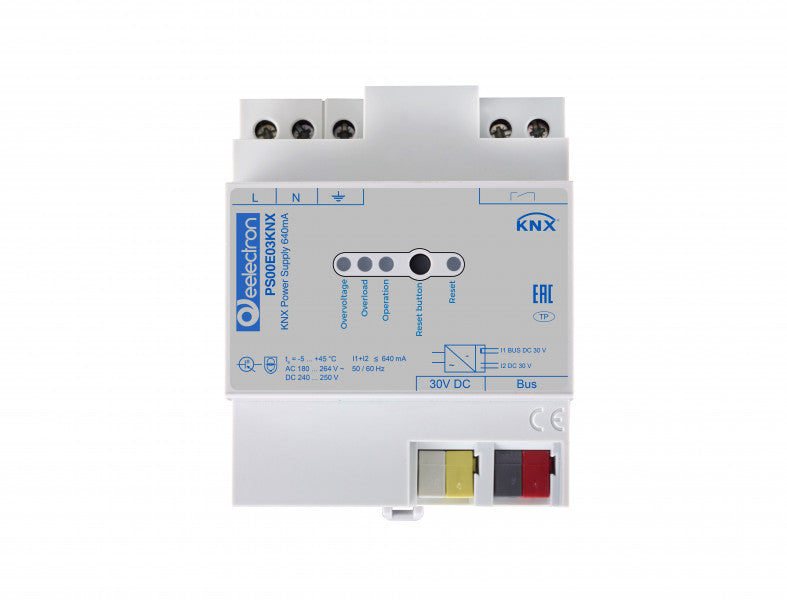

Eelectron PS00E03KNX KNX Power Supply Unit 640 mA, with diagnostic contact
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
⚡
Mains Voltage · No US Cert
This device operates with or switches mains voltage (120/240VAC) and
has not been certified by an NRTL. USA installation requires a Field
Evaluation by a recognized laboratory and explicit AHJ approval.
Regular price
$269.90 USD
Regular price
-27%
$368.48 USD
Sale price
$269.90 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The Eelectron PS00E03KNX is a 640 mA KNX power supply with an isolated signalling contact, intended for panels where a BMS, PLC or alarm input must know that the KNX line is healthy. The contact (12–230 V AC / 2–30 V DC, 5 mA to 2 A) follows the overload and overvoltage state shown on the front LEDs, and the 1.5 A short-circuit limit protects the line.
The supply accepts 180–264 V AC or 240–250 V DC, runs at 87 % efficiency with only 2.9 W dissipation, keeps the bus between 28 and 31 V across all outputs and offers several reset modes from the front. It occupies 4 DIN modules (72 mm) and needs no ETS application.
The signalling contact is typically wired to a digital input of the building management system or to an alarm module so that bus overload or overvoltage is reported immediately; it can also drive a panel indicator lamp. The DC input option allows the unit to run from a battery-backed 240 to 250 V DC distribution in installations with central backup power. Installation is by a licensed electrician on a dedicated breaker, with the KNX output wired through the standard red/black bus terminal.
Key Features
- 640 mA total on all outputs, bus voltage 28–31 V DC SELV, integrated choke
- Mains input 180–264 V AC or 240–250 V DC
- Signalling contact 12–230 V AC / 2–30 V DC, 5 mA–2 A for overload/overvoltage reporting
- Short-circuit current limit 1.5 A
- Efficiency 87 %, dissipation 2.9 W
- LEDs for operation, overload and overvoltage; selectable reset modes
- 4-module (72 mm) DIN housing; no ETS application
Technical Specifications
| Power supply | 180–264 V AC, 50/60 Hz, or 240–250 V DC |
| Output | KNX bus 28–31 V DC SELV, 640 mA total on all outputs |
| Short-circuit current | 1.5 A |
| Efficiency / dissipation | 87 % / 2.9 W |
| Signalling contact | 12–230 V AC / 2–30 V DC; 5 mA–2 A |
| Indicators | Overload and overvoltage LEDs |
| Mounting | DIN rail, 4 modules (72 mm / 2.83 in) |
| Enclosure | IP20 (EN 60529) |
| Standards | EN 61558; EN 50491; LVD 2014/35/EU; EMC 2014/30/EU |
| Certifications | KNX certified; CE |
| ETS application | None |
| Weight (net) | 0.2 kg (0.44 lb) |
| Manufacturer part no. / GTIN | PS00E03KNX / 8054144521701 |
Related Products
Without signalling contact: PS00D03KNX (640 mA, AUX output) and PS00D04KNX (1280 mA). Supply with IP interface and device monitoring: IPSBA01KNX / IPSBA02KNX. Line surveillance: LM00B01KNX.
CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
