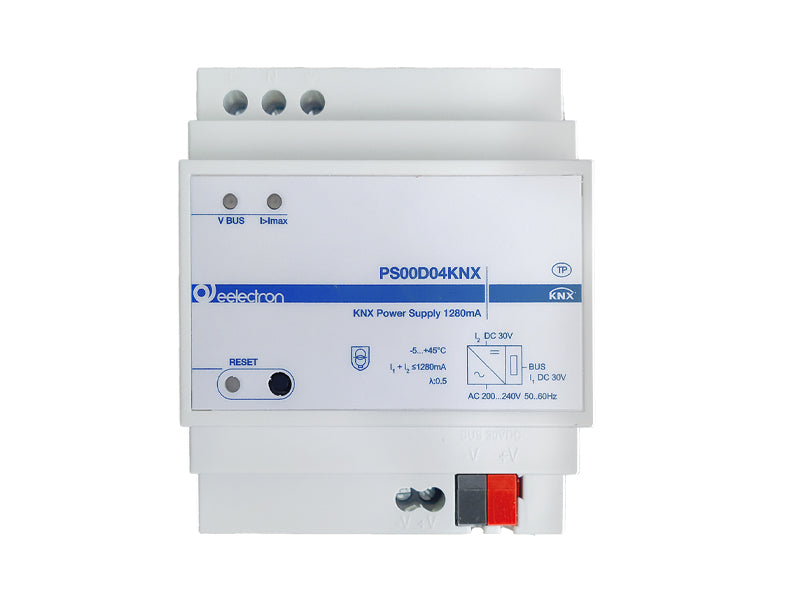

Eelectron PS00D04KNX KNX Power Supply Unit 1280 mA
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
⚡
Mains Voltage · No US Cert
This device operates with or switches mains voltage (120/240VAC) and
has not been certified by an NRTL. USA installation requires a Field
Evaluation by a recognized laboratory and explicit AHJ approval.
Regular price
$323.90 USD
Regular price
-27%
$441.28 USD
Sale price
$323.90 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The Eelectron PS00D04KNX is a 1280 mA KNX power supply with integrated choke for heavily loaded lines: large hotel floors, lines with many display panels or valve actuators, or segments where two 640 mA units would otherwise be needed. It delivers 30 V DC SELV to the bus, and two PS00D04KNX can share a line if placed at least 200 m apart.
The 4-module unit has LEDs for bus voltage and current level, a reset function, and is specified from -30 to +70 °C, so it can be installed in unheated technical rooms. Mains input is 180–264 V AC.
The higher output current allows a line to be fully populated with power-hungry participants such as room controllers with displays, valve actuators and IP devices without a second supply, and the current LEDs give an immediate indication of how much headroom remains. When two units are used on one line the 200 m separation keeps their internal chokes from interacting. As with every KNX supply, the unit should be installed by a licensed electrician and fed from a dedicated breaker in the distribution board.
Key Features
- 1280 mA KNX bus output, 30 V DC SELV, with integrated choke
- Mains input 180–264 V AC
- Two supplies per line, minimum 200 m (656 ft) apart
- LEDs for bus voltage and output current level; overload and short-circuit indication
- Bus reset function
- Wide operating range -30 to +70 °C
- 4-module DIN housing, approx. 295 g
Technical Specifications
| Power supply | 180–264 V AC, 50/60 Hz |
| Output | KNX bus 30 V DC SELV, 1280 mA |
| Parallel operation | 2 units per line, min. 200 m (656 ft) apart |
| Indicators | Bus voltage and current LEDs |
| Mounting | DIN rail, 4 modules (4 SU) |
| Enclosure | IP20 (EN 60529) |
| Operating temperature | -30 °C to +70 °C (-22 °F to 158 °F) |
| Standards | EN 61558; EN 50491; LVD 2014/35/EU; EMC 2014/30/EU |
| Certifications | KNX certified; CE |
| ETS application | None |
| Weight (net) | 0.3 kg (0.66 lb) |
| Manufacturer part no. / GTIN | PS00D04KNX / 8054144521695 |
Related Products
Standard lines: PS00D03KNX (640 mA with AUX output), PS00E03KNX (640 mA with signalling contact). Supply with IP interface: IPSBA01KNX / IPSBA02KNX. Couplers: LC00S01KNX, IN00S01RIP.
CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
Datasheet (PDF) · Available to order.
