Eelectron PS00D03KNX KNX Power Supply 640 mA
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
⚡
Mains Voltage · No US Cert
This device operates with or switches mains voltage (120/240VAC) and
has not been certified by an NRTL. USA installation requires a Field
Evaluation by a recognized laboratory and explicit AHJ approval.
Regular price
$218.90 USD
Regular price
-27%
$297.92 USD
Sale price
$218.90 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

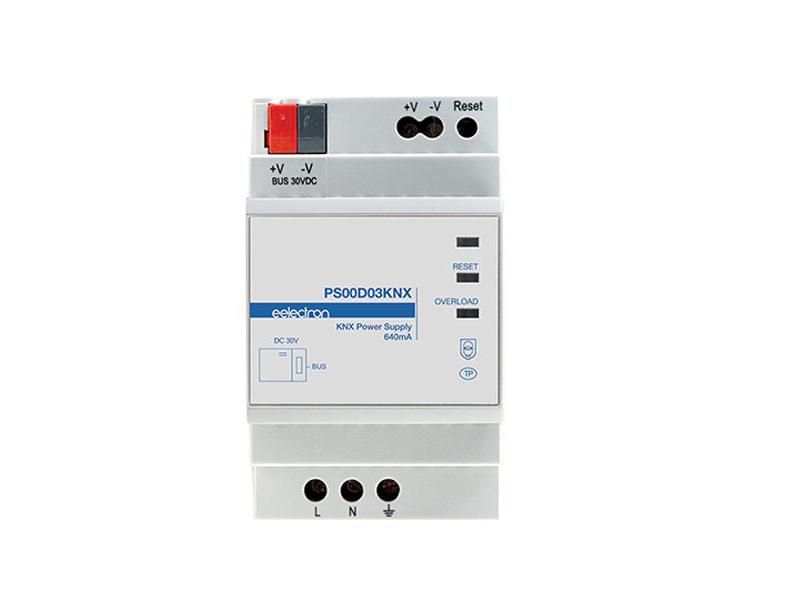

The Eelectron PS00D03KNX is a 640 mA KNX power supply with integrated choke and an additional 30 V DC auxiliary output, in a 3-module DIN housing. It powers one KNX TP line of up to 64 standard devices (or the equivalent load), keeps the line up for 200 ms through mains dips, and the AUX output can feed touch panels or other 30 V DC loads.
Two units may be connected in parallel on the same line with no minimum distance, the bus can be reset from the front for at least 20 s, and the supply accepts 180–264 V AC. LEDs show operation, overload and short circuit. It is the standard line supply for Eelectron panels in offices, hotels and residences.
Key Features
- 640 mA KNX bus output, 30 V DC SELV, with integrated choke
- Auxiliary 30 V DC output for other loads (total output 640 mA)
- Mains input 180–264 V AC; 200 ms backup on mains interruption
- Two supplies can run in parallel on one line, no minimum distance
- Bus reset button (≥ 20 s); LEDs for operation, overload, short circuit
- Max line length 350 m (1,150 ft) from the supply
- 3-module DIN housing, approx. 215 g; EN 61558 safety
Technical Specifications
| Power supply | 180–264 V AC, 50/60 Hz |
| Output | KNX bus 30 V DC SELV, 640 mA; auxiliary 30 V DC output |
| Backup time | 200 ms |
| Parallel operation | 2 units per line, no minimum distance |
| Line length | Max 350 m (1,150 ft) |
| Reset | Front button, bus reset ≥ 20 s |
| Mounting | DIN rail, 3 modules (3 SU) |
| Enclosure | IP20 (EN 60529) |
| Operating temperature | -5 °C to +50 °C (23 °F to 122 °F) |
| Storage temperature | -40 °C to +85 °C (-40 °F to 185 °F) |
| Standards | EN 61558; EN 50491; LVD 2014/35/EU; EMC 2014/30/EU |
| Certifications | KNX certified; CE |
| ETS application | None |
| Weight (net) | 0.21 kg (0.46 lb) |
| Manufacturer part no. / GTIN | PS00D03KNX / 8054144521688 |
Related Products
Larger lines: PS00D04KNX (1280 mA). Signalling-contact version: PS00E03KNX (640 mA). Supply with IP interface and diagnostics: IPSBA01KNX / IPSBA02KNX. Couplers: LC00S01KNX, IN00S01RIP.
CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
Datasheet (PDF) · Available to order.
