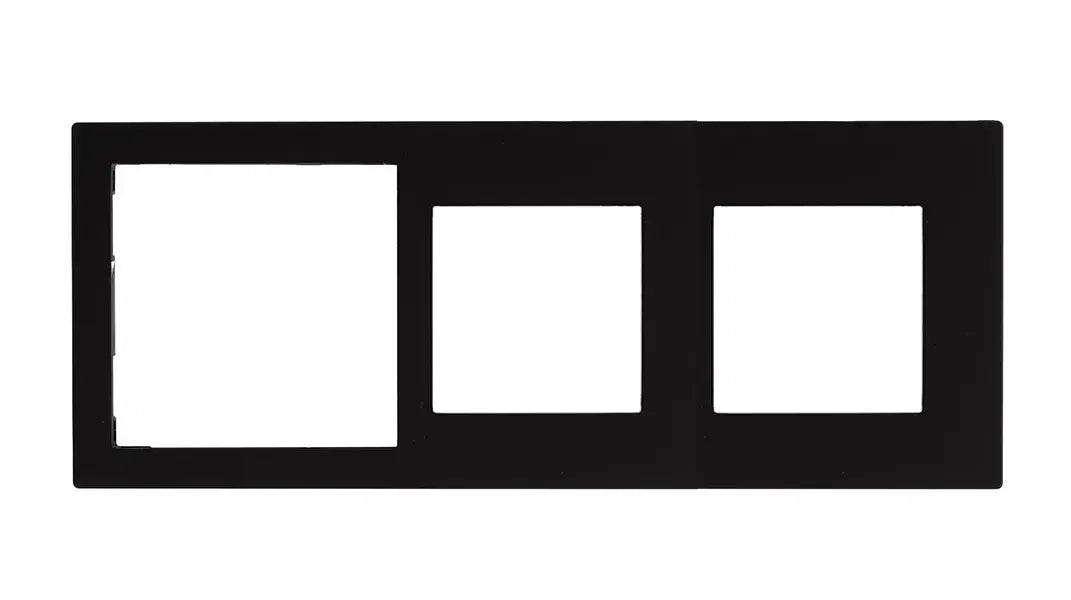

Eelectron PO71T55FX-0720 OL-U Triple Cover Frame 71+55+55 – FENIX Nero Ingo 0720
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$112.90 USD
Regular price
-8%
$123.20 USD
Sale price
$112.90 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The Eelectron PO71T55FX-0720 is the OL-U triple cover frame 71+55+55 in FENIX Nero Ingo 0720. It frames an OL-U keypad and two 55 x 55 mm receptacles or devices in one plate on three boxes at the standard 71 mm centre distance (Italian and German multi-gang practice), replacing three plates with one continuous 234 mm surface, and mounts on the FOXXT01-71XX metal frame — the format for hotel bedsides and desks where a KNX control sits next to a run of receptacles.
The finish is FENIX NTM® Nero Ingo 0720 (a deep matte black): the FENIX NTM® nanotech laminate of the OL-U FENIX Edition — very low light reflectivity, soft-touch matte, anti-fingerprint — matched by key sets and companion frames carrying the same four-digit colour code. The triple format is also offered in painted plastic (PO71T55PL-1, PO71T55PL-3).
Key Features
- Type: triple cover frame 71+55+55
- Finish: FENIX NTM® Nero Ingo 0720 (a deep matte black)
- Fits: three boxes at standard 71 mm centres (Italian and German standards)
- Mounting frame (ordered separately): FOXXT01-71XX (plastic frame + metal support assembly)
- Device and inserts screw to the plastic/metal frame assembly; plate clips onto the upper and lower hooks; release with a flat screwdriver in the top-edge slot (do not pry)
- Outer size approx. 234 x 92 mm (9.21 x 3.62 in)
- Clean with a soft cloth and warm water or a neutral solvent; do not spray detergents on the product
Technical Specifications
| Type | OL-U cover frame — triple cover frame 71+55+55 |
| Finish / colour | FENIX NTM® Nero Ingo 0720 (a deep matte black) |
| Material | FENIX NTM® matte laminate |
| Compatible boxes | three boxes at standard 71 mm centres (Italian and German standards) |
| Compatible hardware | one OL-U device (SO08A01KNX, TO04A01KNX, HO04A01KNX, MO04A01KNX-x, SO04L02KNX-x, SO08L02KNX-x) plus two 55 x 55 mm (German standard) inserts: Merten System M, Berker S.1 / B.3 / B.7, Gira System 55, Jung A / AS, Smarterliving bv |
| Required mounting frame | FOXXT01-71XX |
| Outer dimensions | approx. 234 x 92 mm (9.21 x 3.62 in) |
| Manufacturer part no. | PO71T55FX-0720 |
Related Products
Other finishes: PO71T55FX-0030, PO71T55FX-0032, PO71T55FX-0724, PO71T55FX-0748, PO71T55FX-0754, PO71T55PL-1, PO71T55PL-3. Same finish, other formats: PO71A01FX-0720, PO71A03FX-0720, PO55A01FX-0720, PO55A55FX-0720, PO71A55FX-0720 and more. Metal mounting frame: FOXXT01-71XX. Key sets in the same colour: BK04FX-0720, BK08FX-0720, BK24FX-0720, BK42FX-0720, BKT4FX-0720.
Passive accessory – no electrical rating. The OL-U KNX hardware it mounts on is CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
Datasheet (PDF) · Available to order.
