Eelectron PO71A71FX-0720 Cover Frame Double 2X71 Fenix Black 0720
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$101.90 USD
Regular price
-8%
$110.88 USD
Sale price
$101.90 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

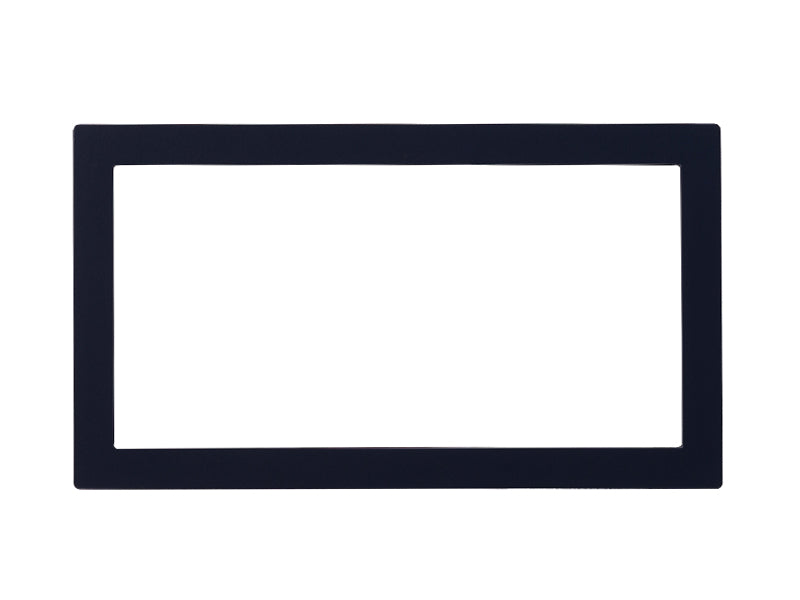

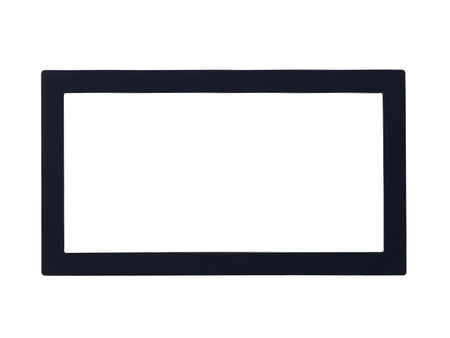

The Eelectron PO71A71FX-0720 is the OL-U double device cover frame 71+71 in FENIX Nero Ingo 0720. It frames two OL-U devices in one plate, replacing two plates with one continuous surface — the usual bedside or entry arrangement in hotel rooms and apartments. It mounts on two boxes coupled at 71 mm centres (74 mm for British boxes) via the dedicated metal frame.
The finish is FENIX NTM® Nero Ingo 0720 (a deep matte Ingo black): the FENIX NTM® nanotech laminate of the OL-U FENIX Edition — very low light reflectivity, soft-touch matte, anti-fingerprint — matched by key sets and companion frames carrying the same four-digit colour code.
Key Features
- Type: double device cover frame 71+71
- Finish: FENIX NTM® Nero Ingo 0720 (a deep matte Ingo black)
- Fits: two 2-module boxes coupled at 71 mm centres (74 mm for British standard)
- Dresses: two OL-U devices side by side (e.g. SO08A01KNX + TO04A01KNX, or keypad + MO04A01KNX multisensor)
- Mounting frame (ordered separately): FOXXA01-7171 (FOXXA01-7171S for Swiss-standard boxes)
- Device and inserts screw to the metal frame; plate hooks on the left and presses home on the right; keep the ventilation grid facing down
- Outer size approx. 163 x 92 mm (6.42 x 3.62 in)
- Clean with a soft microfibre cloth and water or neutral soap only
Technical Specifications
| Type | OL-U cover frame — double device cover frame 71+71 |
| Finish / colour | FENIX NTM® Nero Ingo 0720 (a deep matte Ingo black) |
| Material | FENIX NTM® matte laminate |
| Compatible boxes | two 2-module boxes coupled at 71 mm centres (74 mm for British standard) |
| Compatible hardware | two OL-U devices side by side (e.g. SO08A01KNX + TO04A01KNX, or keypad + MO04A01KNX multisensor) |
| Required mounting frame | FOXXA01-7171 (FOXXA01-7171S for Swiss-standard boxes) |
| Outer dimensions | approx. 163 x 92 mm (6.42 x 3.62 in) |
| Weight (net, packed) | 0.13 kg (0.29 lb) |
| Manufacturer part no. / GTIN | PO71A71FX-0720 / 8054144527369 |
Related Products
Other finishes: PO71A71FX-0030, PO71A71FX-0032, PO71A71FX-0724, PO71A71FX-0748, PO71A71FX-0754, PO71A71MT-SH, PO71A71PL-1, PO71A71PL-3, PO71A71PL-4. Same finish, other formats: PO71A01FX-0720, PO71A03FX-0720, PO45A01FX-0720, PO45A03FX-0720, PO45A04FX-0720, PO55A01FX-0720 and more. Metal mounting frame: FOXXA01-7171 (FOXXA01-7171S for Swiss-standard boxes). OL-U hardware: SO08A01KNX, TO04A01KNX, HO04A01KNX, MO04A01KNX-x, SO04L02KNX-x, SO08L02KNX-x.
Passive accessory – no electrical rating. The OL-U KNX hardware it mounts on is CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
Datasheet (PDF) · Available to order.
