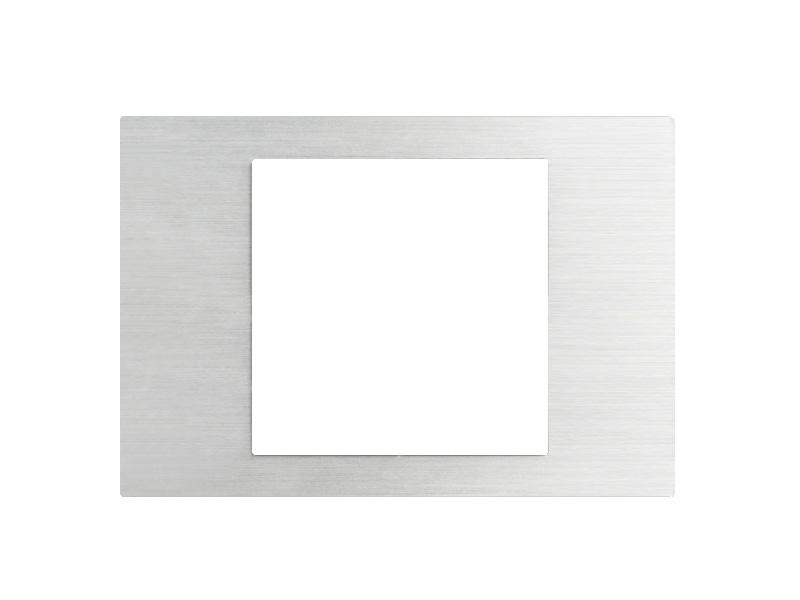

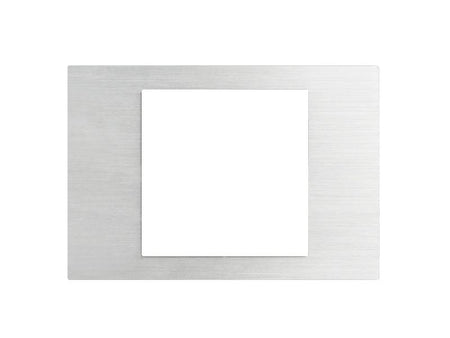

Eelectron PO71A03MT-SH Cover Frame 3M-71 Metal Silver
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$102.90 USD
Regular price
-8%
$112.00 USD
Sale price
$102.90 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The Eelectron PO71A03MT-SH is the OL-U 3-module device cover frame 3M-71 in metal silver. It finishes any OL-U device mounted on a 3-module box — SO08A01KNX switch, TO04A01KNX thermostat, HO04A01KNX humidistat or MO04A01KNX multisensor — and is the visible border of the keypad, so it is normally ordered in the same finish as the key set. Typical settings are hotel guest rooms, offices, multi-family units and residential retrofits where a KNX wall control should read as part of the interior.
The finish is metal, silver (MT-SH), the OL-U Metal Edition, pairing with the BKxxMT-SH silver key sets and the other MT-SH frames for a consistent all-metal wall.
Key Features
- Type: 3-module device cover frame 3M-71
- Finish: metal, silver (MT-SH)
- Fits: 3-module box: Italian 503 (and equivalent 3-module enclosures)
- Dresses: SO08A01KNX, TO04A01KNX, HO04A01KNX, MO04A01KNX-x; raw-plastic RP version for SO04L02KNX-x / SO08L02KNX-x
- Mounting frame (ordered separately): FO71A01-3M (single) or FO71A02-3M (10-pack)
- Snap-on over the device and keys; install with the ventilation grid facing down (it feeds the built-in temperature sensor)
- Outer size 130 x 92 x 11 mm (5.12 x 3.62 x 0.43 in)
- Clean with a soft microfibre cloth and water or neutral soap only
Technical Specifications
| Type | OL-U cover frame — 3-module device cover frame 3M-71 |
| Finish / colour | metal, silver (MT-SH) |
| Material | metal, silver finish |
| Compatible boxes | 3-module box: Italian 503 (and equivalent 3-module enclosures) |
| Compatible hardware | SO08A01KNX, TO04A01KNX, HO04A01KNX, MO04A01KNX-x; raw-plastic RP version for SO04L02KNX-x / SO08L02KNX-x |
| Required mounting frame | FO71A01-3M (single) or FO71A02-3M (10-pack) |
| Outer dimensions | 130 x 92 x 11 mm (5.12 x 3.62 x 0.43 in) |
| Weight (net, packed) | 0.13 kg (0.29 lb) |
| Manufacturer part no. / GTIN | PO71A03MT-SH / 8054144526973 |
Related Products
Other finishes: PO71A03FX-0030, PO71A03FX-0032, PO71A03FX-0720, PO71A03FX-0724, PO71A03FX-0748, PO71A03FX-0754, PO71A03PL-1, PO71A03PL-3, PO71A03RP-1, PO71A03RP-3. Same finish, other formats: PO71A01MT-SH, PO45A01MT-SH, PO45A03MT-SH, PO45A04MT-SH, PO55A01MT-SH, PO71A71MT-SH and more. Metal mounting frame: FO71A01-3M (single) or FO71A02-3M (10-pack). Key sets: BK04MT-SH, BK08MT-SH, BK24MT-SH, BK42MT-SH (SO08A01KNX) and BKT4MT-SH (TO04A01KNX / HO04A01KNX).
Passive accessory – no electrical rating. The OL-U KNX hardware it mounts on is CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
Datasheet (PDF) · Available to order.
