Eelectron PO71A01PL-3 Cover Frame 71 Painted Plastic Black
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$15.38 USD
Regular price
-8%
$16.80 USD
Sale price
$15.38 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

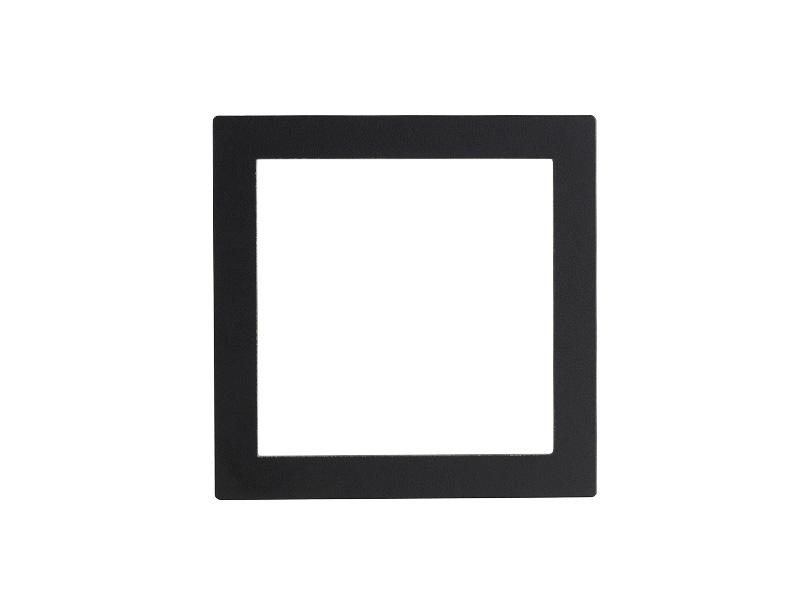

The Eelectron PO71A01PL-3 is the OL-U 2-module device cover frame 71 in black. It finishes any OL-U device mounted on a 2-module box — SO08A01KNX switch, TO04A01KNX thermostat, HO04A01KNX humidistat or MO04A01KNX multisensor — and is the visible border of the keypad, so it is normally ordered in the same finish as the key set. Typical settings are hotel guest rooms, offices, multi-family units and residential retrofits where a KNX wall control should read as part of the interior.
The finish is painted plastic, black, the OL-U Regular Version, matching the BKxxPLL key sets in the same colour code at the most accessible price point in the range.
Key Features
- Type: 2-module device cover frame 71
- Finish: painted plastic, black
- Fits: 2-module box: Italian 502, German/round 60 mm, British single-gang
- Dresses: SO08A01KNX, TO04A01KNX, HO04A01KNX, MO04A01KNX-x; raw-plastic RP version for SO04L02KNX-x / SO08L02KNX-x
- Mounting frame (ordered separately): FO71A01-2M (single) or FO71A02-2M (10-pack)
- Snap-on over the device and keys; install with the ventilation grid facing down (it feeds the built-in temperature sensor)
- Outer size 92 x 92 x 11 mm (3.62 x 3.62 x 0.43 in)
- Clean with a soft microfibre cloth and water or neutral soap only
Technical Specifications
| Type | OL-U cover frame — 2-module device cover frame 71 |
| Finish / colour | painted plastic, black |
| Material | painted plastic |
| Compatible boxes | 2-module box: Italian 502, German/round 60 mm, British single-gang |
| Compatible hardware | SO08A01KNX, TO04A01KNX, HO04A01KNX, MO04A01KNX-x; raw-plastic RP version for SO04L02KNX-x / SO08L02KNX-x |
| Required mounting frame | FO71A01-2M (single) or FO71A02-2M (10-pack) |
| Outer dimensions | 92 x 92 x 11 mm (3.62 x 3.62 x 0.43 in) |
| Weight (net, packed) | 0.13 kg (0.29 lb) |
| Manufacturer part no. / GTIN | PO71A01PL-3 / 8054144526843 |
Related Products
Other finishes: PO71A01FX-0030, PO71A01FX-0032, PO71A01FX-0720, PO71A01FX-0724, PO71A01FX-0748, PO71A01FX-0754, PO71A01MT-SH, PO71A01PL-1, PO71A01PL-4, PO71A01RP-1, PO71A01RP-3. Same finish, other formats: PO71S01PL-3, PO71A03PL-3, PO45A01PL-3, PO45A03PL-3, PO45A04PL-3, PO55A01PL-3 and more. Metal mounting frame: FO71A01-2M (single) or FO71A02-2M (10-pack). Key sets in the same colour: BK04PLL-3, BK08PLL-3, BK24PLL-3, BK42PLL-3 (SO08A01KNX), BKT4PLL-3 (TO04A01KNX / HO04A01KNX), BKM4PLL-3 (MO04A01KNX).
Passive accessory – no electrical rating. The OL-U KNX hardware it mounts on is CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
Datasheet (PDF) · Available to order.
