Eelectron PO71A01MV-BR OL-U Cover Frame 71 mm, 2-Module – Metal Bronze
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$51.90 USD
Regular price
-7%
$56.00 USD
Sale price
$51.90 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

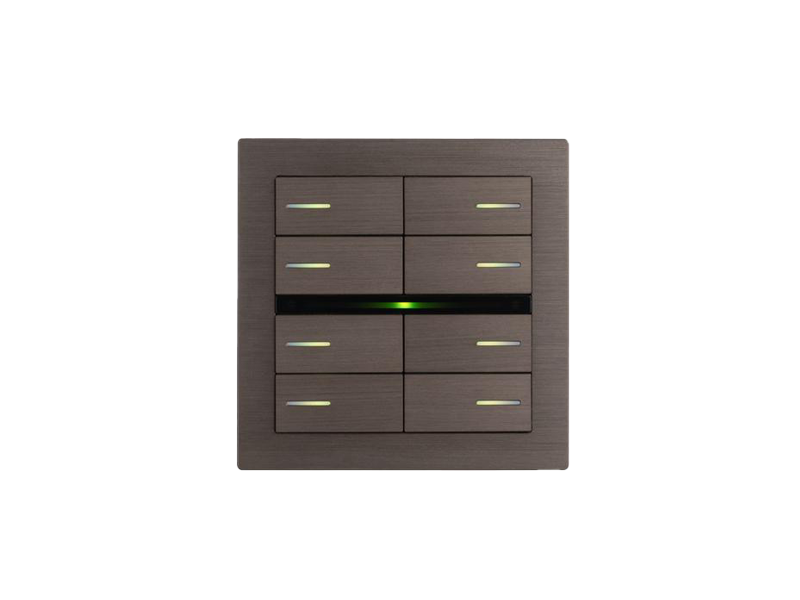

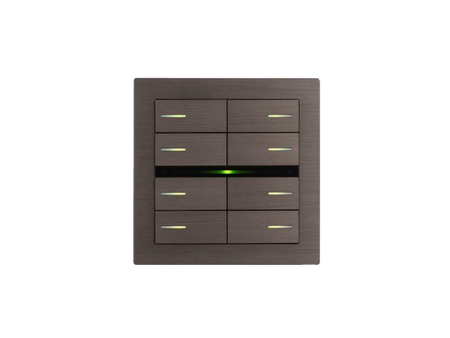

The Eelectron PO71A01MV-BR is the OL-U 2-module device cover frame 71 in metal bronze. It finishes any OL-U device mounted on a 2-module box — SO08A01KNX switch, TO04A01KNX thermostat, HO04A01KNX humidistat or MO04A01KNX multisensor — and is the visible border of the keypad, so it is normally ordered in the same finish as the key set. Typical settings are hotel guest rooms, offices, multi-family units and residential retrofits where a KNX wall control should read as part of the interior.
The finish is metal, bronze (MV-BR), one of the four 2026 additions to the OL-U Metal Edition beside the original silver (MT-SH); the MV code supersedes the earlier MT code for the coloured metals. The same tone runs across the BKxxMV-BR key sets and every PO-series frame format, so keypad, thermostat and adjacent receptacles can share one metal. Other tones: champagne (MV-CH), gold (MV-GO), black (MV-BK).
Key Features
- Type: 2-module device cover frame 71
- Finish: metal, bronze (MV-BR) — OL-U Metal Edition
- Fits: 2-module box: Italian 502, German/round 60 mm, British single-gang
- Mounting frame (ordered separately): FO71A01-2M (single) or FO71A02-2M (10-pack)
- Snap-on over the device and keys; install with the ventilation grid facing down (it feeds the built-in temperature sensor)
- Outer size 92 x 92 x 11 mm (3.62 x 3.62 x 0.43 in)
- Clean with a soft microfibre cloth and water or neutral soap only; no solvents or abrasives
Technical Specifications
| Type | OL-U cover frame — 2-module device cover frame 71 |
| Finish / colour | metal, bronze (MV-BR) |
| Material | metal, bronze finish |
| Compatible boxes | 2-module box: Italian 502, German/round 60 mm, British single-gang |
| Compatible hardware | SO08A01KNX, TO04A01KNX, HO04A01KNX, MO04A01KNX-x |
| Required mounting frame | FO71A01-2M (single) or FO71A02-2M (10-pack) |
| Outer dimensions | 92 x 92 x 11 mm (3.62 x 3.62 x 0.43 in) |
| Manufacturer part no. | PO71A01MV-BR |
Related Products
Other tones: PO71A01MV-CH, PO71A01MV-GO, PO71A01MV-BK; silver PO71A01MT-SH; FENIX PO71A01FX-0030 … -0754; painted plastic PO71A01PL-1 / -3. Same finish, other formats: PO71A03MV-BR, PO71A71MV-BR, PO45A01MV-BR, PO45A03MV-BR, PO45A04MV-BR and more. Mounting frame: FO71A01-2M (single) or FO71A02-2M (10-pack). Key sets: BK04 / BK08 / BK24 / BK42MV-BR (SO08A01KNX), BKT4MV-BR (TO04A01KNX / HO04A01KNX).
Passive accessory – no electrical rating. The OL-U KNX hardware it mounts on is CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
Datasheet (PDF) · Available to order.
