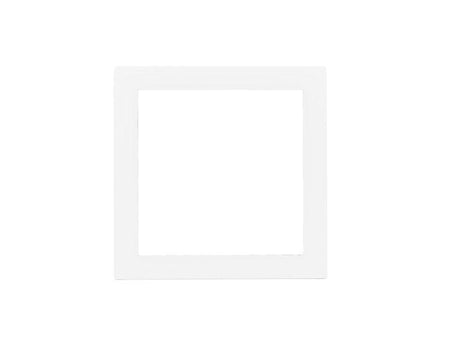

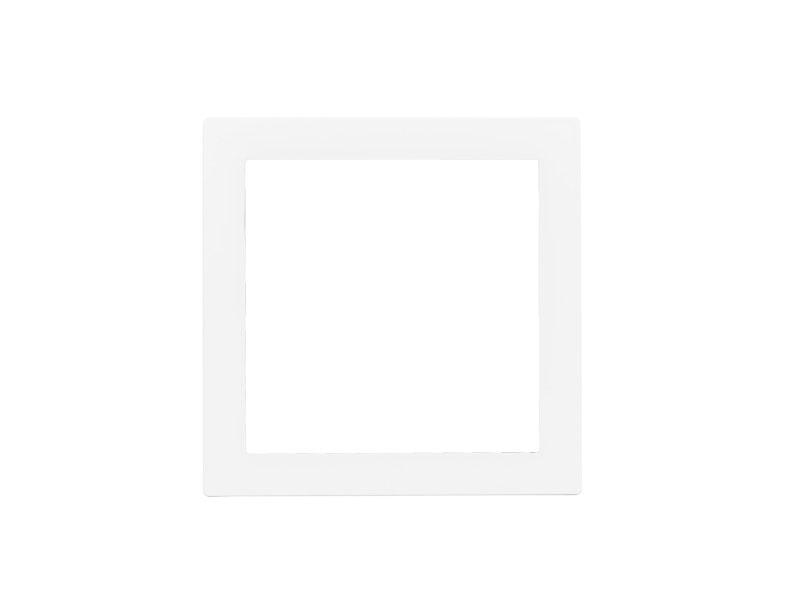

Eelectron PO71A01FX-0032 Cover Frame 71 Fenix White 0032
Eelectron PO71A01FX-0032 Cover Frame 71 Fenix White 0032

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eelectron

Eelectron PO71A01FX-0032 Cover Frame 71 Fenix White 0032

SKU: PO71A01FX-0032
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$53.90 USD
-7% $58.24 USD $53.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The Eelectron PO71A01FX-0032 is the OL-U 2-module device cover frame 71 in FENIX Bianco Kos 0032. It finishes any OL-U device mounted on a 2-module box — SO08A01KNX switch, TO04A01KNX thermostat, HO04A01KNX humidistat or MO04A01KNX multisensor — and is the visible border of the keypad, so it is normally ordered in the same finish as the key set. Typical settings are hotel guest rooms, offices, multi-family units and residential retrofits where a KNX wall control should read as part of the interior.

The finish is FENIX NTM® Bianco Kos 0032 (a cool, matte Kos white): the FENIX NTM® nanotech laminate of the OL-U FENIX Edition — very low light reflectivity, soft-touch matte, anti-fingerprint — matched by key sets and companion frames carrying the same four-digit colour code.

Key Features

  • Type: 2-module device cover frame 71
  • Finish: FENIX NTM® Bianco Kos 0032 (a cool, matte Kos white)
  • Fits: 2-module box: Italian 502, German/round 60 mm, British single-gang
  • Dresses: SO08A01KNX, TO04A01KNX, HO04A01KNX, MO04A01KNX-x; raw-plastic RP version for SO04L02KNX-x / SO08L02KNX-x
  • Mounting frame (ordered separately): FO71A01-2M (single) or FO71A02-2M (10-pack)
  • Snap-on over the device and keys; install with the ventilation grid facing down (it feeds the built-in temperature sensor)
  • Outer size 92 x 92 x 11 mm (3.62 x 3.62 x 0.43 in)
  • Clean with a soft microfibre cloth and water or neutral soap only

Technical Specifications

Type OL-U cover frame — 2-module device cover frame 71
Finish / colour FENIX NTM® Bianco Kos 0032 (a cool, matte Kos white)
Material FENIX NTM® matte laminate
Compatible boxes 2-module box: Italian 502, German/round 60 mm, British single-gang
Compatible hardware SO08A01KNX, TO04A01KNX, HO04A01KNX, MO04A01KNX-x; raw-plastic RP version for SO04L02KNX-x / SO08L02KNX-x
Required mounting frame FO71A01-2M (single) or FO71A02-2M (10-pack)
Outer dimensions 92 x 92 x 11 mm (3.62 x 3.62 x 0.43 in)
Weight (net, packed) 0.13 kg (0.29 lb)
Manufacturer part no. / GTIN PO71A01FX-0032 / 8054144526744

Related Products

Other finishes: PO71A01FX-0030, PO71A01FX-0720, PO71A01FX-0724, PO71A01FX-0748, PO71A01FX-0754, PO71A01MT-SH, PO71A01PL-1, PO71A01PL-3, PO71A01PL-4, PO71A01RP-1, PO71A01RP-3. Same finish, other formats: PO71A03FX-0032, PO45A01FX-0032, PO45A03FX-0032, PO45A04FX-0032, PO55A01FX-0032, PO71A71FX-0032 and more. Metal mounting frame: FO71A01-2M (single) or FO71A02-2M (10-pack). Key sets in the same FENIX colour: BK04FX-0032, BK08FX-0032, BK24FX-0032, BK42FX-0032 (SO08A01KNX) and BKT4FX-0032 (TO04A01KNX / HO04A01KNX).

Passive accessory – no electrical rating. The OL-U KNX hardware it mounts on is CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.

Datasheet (PDF) · Available to order.
