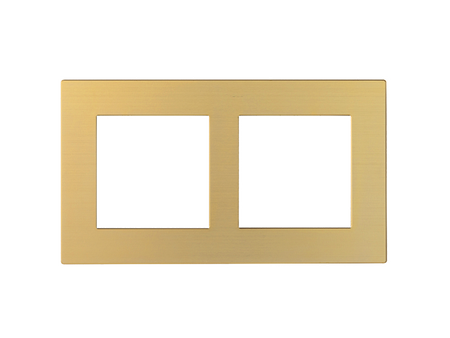

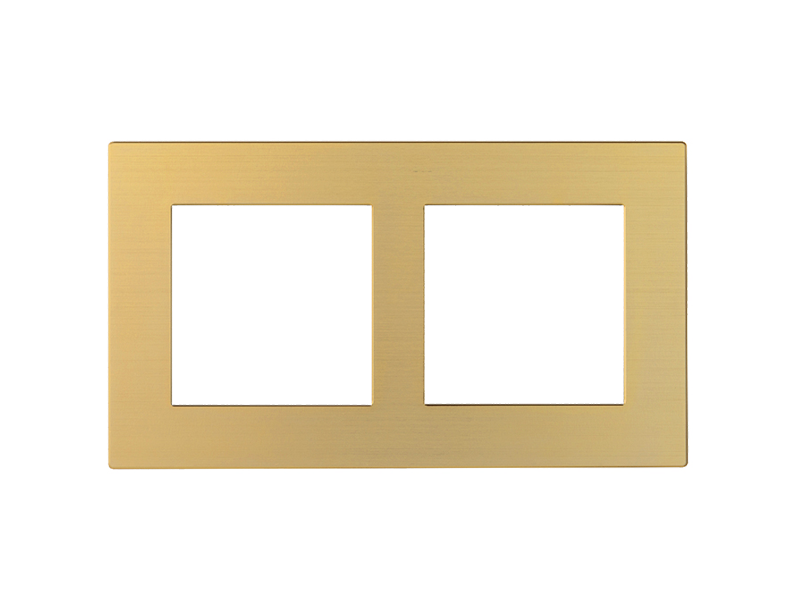

Eelectron PO55A55MV-BR OL-U Double Socket Cover Frame 55+55 – Metal Bronze
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$105.90 USD
Regular price
-8%
$115.36 USD
Sale price
$105.90 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The Eelectron PO55A55MV-BR is the OL-U double socket cover frame 55+55 in metal bronze. It frames a pair of 55 x 55 mm receptacles or devices in the OL-U look, replacing two plates with one continuous surface — the usual bedside or entry arrangement in hotel rooms and apartments. It mounts on two boxes coupled at 71 mm centres (74 mm for British boxes) via the dedicated metal frame.
The finish is metal, bronze (MV-BR), one of the four 2026 additions to the OL-U Metal Edition beside the original silver (MT-SH); the MV code supersedes the earlier MT code for the coloured metals. The same tone runs across the BKxxMV-BR key sets and every PO-series frame format, so keypad, thermostat and adjacent receptacles can share one metal. Other tones: champagne (MV-CH), gold (MV-GO), black (MV-BK).
Key Features
- Type: double socket cover frame 55+55
- Finish: metal, bronze (MV-BR) — OL-U Metal Edition
- Fits: two 2-module boxes coupled at 71 mm centres (74 mm for British standard)
- Mounting frame (ordered separately): FOXXA01-5555
- Inserts screw to the metal frame; plate hooks on the left and presses home on the right
- Outer size approx. 163 x 92 mm (6.42 x 3.62 in)
- Clean with a soft microfibre cloth and water or neutral soap only; no solvents or abrasives
Technical Specifications
| Type | OL-U cover frame — double socket cover frame 55+55 |
| Finish / colour | metal, bronze (MV-BR) |
| Material | metal, bronze finish |
| Compatible boxes | two 2-module boxes coupled at 71 mm centres (74 mm for British standard) |
| Compatible hardware | two 55 x 55 mm (German standard) inserts: Merten System M, Berker S.1 / B.3 / B.7, Gira System 55, Jung A / AS, Smarterliving bv |
| Required mounting frame | FOXXA01-5555 |
| Outer dimensions | approx. 163 x 92 mm (6.42 x 3.62 in) |
| Manufacturer part no. | PO55A55MV-BR |
Related Products
Other tones: PO55A55MV-CH, PO55A55MV-GO, PO55A55MV-BK; silver PO55A55MT-SH; FENIX PO55A55FX-0030 … -0754; painted plastic PO55A55PL-1 / -3. Same finish, other formats: PO71A01MV-BR, PO71A03MV-BR, PO71A71MV-BR, PO45A01MV-BR, PO45A03MV-BR and more. Mounting frame: FOXXA01-5555.
Passive accessory – no electrical rating. The OL-U KNX hardware it mounts on is CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
Datasheet (PDF) · Available to order.
