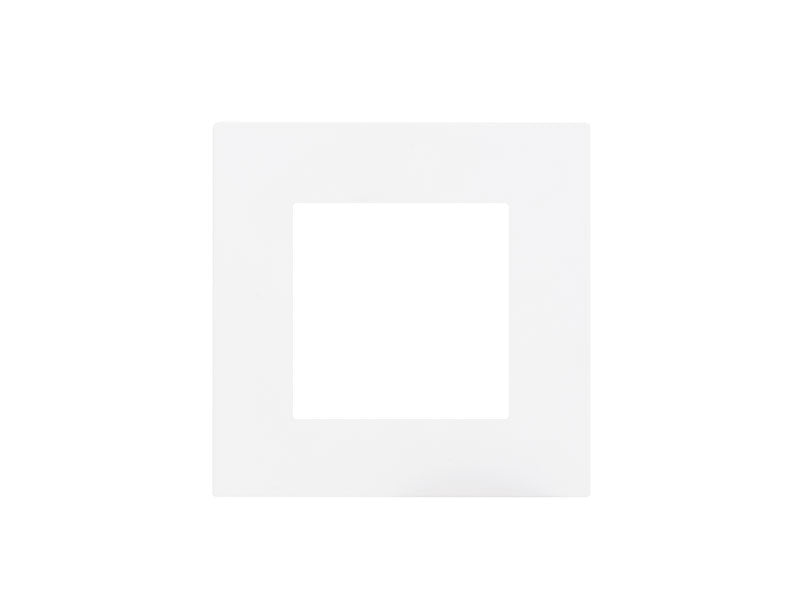

Eelectron PO55A01RP-1 Cover Frame 55 single – Plastic White Lite
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$11.28 USD
Regular price
-8%
$12.32 USD
Sale price
$11.28 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The Eelectron PO55A01RP-1 is the OL-U 2-module socket cover frame 55 in white (Lite). It dresses a 55 x 55 mm receptacle or device next to an OL-U keypad in the same finish, so receptacles, USB chargers, data outlets and conventional switches on the same wall share one design with the KNX keypad. It is a finishing part only: the wiring device comes from the standard ranges listed below and the plate hooks onto a separately ordered metal frame.
The finish is raw (unpainted) plastic, white — the Lite finish: unpainted plastic in the moulded colour, the economical companion to the painted PL range and the standard finish for the SO04L02KNX / SO08L02KNX LITE switches.
Key Features
- Type: 2-module socket cover frame 55
- Finish: raw (unpainted) plastic, white — the Lite finish
- Fits: 60 mm round / German-standard box with a 55 x 55 mm insert
- Dresses: 55 x 55 mm (German standard) inserts
- Mounting frame (ordered separately): FOXXA01-2M (single) or FOXXA02-2M (10-pack)
- Tilt about 30°, hook onto the metal frame and press home; remove with a flat screwdriver in the edge slot
- Clean with a soft microfibre cloth and water or neutral soap only
Technical Specifications
| Type | OL-U cover frame — 2-module socket cover frame 55 |
| Finish / colour | raw (unpainted) plastic, white — the Lite finish |
| Material | raw plastic (unpainted) |
| Compatible boxes | 60 mm round / German-standard box with a 55 x 55 mm insert |
| Compatible hardware | 55 x 55 mm (German standard) inserts: Merten System M, Berker S.1 / B.3 / B.7, Gira System 55, Jung A / AS, Smarterliving bv |
| Required mounting frame | FOXXA01-2M (single) or FOXXA02-2M (10-pack) |
| Weight (net, packed) | 0.13 kg (0.29 lb) |
| Manufacturer part no. / GTIN | PO55A01RP-1 / 8054144526393 |
Related Products
Other finishes: PO55A01FX-0030, PO55A01FX-0032, PO55A01FX-0720, PO55A01FX-0724, PO55A01FX-0748, PO55A01FX-0754, PO55A01MT-SH, PO55A01PL-1, PO55A01PL-3, PO55A01RP-3. Same finish, other formats: PO71A01RP-1, PO71A03RP-1, PO45A01RP-1, PO45A03RP-1. Metal mounting frame: FOXXA01-2M (single) or FOXXA02-2M (10-pack).
Passive accessory – no electrical rating. The OL-U KNX hardware it mounts on is CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
