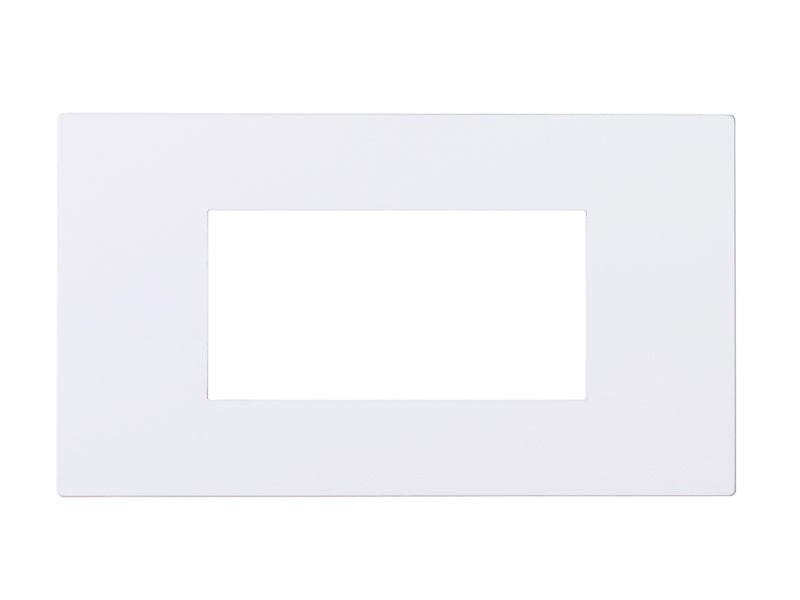

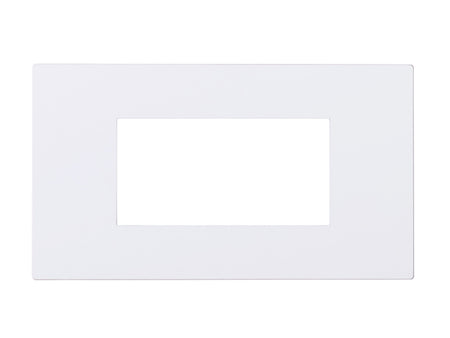

Eelectron PO45A04FX-0030 Cover Frame 4-fold – Fenix White 0030
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$100.90 USD
Regular price
-8%
$109.76 USD
Sale price
$100.90 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The Eelectron PO45A04FX-0030 is the OL-U 4-module socket cover frame 45 in FENIX Bianco Alaska 0030. It dresses a 4-module receptacle group next to an OL-U keypad in the same finish, so receptacles, USB chargers, data outlets and conventional switches on the same wall share one design with the KNX keypad. It is a finishing part only: the wiring device comes from the standard ranges listed below and the plate hooks onto a separately ordered metal frame.
The finish is FENIX NTM® Bianco Alaska 0030 (a warm, matte Alaska white): the FENIX NTM® nanotech laminate of the OL-U FENIX Edition — very low light reflectivity, soft-touch matte, anti-fingerprint — matched by key sets and companion frames carrying the same four-digit colour code.
Key Features
- Type: 4-module socket cover frame 45
- Finish: FENIX NTM® Bianco Alaska 0030 (a warm, matte Alaska white)
- Fits: 4-module 45 mm wiring-device box (Italian 504 standard); double British box with the FOXXB01-4M adapter
- Dresses: 45 mm (Italian standard) 4-module wiring devices
- Mounting frame (ordered separately): FOXXA01-4M (single); FOXXB01-4M adapter for double British boxes
- Tilt about 30°, hook onto the metal frame and press home; remove with a flat screwdriver in the edge slot
- Clean with a soft microfibre cloth and water or neutral soap only
Technical Specifications
| Type | OL-U cover frame — 4-module socket cover frame 45 |
| Finish / colour | FENIX NTM® Bianco Alaska 0030 (a warm, matte Alaska white) |
| Material | FENIX NTM® matte laminate |
| Compatible boxes | 4-module 45 mm wiring-device box (Italian 504 standard); double British box with the FOXXB01-4M adapter |
| Compatible hardware | 45 mm (Italian standard) 4-module wiring devices: Vimar Plana, Vimar Arkè, BTicino Living Light (with plastic frame AJ.10.L.04) |
| Required mounting frame | FOXXA01-4M (single); FOXXB01-4M adapter for double British boxes |
| Weight (net, packed) | 0.13 kg (0.29 lb) |
| Manufacturer part no. / GTIN | PO45A04FX-0030 / 8054144526157 |
Related Products
Other finishes: PO45A04FX-0032, PO45A04FX-0720, PO45A04FX-0724, PO45A04FX-0748, PO45A04FX-0754, PO45A04MT-SH, PO45A04PL-1, PO45A04PL-3. Same finish, other formats: PO71A01FX-0030, PO71A03FX-0030, PO45A01FX-0030, PO45A03FX-0030, PO55A01FX-0030, PO71A71FX-0030 and more. Metal mounting frame: FOXXA01-4M (single); FOXXB01-4M adapter for double British boxes.
Passive accessory – no electrical rating. The OL-U KNX hardware it mounts on is CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
Datasheet (PDF) · Available to order.
