Eelectron PO45A01PL-3 Cover Frame 45 Painted Plastic Black 2M
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$10.24 USD
Regular price
-9%
$11.20 USD
Sale price
$10.24 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

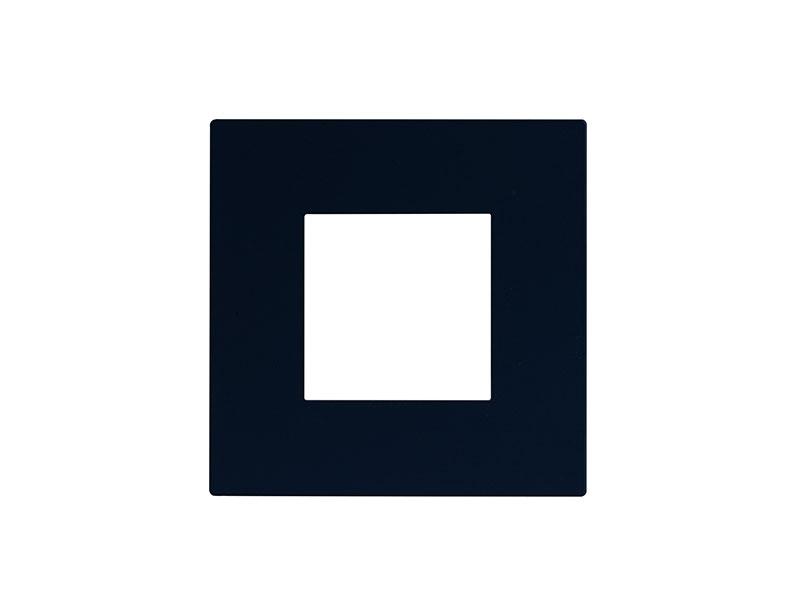

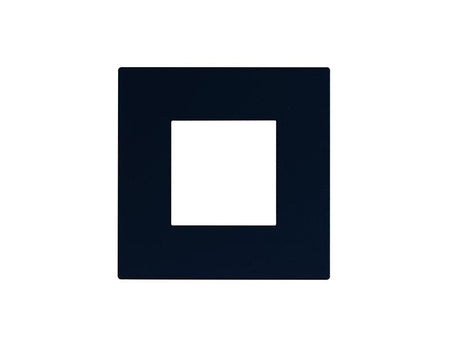

The Eelectron PO45A01PL-3 is the OL-U 2-module socket cover frame 45 in black. It dresses a 2-module receptacle, data outlet or switch next to an OL-U keypad in the same finish, so receptacles, USB chargers, data outlets and conventional switches on the same wall share one design with the KNX keypad. It is a finishing part only: the wiring device comes from the standard ranges listed below and the plate hooks onto a separately ordered metal frame.
The finish is painted plastic, black, the OL-U Regular Version, matching the BKxxPLL key sets in the same colour code at the most accessible price point in the range.
Key Features
- Type: 2-module socket cover frame 45
- Finish: painted plastic, black
- Fits: 2-module 45 mm wiring-device box (Italian 502 standard)
- Dresses: 45 mm (Italian standard) 2-module wiring devices
- Mounting frame (ordered separately): FOXXA01-2M (single) or FOXXA02-2M (10-pack)
- Tilt about 30°, hook onto the metal frame and press home; remove with a flat screwdriver in the edge slot
- Clean with a soft microfibre cloth and water or neutral soap only
Technical Specifications
| Type | OL-U cover frame — 2-module socket cover frame 45 |
| Finish / colour | painted plastic, black |
| Material | painted plastic |
| Compatible boxes | 2-module 45 mm wiring-device box (Italian 502 standard) |
| Compatible hardware | 45 mm (Italian standard) 2-module wiring devices: Vimar Plana, Vimar Arkè, AVE Sistema 44, 4Box, Gewiss 2M (with plastic frame AJ.10.L.02) |
| Required mounting frame | FOXXA01-2M (single) or FOXXA02-2M (10-pack) |
| Weight (net, packed) | 0.13 kg (0.29 lb) |
| Manufacturer part no. / GTIN | PO45A01PL-3 / 8054144525983 |
Related Products
Other finishes: PO45A01FX-0030, PO45A01FX-0032, PO45A01FX-0720, PO45A01FX-0724, PO45A01FX-0748, PO45A01FX-0754, PO45A01MT-SH, PO45A01PL-1, PO45A01RP-1, PO45A01RP-3. Same finish, other formats: PO71A01PL-3, PO71S01PL-3, PO71A03PL-3, PO45A03PL-3, PO45A04PL-3, PO55A01PL-3 and more. Metal mounting frame: FOXXA01-2M (single) or FOXXA02-2M (10-pack).
Passive accessory – no electrical rating. The OL-U KNX hardware it mounts on is CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
Datasheet (PDF) · Available to order.
