Eelectron PO45A01MV-BK OL-U Socket Cover Frame 45 mm, 2-Module – Metal Black
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$60.90 USD
Regular price
-8%
$66.08 USD
Sale price
$60.90 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!

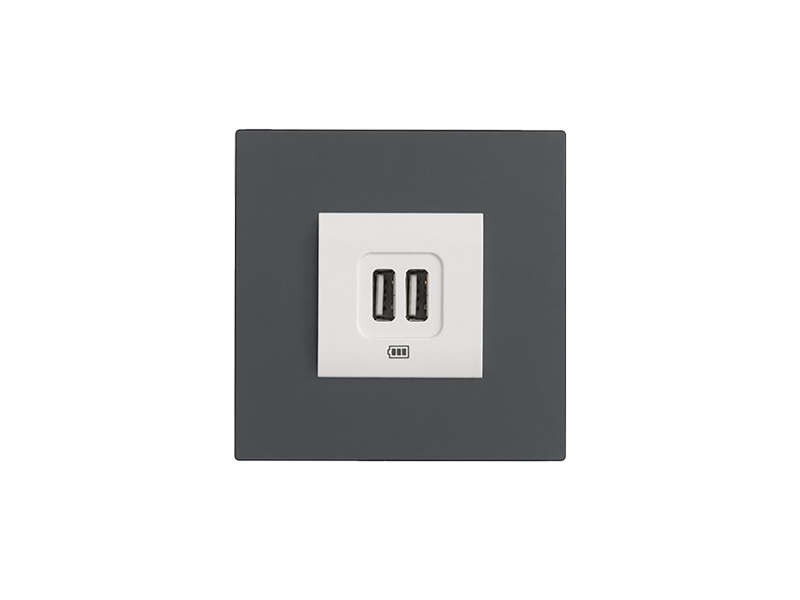

The Eelectron PO45A01MV-BK is the OL-U 2-module socket cover frame 45 in metal black. It dresses a 2-module receptacle, data outlet or switch next to an OL-U keypad in the same finish, so receptacles, USB chargers, data outlets and conventional switches on the same wall share one design with the KNX keypad. It is a finishing part only: the wiring device comes from the standard ranges listed below and the plate hooks onto a separately ordered metal frame.
The finish is metal, black (MV-BK), one of the four 2026 additions to the OL-U Metal Edition beside the original silver (MT-SH); the MV code supersedes the earlier MT code for the coloured metals. The same tone runs across the BKxxMV-BK key sets and every PO-series frame format, so keypad, thermostat and adjacent receptacles can share one metal. Other tones: champagne (MV-CH), gold (MV-GO), bronze (MV-BR).
Key Features
- Type: 2-module socket cover frame 45
- Finish: metal, black (MV-BK) — OL-U Metal Edition
- Fits: 2-module 45 mm wiring-device box (Italian 502 standard)
- Mounting frame (ordered separately): FOXXA01-2M (single) or FOXXA02-2M (10-pack)
- Tilt about 30°, hook onto the metal frame and press home; remove with a flat screwdriver in the edge slot
- Clean with a soft microfibre cloth and water or neutral soap only; no solvents or abrasives
Technical Specifications
| Type | OL-U cover frame — 2-module socket cover frame 45 |
| Finish / colour | metal, black (MV-BK) |
| Material | metal, black finish |
| Compatible boxes | 2-module 45 mm wiring-device box (Italian 502 standard) |
| Compatible hardware | 45 mm (Italian standard) 2-module wiring devices: Vimar Plana, Vimar Arkè, AVE Sistema 44, 4Box, Gewiss 2M (with plastic frame AJ.10.L.02) |
| Required mounting frame | FOXXA01-2M (single) or FOXXA02-2M (10-pack) |
| Manufacturer part no. | PO45A01MV-BK |
Related Products
Other tones: PO45A01MV-CH, PO45A01MV-GO, PO45A01MV-BR; silver PO45A01MT-SH; FENIX PO45A01FX-0030 … -0754; painted plastic PO45A01PL-1 / -3. Same finish, other formats: PO71A01MV-BK, PO71A03MV-BK, PO71A71MV-BK, PO45A03MV-BK, PO45A04MV-BK and more. Mounting frame: FOXXA01-2M (single) or FOXXA02-2M (10-pack).
Passive accessory – no electrical rating. The OL-U KNX hardware it mounts on is CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
Datasheet (PDF) · Available to order.
