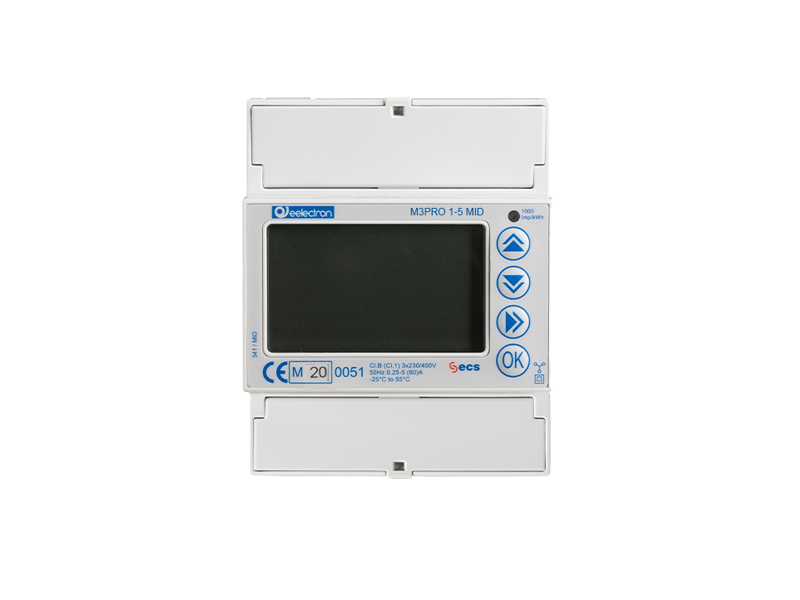

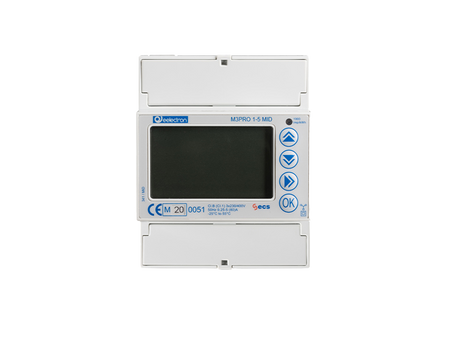

Eelectron PM30E02IRE Energy Meter 3-phase, converter, 5 A and 1 A
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
⚡
Mains Voltage · No US Cert
This device operates with or switches mains voltage (120/240VAC) and
has not been certified by an NRTL. USA installation requires a Field
Evaluation by a recognized laboratory and explicit AHJ approval.
Regular price
$359.90 USD
Regular price
-8%
$393.12 USD
Sale price
$359.90 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The Eelectron PM30E02IRE is a three-phase energy meter for current-transformer connection (5 A or 1 A secondaries), used where the metered feed exceeds the 80 A of direct meters: main incomers, large HVAC plant, kitchens and EV charging clusters. Like the rest of the PM series it carries an infrared port so the PM00A00IRI interface can bring its readings onto the KNX bus.
The CT ratio is set on the meter, so one model covers a wide range of installations; energies, powers and tariff registers are then available to the KNX system for monitoring and load management.
The meter is wired through three current transformers sized for the feed, with the voltage reference taken directly from the three phases and neutral; the programmed CT ratio scales the display and the values passed to the KNX interface. Installation is by a licensed electrician, and the CT secondaries must never be left open while the primary is energized. With PM00A00IRI the readings are available to KNX for monitoring, load shedding and reporting. Because the current transformers can be chosen for the actual feed, the same meter covers sub-distribution boards from a few hundred amps down to small plant feeds, and the primary circuit does not need to be routed through the meter, which simplifies installation on existing switchgear. Where several CT meters are installed, one PM00A00IRI per meter brings each feed to the bus, and energy totals can be combined in the logic blocks of a device such as IPSBA01KNX for site-wide reporting.
Key Features
- Three-phase meter for CT connection, 5 A or 1 A secondaries
- Programmable CT ratio
- Infrared port for PM00A00IRI KNX interface
- Energy, power and tariff registers
- DIN-rail mounting
Technical Specifications
| Connection | Three-phase via current transformers, 5 A / 1 A secondary |
| Interface | Infrared port (PM00A00IRI) |
| Mounting | DIN rail |
| Certifications | CE |
| ETS application | None (via PM00A00IRI interface) |
| Weight (net) | 0.29 kg (0.64 lb) |
| Manufacturer part no. / GTIN | PM30E02IRE / 8054144525860 |
Related Products
KNX interface: PM00A00IRI. Direct-connected meters: PM30E01IRE (80 A three-phase), PM10E02IRE (80 A single-phase). Current transformers are ordered separately.
CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
Datasheet (PDF) · Available to order.
