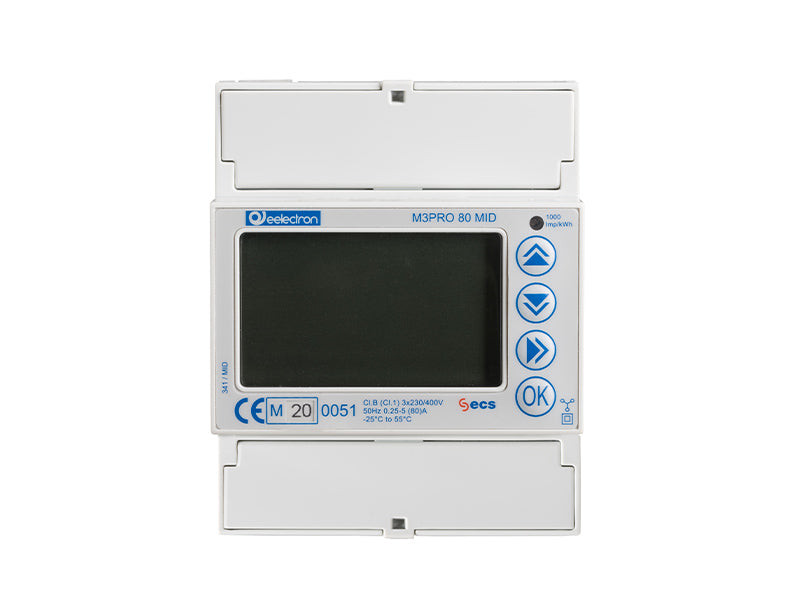

Eelectron PM30E01IRE Energy Meter 3-phase, direct, 80 A
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
⚡
Mains Voltage · No US Cert
This device operates with or switches mains voltage (120/240VAC) and
has not been certified by an NRTL. USA installation requires a Field
Evaluation by a recognized laboratory and explicit AHJ approval.
Regular price
$385.90 USD
Regular price
-8%
$421.12 USD
Sale price
$385.90 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The Eelectron PM30E01IRE is a three-phase, four-wire 80 A direct-connected energy meter with MID certification (class B), two tariffs, two S0 pulse outputs and an infrared port for the PM00A00IRI KNX interface. It meters 230/400 V feeds for apartments, restaurants, plant rooms and tenant areas with billing-grade accuracy, and in 4 DIN modules it fits any distribution board.
Through the PM00A00IRI the KNX system receives energy per tariff, active and reactive power and alarms, so load shedding, dashboards and cost allocation can be built in ETS or a visualization without a Modbus gateway.
The S0 outputs can feed pulse-counting binary inputs (BI04F01KNX, BI16F01KNX) where a KNX interface is not used, and the tariff input lets the utility signal or a KNX actuator select the active register. The display shows total and per-tariff energies, instantaneous power per phase and diagnostic information. Installation is by a licensed electrician in a sealed cabinet, with the meter protected by the upstream breaker. Readings include active and reactive energy per tariff and per direction, instantaneous active, reactive and apparent power, and voltage and current per phase, which the KNX interface can forward to logic blocks for peak-load limiting of HVAC or EV chargers. The compact 4-module footprint keeps it alongside the breakers it meters, and the IR coupling to the KNX interface avoids any additional wiring in the metering circuit.
Key Features
- Three-phase 4-wire direct connection, up to 80 A per phase, 230/400 V
- MID certified, accuracy class B
- 2 tariffs; 2 S0 pulse outputs
- LCD display; infrared port for PM00A00IRI
- 4-module DIN housing, approx. 412 g
Technical Specifications
| Connection | Three-phase, 4-wire, direct, up to 80 A |
| Voltage | 230/400 V AC |
| Accuracy | Class B (MID) |
| Tariffs | 2 |
| Outputs | 2 x S0 pulse; infrared port |
| Mounting | DIN rail, 4 modules |
| Standards | MID 2014/32/EU; EN 50470 |
| Certifications | MID; CE |
| ETS application | None (via PM00A00IRI interface) |
| Weight (net) | 0.35 kg (0.77 lb) |
| Manufacturer part no. / GTIN | PM30E01IRE / 8054144521671 |
Related Products
KNX interface: PM00A00IRI. CT-connected version for larger feeds: PM30E02IRE (5 A / 1 A). Single-phase: PM10E02IRE.
CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
Datasheet (PDF) · Available to order.
