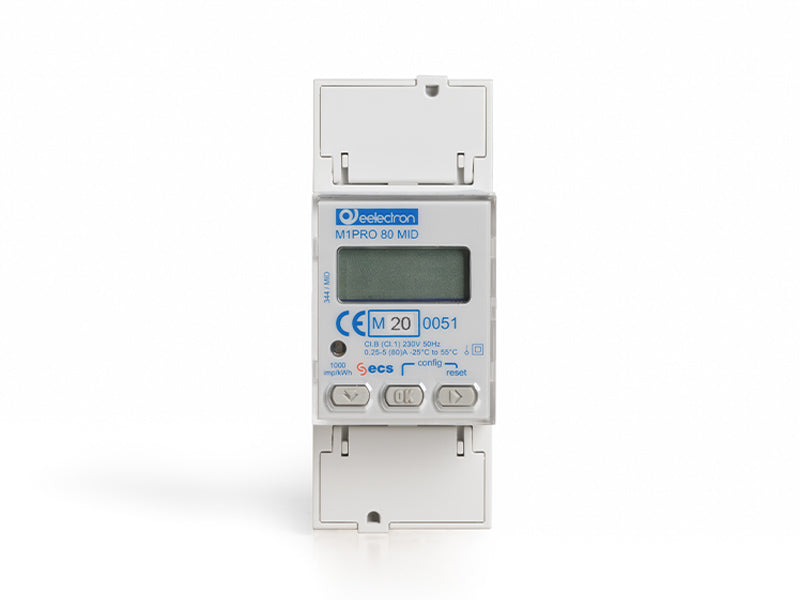

Eelectron PM10E02IRE Energy Meter Single-phase, direct, 80 A
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
⚡
Mains Voltage · No US Cert
This device operates with or switches mains voltage (120/240VAC) and
has not been certified by an NRTL. USA installation requires a Field
Evaluation by a recognized laboratory and explicit AHJ approval.
Regular price
$261.90 USD
Regular price
-8%
$285.60 USD
Sale price
$261.90 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The Eelectron PM10E02IRE is a single-phase 80 A direct-connected energy meter with MID certification (class B), an 8-digit LCD, two tariff registers and two S0 pulse outputs, plus the infrared port used by the PM00A00IRI KNX interface. It is designed for sub-metering apartments, hotel rooms, EV chargers and single-phase feeds where billing-grade accuracy is required.
The meter accepts 92–276 V and 0.25 to 5 (80) A, switches tariffs with a 230 V input, and occupies 2 DIN modules inside an IP51 cabinet. Combined with the IR interface the readings become KNX objects without any wiring to the metering circuit.
The S0 outputs allow the meter to feed pulse counters on binary inputs such as BI04F01KNX or BI16F01KNX as an alternative to the infrared interface, and the tariff input lets a KNX actuator or the utility signal switch between day and night registers. The display cycles through total and per-tariff energies and instantaneous values. The meter should be installed by a licensed electrician in a sealed cabinet. For a hotel, one meter per guest room or per corridor feed combined with a PM00A00IRI gives the operator per-area consumption on the KNX visualization without touching the room wiring, and the MID certification means the same readings can be used for tenant re-billing where local regulations allow.
Key Features
- Single-phase direct connection, 0.25–5 (80) A, 92–276 V
- MID certified, accuracy class B (EN 50470)
- 2 tariffs, selected by 230 V input
- 2 S0 pulse outputs
- 8-digit LCD display
- Infrared port for the PM00A00IRI KNX interface
- 2-module DIN housing; operating range -25 to +55 °C
Technical Specifications
| Connection | Single-phase, direct, 0.25–5 (80) A |
| Voltage | 92–276 V AC |
| Accuracy | Class B (MID) |
| Tariffs | 2, 230 V tariff input |
| Outputs | 2 x S0 pulse; infrared port |
| Display | LCD, 8 digits |
| Mounting | DIN rail, 2 modules; cabinet protection IP51 |
| Operating temperature | -25 °C to +55 °C (-13 °F to 131 °F) |
| Standards | MID 2014/32/EU; EN 50470 |
| Certifications | MID; CE |
| ETS application | None (via PM00A00IRI interface) |
| Weight (net) | 0.18 kg (0.40 lb) |
| Manufacturer part no. / GTIN | PM10E02IRE / 8054144521640 |
Related Products
KNX interface: PM00A00IRI. Three-phase meters: PM30E01IRE (80 A direct) and PM30E02IRE (CT 5 A / 1 A).
CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
Datasheet (PDF) · Available to order.
