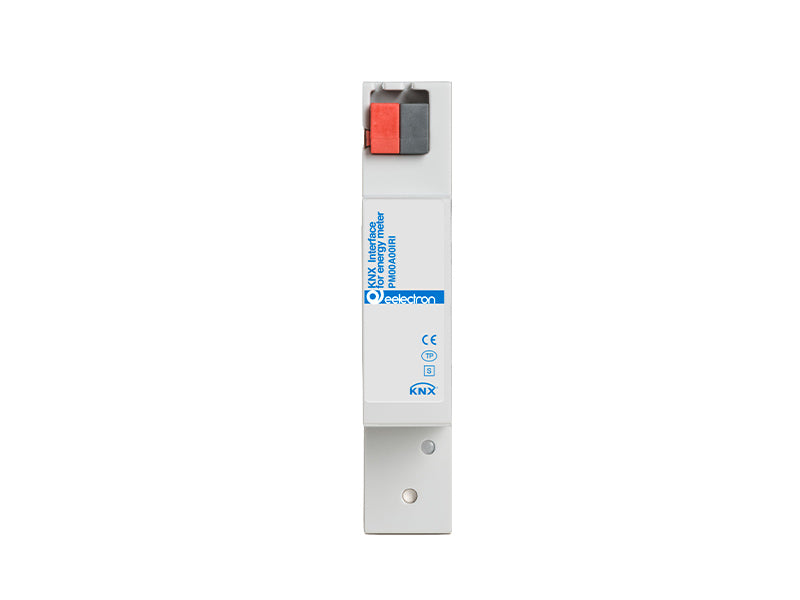

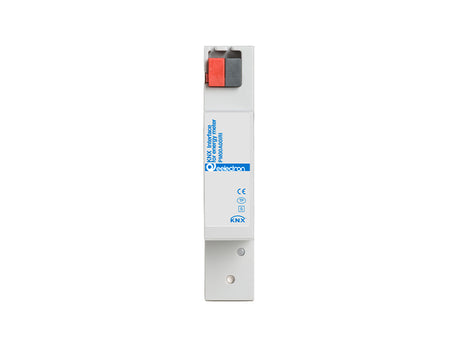

Eelectron PM00A00IRI KNX interface for energy meter standard
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
⚡
Mains Voltage · No US Cert
This device operates with or switches mains voltage (120/240VAC) and
has not been certified by an NRTL. USA installation requires a Field
Evaluation by a recognized laboratory and explicit AHJ approval.
Regular price
$175.90 USD
Regular price
-8%
$191.52 USD
Sale price
$175.90 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The Eelectron PM00A00IRI is a 1-module KNX infrared interface for the Eelectron PM-series energy meters. It clips beside a PM10E02IRE, PM30E01IRE or PM30E02IRE meter, reads the meter through its IR port and publishes energies, powers, tariffs and alarms as 52 KNX objects. This keeps the MID-certified meter untouched (no bus wiring to the metering head) while the KNX system gets live consumption data for dashboards, load management and tenant billing.
The interface is bus-powered and selects a single-phase or three-phase profile in ETS according to the meter connected. It is the simplest way to add sub-metering of a hotel floor, apartment or plant feed to a KNX installation.
Installation consists of fitting the interface against the meter's infrared window, connecting the bus and selecting the meter profile in ETS; no settings are changed on the meter itself, so its MID seal and certification remain intact. The objects can be read cyclically or on change and are typically mapped to a visualization, to logic blocks for load shedding, or to a cloud connection via the IPSBA01KNX MQTT client. Typical profiles include total and per-tariff active energy import and export, reactive energy, active/reactive/apparent power, voltage and current where the meter provides them, and the alarm objects can flag communication loss with the meter so a missing reading is never mistaken for zero consumption.
Key Features
- KNX interface for PM10E02IRE, PM30E01IRE and PM30E02IRE meters via infrared port
- 52 communication objects: active/reactive energy, powers, tariffs, alarms
- Single-phase and three-phase meter profiles selectable in ETS
- Bus-powered, no auxiliary supply
- 1-module DIN housing clipped next to the meter
Technical Specifications
| Power supply | Via KNX bus |
| Interface | Infrared to PM-series meter |
| Communication objects | 52 |
| Compatible meters | PM10E02IRE (single-phase), PM30E01IRE (three-phase direct), PM30E02IRE (three-phase CT) |
| Mounting | DIN rail, 1 module, adjacent to the meter |
| Certifications | KNX certified; CE |
| ETS application | PM00A00IRI energy meter interface application |
| Weight (net) | 0.06 kg (0.13 lb) |
| Manufacturer part no. / GTIN | PM00A00IRI / 8054144521633 |
Related Products
Meters: PM10E02IRE (80 A single-phase), PM30E01IRE (80 A three-phase), PM30E02IRE (CT 5 A / 1 A three-phase). Modbus route for other meters: IC00M01KNX or IPSBA04KNX + IC00M01ACC.
CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
