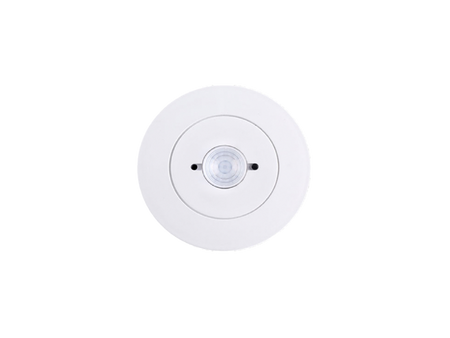

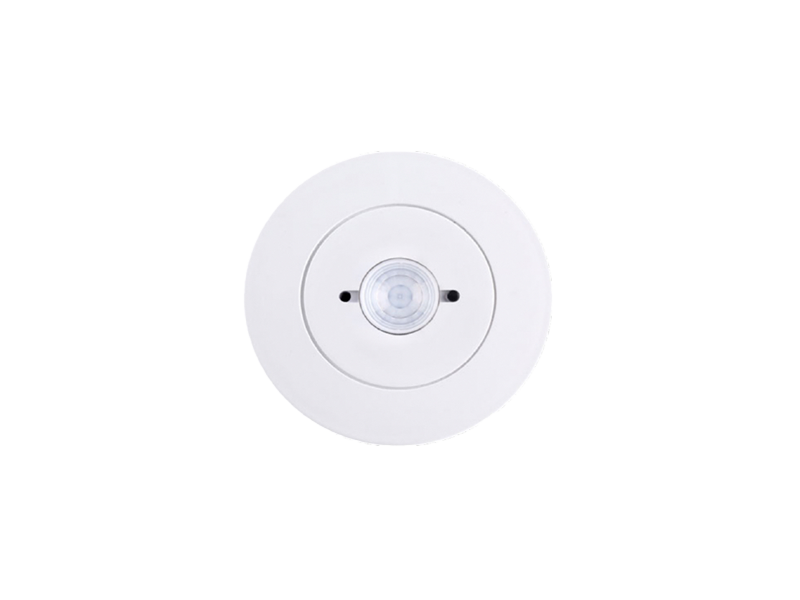

Eelectron PD54E09KNX KNX High Bay Presence Detector IP54, Lighting Control – White
Eelectron PD54E09KNX KNX High Bay Presence Detector IP54, Lighting Control – White

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eelectron

Eelectron PD54E09KNX KNX High Bay Presence Detector IP54, Lighting Control – White

SKU: PD54E09KNX
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$162.90 USD
-27% $221.76 USD $162.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The Eelectron PD54E09KNX is the IP54 High Bay version of Eelectron’s KNX presence detector range in white, built for ceilings up to 16 m (52 ft) in warehouses, logistics halls, gyms, sports halls, atriums, workshops and covered loading areas — including the damp or dusty spaces where the standard IP20 High Bay (PD00E09KNX) cannot be used. It pairs PIR presence detection with an integrated illuminance sensor so high-bay LED luminaires are switched or dimmed by occupancy and daylight directly from the KNX bus.

Presence detection offers 5 independently configurable channels (presence with or without lighting control, automatic or semi-automatic). A rear connector carries 3 digital inputs for dry-contact pushbuttons or switches, one of which can be set as an analog NTC probe input for the built-in 2-stage PI thermostat. Twelve logic blocks, Circadian Rhythm tunable-white curves and the Virtual Holder occupancy logic are included. The black version is PD54E09KNX-3; the matching mounting accessory is PD54E00ACC.

Key Features

  • IP54 High Bay PIR presence detector for ceiling mounting up to 16 m (52 ft)
  • 5 independently configurable presence channels: presence with/without lighting control, automatic or semi-automatic detection
  • Integrated illuminance sensor for ambient lighting control
  • 3 rear digital inputs for dry-contact pushbuttons or switches: on/off, dimming, shutters/blinds, scenes, sequences, step commands
  • One input configurable as analog for Eelectron NTC probes (TS00A01ACC / TS00B01ACC) — temperature to bus or full thermostat module
  • Integrated 2-stage thermostat with PI controller for heating/cooling equipment, valves, 2- and 4-pipe fan coils
  • 12 logic blocks with logical, threshold, algebraic and conditional operators; predefined proportional temperature/humidity and dew-point algorithms
  • Circadian Rhythm lighting logic (predefined curves or real sun position); Virtual Holder occupancy logic for hospitality
  • Dedicated IP54 mounting accessory PD54E00ACC
  • Finish: white

Technical Specifications

Bus KNX TP (bus-powered)
Sensors PIR presence detection (high-bay lens); illuminance sensor
Mounting height Ceiling, up to 16 m (52 ft)
Presence channels 5, independently configurable
Inputs – digital mode 3 inputs for dry (potential-free) contacts on rear connector
Input – analog mode 1 of the 3 inputs for NTC probe TS00A01ACC / TS00B01ACC
Thermostat 2-stage with integrated PI controller
Logic blocks 12
Degree of protection IP54
Mounting accessory PD54E00ACC
Finish White
ETS application Eelectron application program (download from eelectron.com)
Manufacturer part no. PD54E09KNX

Related Products

PD54E09KNX-3 (same detector in black). Mounting accessory: PD54E00ACC (white) / PD54E00ACC-3 (black). IP20 High Bay ceiling version: PD00E09KNX / PD00E09KNX-3; wall-mounted Hi-Bay up to 16 m: PD00E39KNX / PD00E39KNX-3; Standard 4 m ceiling detector: PD00E01KNX / PD00E01KNX-3. Outdoor PIR for parking areas: PD00F01KNX. Probes: TS00A01ACC, TS00B01ACC.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
