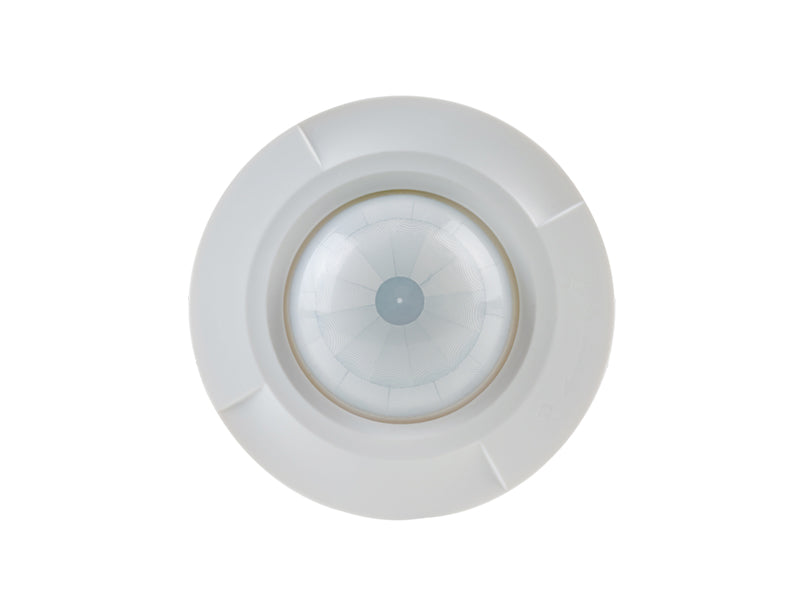

Eelectron PD02X02CON Presence Detector ⌀24 m

The Eelectron PD02X02CON is a conventional 220–240 V AC ceiling flush-mount PIR presence and brightness sensor with two channels and a wide detection area of approx. 24 m (79 ft) diameter at 2.5 m (8 ft) mounting height. Channel 1 (LS) switches 230 V lighting directly — up to 2000 W incandescent or 600 VA LED — while channel 2 (C1–C2) is a 5 A dry contact intended for HVAC or for interfacing a KNX or other automation bus through a binary input, independent of the lux setting. It is a practical hybrid for corridors, parking garages, warehouses and large rooms where the lights are switched locally but occupancy must still be reported to the building system.

Hold times are set separately per channel (Time 1 short pulse–30 min/OFF for lighting, Time 2 10 s–60 min for the contact), the lux threshold has 7 steps from 10 to 2000 lux plus daylight and teach-in modes, and sensitivity has 11 steps. A short-pulse staircase-timer mode, a presence function that switches the load off when daylight exceeds the threshold for 5 minutes, and a test LED are included. Up to 10 slave sensors can extend coverage, and an IR remote is optional. Mount with spring clips in a ceiling cut-out or use the PD02X01ACC surface enclosure.

Key Features

• Conventional 2-channel PIR presence and brightness sensor, 220–240 V AC ±10 %, 50/60 Hz
• Detection range approx. ø 24 m (79 ft) / 360° at 2.5 m (8 ft) height
• Load 1 (LS) lighting: 2000 W incandescent, 1000 W HV halogen, 1000 VA LV halogen, 750 VA fluorescent, 600 VA LED / energy-saving
• Load 2 (C1–C2) dry contact: max. 5 A at 12–250 V AC (cos φ = 1) or 5 A at 5–30 V DC — ideal for a KNX binary input or HVAC
• Time 1 (lighting): short pulse / 30 s / 1 / 5 / 15 / 30 min / OFF; Time 2 (contact): 10 s / 1 / 5 / 10 / 20 / 30 / 60 min
• Lux threshold 10 / 100 / 500 / 1000 / 2000 lux, daylight or teach-in (Load 1 only); sensitivity 11 steps
• Short-pulse staircase mode (1 s on / 9 s off), presence function, test LED, IR remote programmable (optional)
• Up to 10 slave sensors can be connected to extend the detection area
• Ceiling flush mounting with spring clips; IP20; operating temperature −20…+45 °C
• Supplied with detector, lens shield and instruction manual

Technical Specifications

Related Products

PD02X01CON (ø 12 m, single lighting channel). Surface-mounting enclosure PD02X01ACC. KNX binary inputs for channel 2: Eelectron input modules. Bus-based wide-range alternative: PD00E20KNX (KNX).

CE certified; rated 220–240 V AC — not UL/NRTL listed and not rated for 120 V US circuits; verify local code requirements before specifying in US installations.
