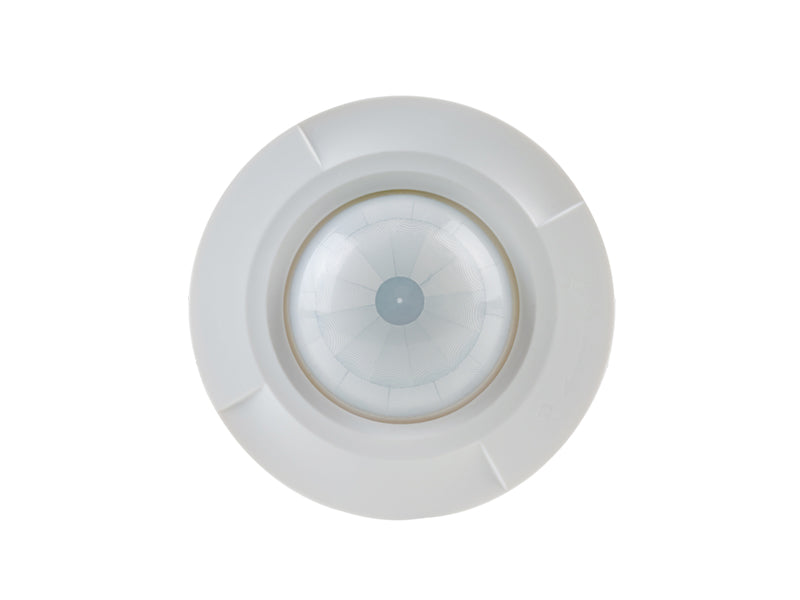

Eelectron PD02X01CON Presence Detector ⌀12 m
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
⚡
Mains Voltage · No US Cert
This device operates with or switches mains voltage (120/240VAC) and
has not been certified by an NRTL. USA installation requires a Field
Evaluation by a recognized laboratory and explicit AHJ approval.
Regular price
$86.90 USD
Regular price
-27%
$118.72 USD
Sale price
$86.90 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The Eelectron PD02X01CON is a conventional (non-bus) ceiling flush-mount PIR presence and brightness detector rated for 220–240 V AC, with a detection area of approx. 12 m (39 ft) diameter. It switches a lighting load directly: the load turns on when movement is detected and ambient light is below the set lux threshold, and turns off automatically once no movement has been seen for the pre-set delay. It is the low-cost stand-alone option for homes, offices, conference rooms, classrooms, hotel corridors and underground parking where no KNX or DALI control is present.
Lux threshold and hold time are set by on-board potentiometers or by the optional IR remote, so a single device delivers automatic on/off lighting control and energy savings with minimal commissioning. The PD02X01ACC surface-mounting enclosure is available for solid ceilings. For a larger 24 m pattern and a second, dry-contact channel that can feed a KNX binary input, see the PD02X02CON.
Key Features
- Conventional PIR presence and brightness detector, 220–240 V AC — no bus required
- Ceiling flush mounting; detection area approx. ø 12 m (39 ft)
- Load switched on by movement when ambient light is below the lux setting; off after the pre-set delay with no movement
- Lux and time values set by potentiometers (VR) or optional IR remote control
- Applications: homes, offices, conference rooms, classrooms, hotel corridors, underground parking
- Surface-mounting enclosure PD02X01ACC available
- Rated for 220–240 V AC mains only — not suitable for 120 V circuits
Technical Specifications
| Type | Conventional PIR presence and brightness detector, ceiling flush mount |
| Rated voltage | 220–240 V AC (see datasheet) |
| Detection area | Approx. ø 12 m (39 ft) |
| Sensors | PIR; brightness (lux) sensor |
| Settings | Lux threshold and delay time via potentiometers or IR remote (optional) |
| Mounting | Ceiling, flush; surface enclosure PD02X01ACC optional |
| Weight | 0.18 kg (0.40 lb) |
| Manufacturer part no. / GTIN | PD02X01CON / 8054144521626 |
Related Products
PD02X02CON (ø 24 m, 2 channels with dry contact for KNX). Surface-mounting enclosure PD02X01ACC. Bus-based alternatives: PD00E01KNX (KNX), PD00A01DL2-1 (DALI-2).
CE certified; rated 220–240 V AC — not UL/NRTL listed and not rated for 120 V US circuits; verify local code requirements before specifying in US installations.
Datasheet (PDF) · Available to order.
