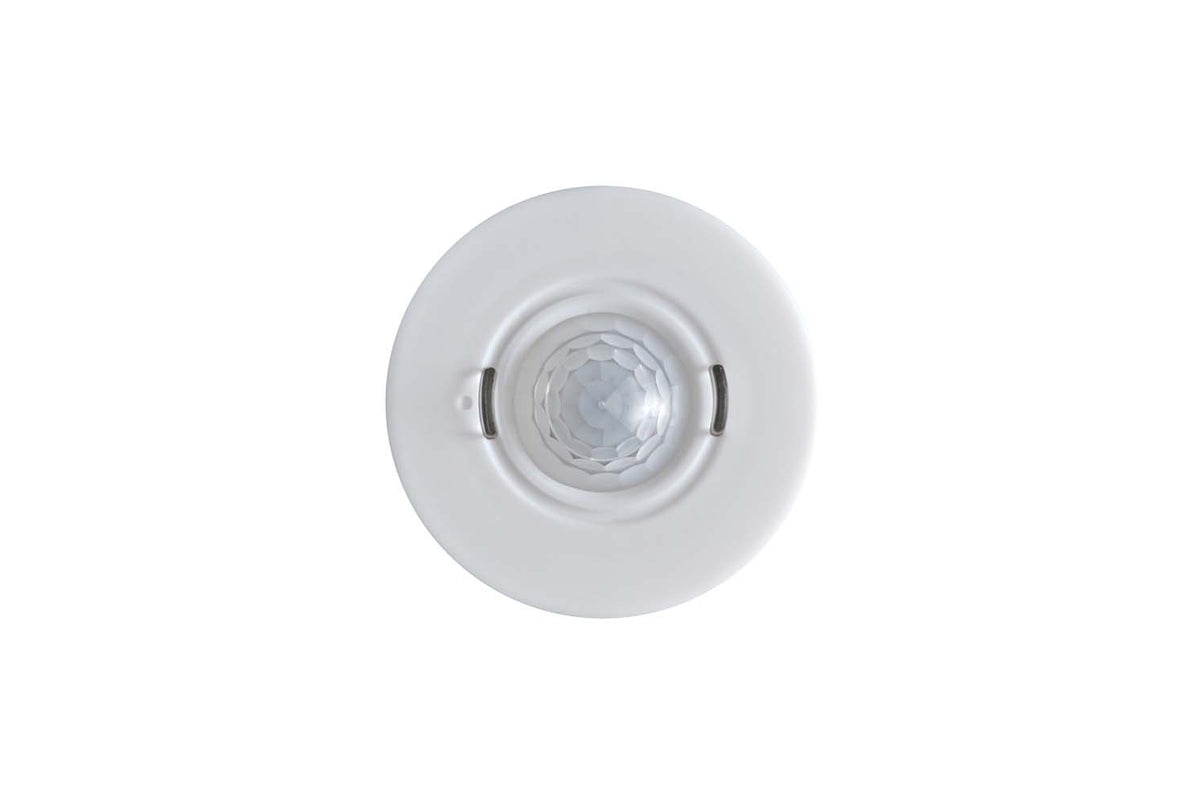

The Eelectron PD00M01KNX is a MicroFL mini KNX presence detector in white with a round lens — a 35 mm (1.4 in) diameter sensor for ceiling heights up to 4 m (13 ft) that practically disappears into a recessed downlight layout, a plaster ceiling or a luminaire trim. It brings PIR presence detection and an illuminance sensor to boutique hotel rooms, residences, executive offices and showrooms where a full-size detector would be visually intrusive.

Five independently configurable presence channels serve lighting, HVAC and monitoring with different timings, constant-light control is available with ETS correction via the Sensor Calibration Tool DCA, and 8 logic blocks handle thresholds, algebra and dew-point calculation. The Circadian Rhythm function imposes brightness and colour-temperature curves on tunable-white luminaires, and the Virtual Holder logic combines door-contact data with presence for accurate hotel-room occupancy. The device supports KNX Data Secure. The PD00M01KNX-3 is the black variant of the same detector; PD00M06KNX is the square flat-lens sibling.

Key Features

  • Mini ceiling presence detector, ø 35 × 53 mm (1.4 × 2.1 in), round lens, for mounting heights up to 4 m (13 ft)
  • PIR presence detection with 5 independently configurable channels: presence with/without light control, constant illuminance, automatic or semi-automatic
  • Integrated illuminance sensor 50–20,000 lux; calibration via ETS and the Sensor Calibration Tool (DCA)
  • Approx. 14 m (46 ft) detection diameter / 7 m (23 ft) frontal reach at 4 m mounting height, 360°
  • 8 logic blocks with logical, threshold, algebraic and conditional operators; predefined proportional and dew-point algorithms
  • Circadian Rhythm logic for brightness and colour-temperature curves
  • Virtual Holder logic for hospitality occupancy management
  • KNX Data Secure communication; KNX interface integrated
  • Bus-powered, ≤ 5 mA; 360 group addresses / 420 associations
  • IP20 PC-ABS housing, approx. 60 g; finish: white

Technical Specifications

Power supply Via KNX bus, 21–32 V DC (SELV)
Current consumption ≤ 5 mA
Connections KNX bus connector
Sensors PIR presence detection (round lens); illuminance sensor
Illuminance sensor 50–20,000 lux
Detection area Approx. ø 14 m (46 ft), 360°, at 4 m (13 ft) mounting height
Mounting height Ceiling, up to 4 m (13 ft)
Presence channels 5, independently configurable
Logic blocks 8
Security KNX Data Secure
Group addresses / associations 360 / 420
Enclosure / protection PC-ABS; IP20 (EN 60529)
Operating temperature −5…+45 °C (23…113 °F); storage −20…+55 °C; max. 90 % RH non-condensing; indoor use
Dimensions (ø × H) 35 × 53 mm (1.4 × 2.1 in)
Weight 0.1 kg (0.22 lb) (datasheet: approx. 60 g)
Standards EN IEC 63044-3; EN IEC 63044-5-1 / -5-2; EN 50491-2; LVD 2014/35/EU; EMC 2014/30/EU; KNX certified
Finish White
ETS application Eelectron PD00M0x application with Sensor Calibration Tool DCA (download from eelectron.com)
Manufacturer part no. / GTIN PD00M01KNX / 8054144528090

Related Products

PD00M01KNX-3 (same detector in black). PD00M06KNX / PD00M06KNX-3 (square flat-lens version). Full-size ceiling detectors with inputs and thermostat: PD00E01KNX / PD00E01KNX-3 (Standard), PD00E02KNX (Multi), PD00E03KNX (Space). Wall-mount: PD00E31KNX / PD00E31KNX-3.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
