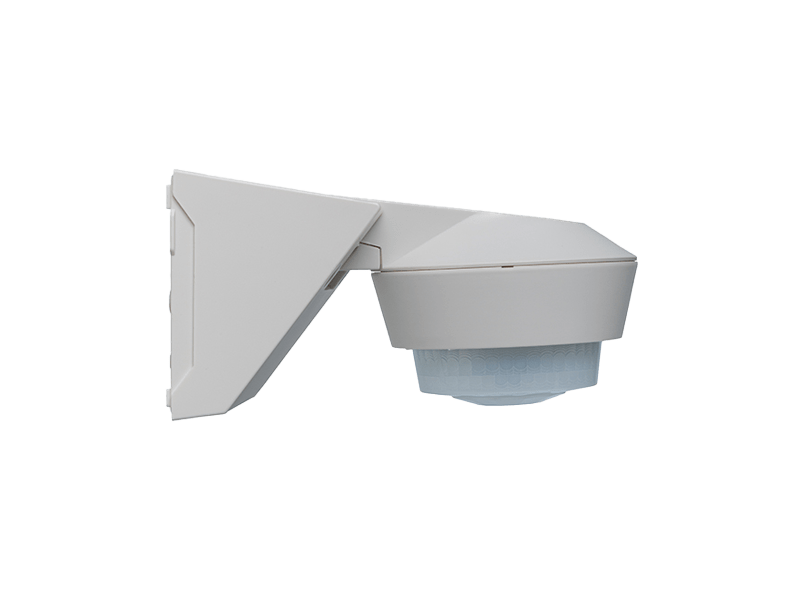

Eelectron PD00F01KNX KNX Outdoor PIR Motion Detector IP54, Parking Areas – White
Eelectron PD00F01KNX KNX Outdoor PIR Motion Detector IP54, Parking Areas – White

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eelectron

Eelectron PD00F01KNX KNX Outdoor PIR Motion Detector IP54, Parking Areas – White

SKU: PD00F01KNX
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$215.90 USD
-8% $235.20 USD $215.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The Eelectron PD00F01KNX is a KNX outdoor PIR motion detector in white, rated IP55 for wall mounting and IP54 for ceiling mounting, developed for parking areas, garage entrances, driveways, loading yards, covered walkways and building perimeters. It brings motion-based control of lighting, HVAC and alarm functions natively onto the KNX TP bus, with no gateway or separate relay stage, so parking lighting can be switched or dimmed by movement and ambient light from the same ETS project as the rest of the building.

The lens covers 360° up to 32 m (105 ft) across — a 16 m (52 ft) radius at a 2.5 m (8.2 ft) mounting height — with sensitivity adjustable in four levels in ETS. Five output channels are provided: two for lighting, two for HVAC and one dedicated to alarm, with a configurable number of movements required to trigger the alarm. An integrated light sensor (10–2000 lux) enables illuminance-dependent logic, constant light control, a 2-level Standby Light mode and intelligent delays against rapid brightness changes. Auto/semi-auto modes, Test mode, Master/Slave operation, timings and thresholds are all set in ETS. Installation uses an anti-drop base, removable terminals and wall, ceiling, corner or European junction-box mounting; three lens shields are supplied to mask the detection area.

Key Features

  • Outdoor PIR motion detector for KNX TP; IP55 wall-mounted, IP54 ceiling-mounted
  • 360° lens, coverage up to 32 m (105 ft) diameter — 16 m (52 ft) radius at 2.5 m (8.2 ft) height
  • PIR sensitivity adjustable in 4 levels via ETS; three lens shields supplied to trim the detection area
  • 5 output channels: 2 lighting, 2 HVAC, 1 alarm (configurable number of movements to trigger)
  • Ambient light measurement 10–2000 lux: illuminance thresholds, constant light control, 2-level Standby Light mode, intelligent delays
  • Auto / semi-auto modes, Test mode, Master/Slave operation, timing parameters and thresholds configured in ETS
  • Bus-powered: 21–30 V DC, approx. 10 mA operating / 5 mA standby
  • Anti-drop base, removable terminals; wall, ceiling, corner or European junction-box mounting
  • White weather-resistant plastic housing

Technical Specifications

Power supply Via KNX bus, 21–30 V DC
Current consumption approx. 10 mA operating; 5 mA standby
Bus KNX TP
Sensor PIR motion detection, 360° lens; ambient light sensor
Detection range up to 32 m (105 ft) diameter — 16 m (52 ft) radius at 2.5 m (8.2 ft) mounting height
Sensitivity 4 levels, adjustable in ETS
Illuminance measurement 10–2000 lux
Output channels 5: 2 lighting, 2 HVAC, 1 alarm
Operating modes Auto / semi-auto, Test, Master/Slave; constant light control; Standby Light (2-level)
Degree of protection IP55 wall mounting; IP54 ceiling mounting
Mounting Wall, ceiling, corner or European junction box; anti-drop base; removable terminals
Supplied accessories 3 lens shields
Enclosure White plastic
ETS application Eelectron PD00F01KNX application (download from eelectron.com)
Manufacturer part no. PD00F01KNX
