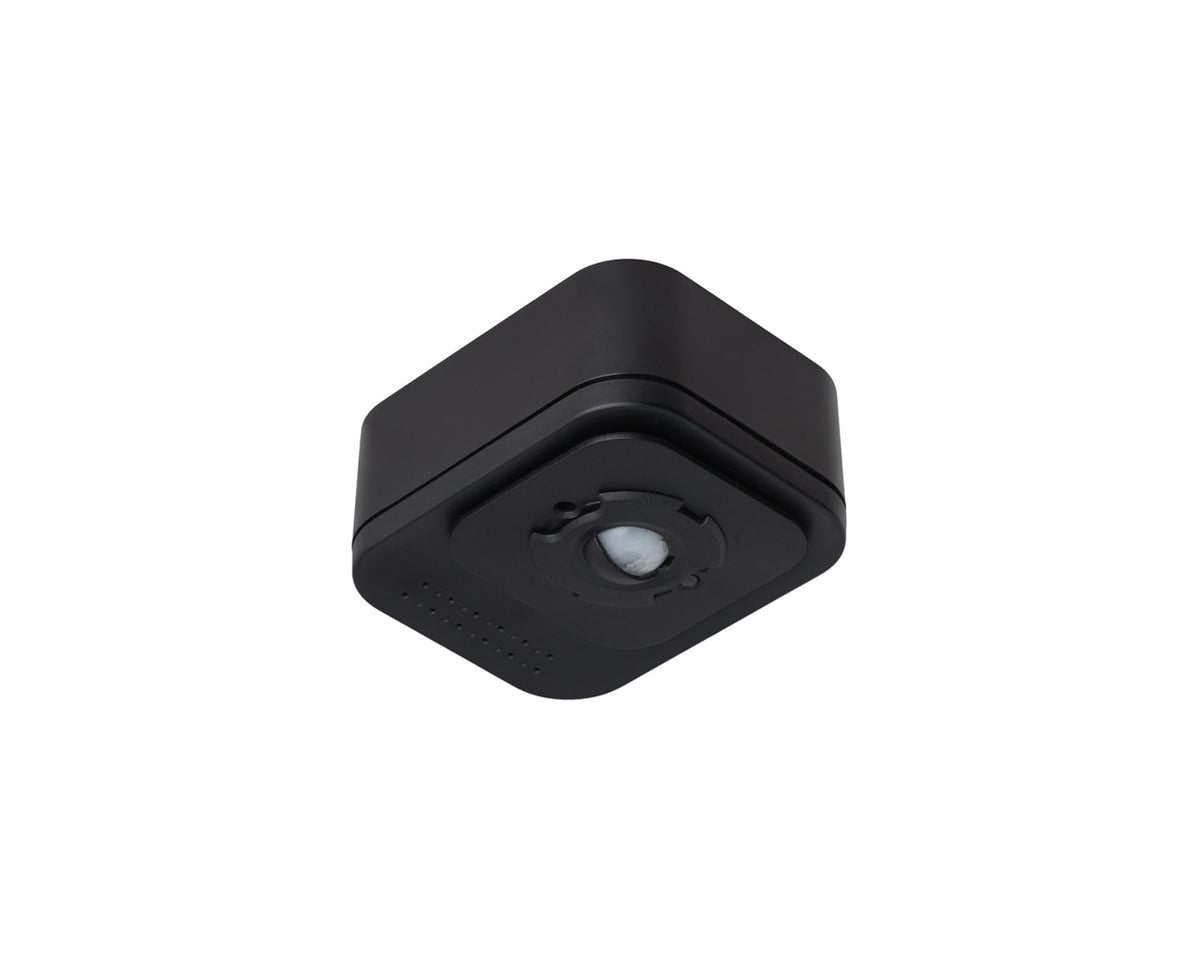

Eelectron PD00E39KNX-3 KNX Presence Detector Corridor, Lighting Control – black
Eelectron PD00E39KNX-3 KNX Presence Detector Corridor, Lighting Control – black

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eelectron

Eelectron PD00E39KNX-3 KNX Presence Detector Corridor, Lighting Control – black

SKU: PD00E39KNX-3
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$158.90 USD
-26% $216.16 USD $158.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The Eelectron PD00E39KNX-3 is the Hi-Bay version of Eelectron’s wall-mounted KNX presence detector range in black, rated for mounting heights up to 16 m (52 ft). It is the answer for warehouses, distribution centres, production halls, sports halls, atriums and loading docks where luminaires hang high and a ceiling-mounted sensor is out of reach for installation and maintenance: the 73 × 58 × 43 mm housing mounts on a wall or column and covers the hall from the side.

An integrated illuminance sensor supports daylight-dependent and constant-light control of high-bay LED fixtures, 5 independent presence channels can switch or dim luminaire groups with different timings, and 3 rear dry-contact inputs are available, one switchable to an NTC probe for the on-board 2-stage PI thermostat. Sensitivity is adjustable in ETS and the lux reading can be corrected against a floor-level measurement. Twelve logic blocks, Circadian Rhythm and Virtual Holder logics are included; configuration uses the ETS DCA. The white version is PD00E39KNX.

Key Features

  • Wall-mounted Hi-Bay PIR presence detector for mounting heights up to 16 m (52 ft)
  • 5 independently configurable presence channels: presence with/without light control, constant illuminance, automatic or semi-automatic
  • Integrated illuminance sensor with ETS correction parameters for calibration at floor level
  • 3 rear digital inputs for dry-contact pushbuttons or switches
  • One input configurable as analog for NTC probes TS01AxxACC / TS01BxxACC / TS01CxxACC / TS01DxxACC
  • Integrated 2-stage thermostat with PI controller
  • 12 logic blocks; Circadian Rhythm lighting logic; Virtual Holder occupancy logic
  • Adjustable PIR sensitivity levels in ETS
  • Compact PC-ABS housing 73 × 58 × 43 mm (2.9 × 2.3 × 1.7 in), approx. 80 g
  • Bus-powered, ≤ 10 mA; 250 group addresses / 250 associations
  • Finish: black

Technical Specifications

Power supply Via KNX bus, 21–32 V DC (SELV)
Current consumption ≤ 10 mA
Connections KNX bus connector; rear 6-pole cabled connector, AWG 24, 100 mm (4 in) leads
Inputs – digital mode 3 inputs for dry contacts; scanning voltage 3.3 V DC; max. cable length 30 m (98 ft), twisted
Input – analog mode 1 input for Eelectron NTC probes TS01AxxACC / TS01BxxACC / TS01CxxACC / TS01DxxACC
Sensors PIR presence detection; illuminance sensor
Mounting height Wall, up to 16 m (52 ft) – Hi-Bay
Presence channels 5, independently configurable
Thermostat 2-stage with integrated PI controller
Logic blocks 12
Group addresses / associations 250 / 250
Enclosure / protection PC-ABS; IP20 (EN 60529)
Operating temperature −5…+45 °C (23…113 °F); storage −20…+55 °C; max. 90 % RH non-condensing; indoor use
Dimensions (L × W × H) 73 × 58 × 43 mm (2.9 × 2.3 × 1.7 in)
Weight 0.1 kg (0.22 lb) (datasheet: approx. 80 g)
Standards EN IEC 63044-3; EN IEC 63044-5-1 / -5-2; EN 50491-2; LVD 2014/35/EU; EMC 2014/30/EU
Finish Black
ETS application Eelectron PD00E3x application with DCA (download from eelectron.com)
Manufacturer part no. / GTIN PD00E39KNX-3 / 8054144528168

Related Products

PD00E39KNX (same detector in white). Standard wall version up to 4 m: PD00E31KNX / PD00E31KNX-3. Ceiling High Bay: PD00E09KNX / PD00E09KNX-3. Corridor ceiling detector: PD00E21KNX / PD00E21KNX-3. Probes: TS01A04ACC, TS01B04ACC, TS01C01ACC, TS01D01ACC-1 / -3.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
