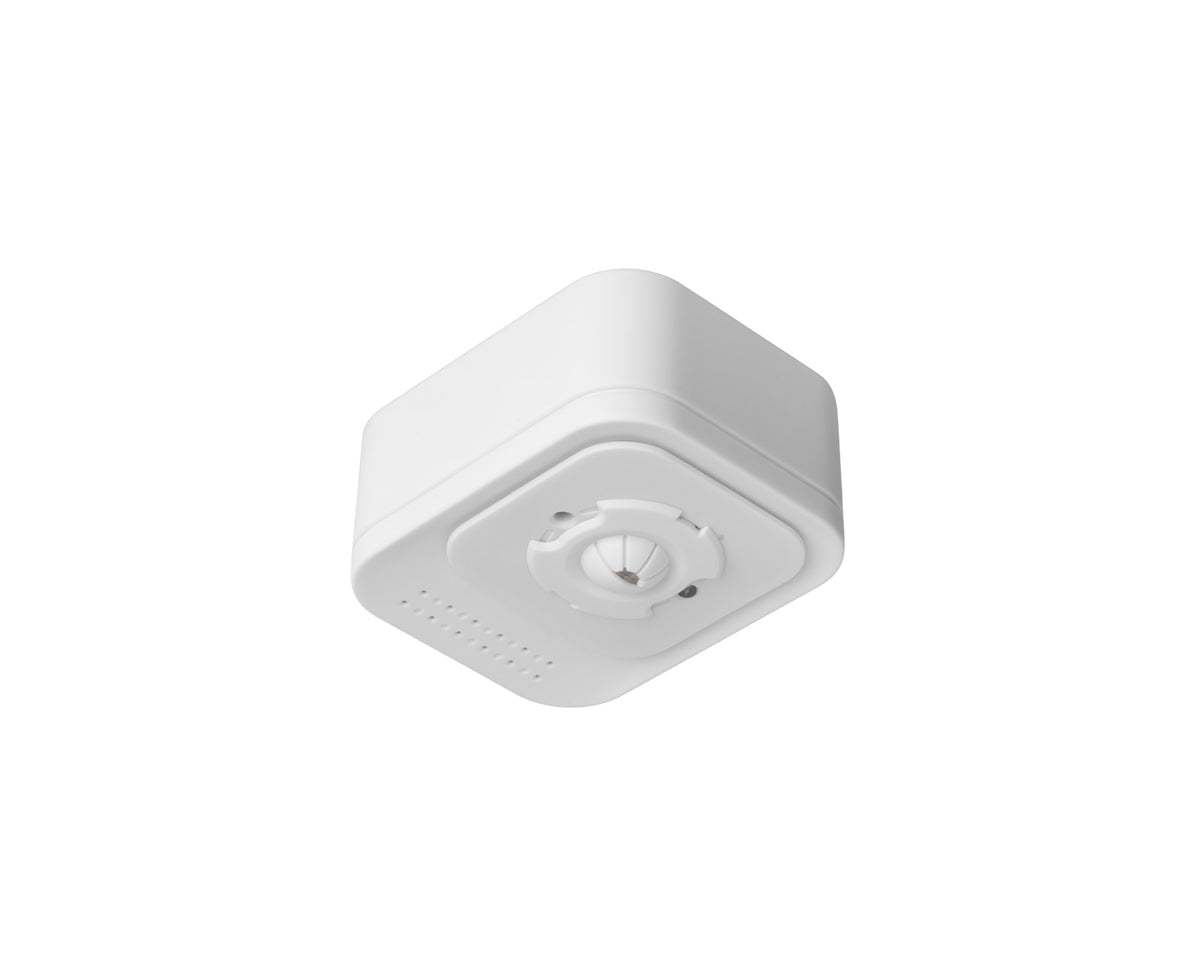

Eelectron PD00E31KNX KNX presence detector Lighting Control – white
Eelectron PD00E31KNX KNX presence detector Lighting Control – white

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eelectron

Eelectron PD00E31KNX KNX presence detector Lighting Control – white

SKU: PD00E31KNX
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$138.90 USD
-27% $189.28 USD $138.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The Eelectron PD00E31KNX is a wall-mounted KNX presence detector with lighting control in white, the Standard version of Eelectron’s new wall range for mounting heights up to 4 m (13 ft). Where a ceiling sensor is impractical — exposed concrete soffits, high-gloss or acoustic ceilings, retrofits with no ceiling access — the compact 73 × 58 × 43 mm housing sits on the wall and looks across the room, making it a practical choice for corridors, stairwells, storerooms, workshops and classrooms.

The PIR element drives 5 independently configurable presence channels and an integrated illuminance sensor enables daylight-dependent and constant-light control, with ETS correction parameters so the wall reading can be calibrated to the work plane. Three rear dry-contact inputs are provided, one of which can be set as an analog NTC probe input for the built-in 2-stage PI thermostat. Twelve logic blocks, Circadian Rhythm tunable-white curves and the Virtual Holder hotel-room logic are included, and configuration uses the ETS DCA. The black version is PD00E31KNX-3.

Key Features

  • Wall-mounted PIR presence detector for mounting heights up to 4 m (13 ft)
  • 5 independently configurable presence channels: presence with/without light control, constant illuminance, automatic or semi-automatic
  • Integrated illuminance sensor for ambient lighting control with ETS correction parameters
  • 3 rear digital inputs for dry-contact pushbuttons or switches (on/off, dimming, shutters/blinds, scenes, sequences, step commands)
  • One input configurable as analog for NTC probes TS01AxxACC / TS01BxxACC / TS01CxxACC / TS01DxxACC — temperature to bus or full thermostat module
  • Integrated 2-stage thermostat with PI controller for heating/cooling equipment, valves, 2- and 4-pipe fan coils
  • 12 logic blocks with logical, threshold, algebraic and conditional operators; predefined proportional and dew-point algorithms
  • Circadian Rhythm lighting logic; Virtual Holder occupancy logic for hospitality
  • Compact PC-ABS housing 73 × 58 × 43 mm (2.9 × 2.3 × 1.7 in), approx. 80 g
  • Bus-powered, ≤ 10 mA; 250 group addresses / 250 associations
  • Finish: white

Technical Specifications

Power supply Via KNX bus, 21–32 V DC (SELV)
Current consumption ≤ 10 mA
Connections KNX bus connector; rear 6-pole cabled connector, AWG 24, 100 mm (4 in) leads
Inputs – digital mode 3 inputs for dry contacts; scanning voltage 3.3 V DC; max. cable length 30 m (98 ft), twisted
Input – analog mode 1 input for Eelectron NTC probes TS01AxxACC / TS01BxxACC / TS01CxxACC / TS01DxxACC
Sensors PIR presence detection; illuminance sensor
Mounting height Wall, up to 4 m (13 ft)
Presence channels 5, independently configurable
Thermostat 2-stage with integrated PI controller
Logic blocks 12
Group addresses / associations 250 / 250
Enclosure / protection PC-ABS; IP20 (EN 60529)
Operating temperature −5…+45 °C (23…113 °F); storage −20…+55 °C; max. 90 % RH non-condensing; indoor use
Dimensions (L × W × H) 73 × 58 × 43 mm (2.9 × 2.3 × 1.7 in)
Weight 0.1 kg (0.22 lb) (datasheet: approx. 80 g)
Standards EN IEC 63044-3; EN IEC 63044-5-1 / -5-2; EN 50491-2; LVD 2014/35/EU; EMC 2014/30/EU
Finish White
ETS application Eelectron PD00E3x application with DCA (download from eelectron.com)
Manufacturer part no. / GTIN PD00E31KNX / 8054144528137

Related Products

PD00E31KNX-3 (same detector in black). Hi-Bay wall version up to 16 m: PD00E39KNX / PD00E39KNX-3. Ceiling Standard: PD00E01KNX / PD00E01KNX-3. Mini ceiling detectors: PD00M01KNX / PD00M06KNX. Probes: TS01A04ACC, TS01B04ACC, TS01C01ACC, TS01D01ACC-1 / -3.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.

Datasheet (PDF) · Available to order.
