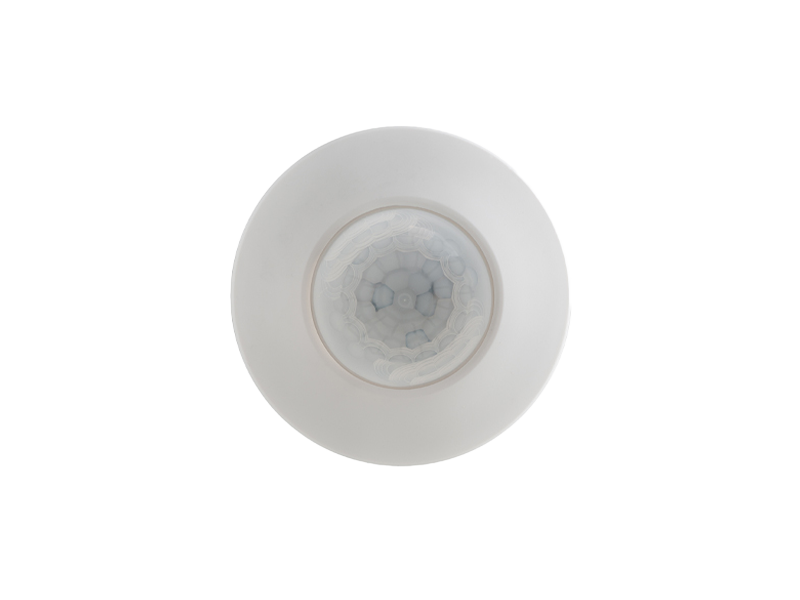

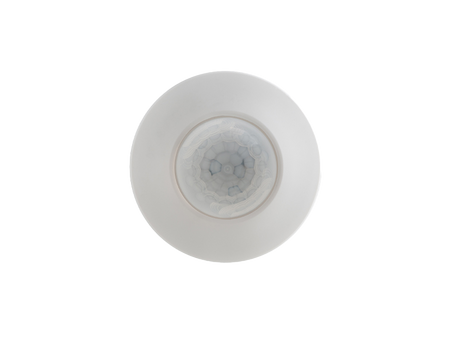

Eelectron PD00E21KNX KNX presence detector Corridor – white
Eelectron PD00E21KNX KNX presence detector Corridor – white

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eelectron

Eelectron PD00E21KNX KNX presence detector Corridor – white

SKU: PD00E21KNX
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$191.90 USD
-26% $260.96 USD $191.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The Eelectron PD00E21KNX is the Corridor KNX presence and motion detector in white, designed for long, narrow spaces — hotel and hospital corridors, office hallways, warehouse aisles, underground car-park lanes — where a round-pattern sensor wastes most of its coverage. Two PIR sensing elements are arranged for a reach of roughly 40 m (131 ft) along the corridor and 5 m (16 ft) across at 2.5 m (8 ft) mounting height, and each element can be given its own behaviour in ETS, for example to switch luminaire groups ahead of the person walking.

An integrated illuminance sensor supports daylight-dependent and constant-light control, 5 independent presence channels serve lighting, HVAC and monitoring with different timings, and a rear connector provides 2 dry-contact inputs with the second switchable to an NTC probe for the on-board 2-stage PI thermostat. A plug-in port accepts the SM03E01/02/03 air-quality sensors. Mounting hardware for junction box and false ceiling is in the box; PD00E05ACC is the optional surface enclosure. The black version is PD00E21KNX-3.

Key Features

  • 2 distinct PIR sensing elements optimised for corridors; behaviours assignable per element in ETS
  • Approx. 40 m × 5 m (131 ft × 16 ft) motion coverage and approx. 16 m × 3 m (52 ft × 10 ft) presence coverage at 2.5 m (8 ft) mounting height
  • 5 independently configurable presence channels: presence with/without light control, constant illuminance, automatic or semi-automatic
  • Integrated illuminance sensor with ETS correction parameters
  • 2 rear digital inputs for dry contacts; input 2 configurable as analog for NTC probes TS01A01ACC / TS01B01ACC / TS01D01ACC
  • Integrated 2-stage thermostat with PI controller
  • Plug-in sensor port for SM03E01ACC, SM03E02ACC or SM03E03ACC air-quality modules
  • 12 logic blocks; Circadian Rhythm lighting logic; Virtual Holder occupancy logic
  • Walk-test mode and approx. 60 s warm-up
  • Supplied with mounting accessories for ceiling box (68 mm / 2.7 in cut-out with spring clips) and false ceiling; surface enclosure PD00E05ACC optional
  • 250 group addresses / 250 associations
  • Finish: white

Technical Specifications

Power supply Via KNX bus (bus-powered KNX device)
Sensing elements 2 PIR elements, independently parameterizable
Detection coverage Approx. 40 m × 5 m (131 × 16 ft) motion; approx. 16 m × 3 m (52 × 10 ft) presence, at 2.5 m (8 ft) mounting height
Illuminance sensor Integrated, for lighting control
Inputs 2 rear digital inputs for dry contacts; input 2 configurable as analog NTC probe input (TS01A01ACC −20…+100 °C, TS01B01ACC −50…+60 °C, TS01D01ACC −5…+45 °C)
Plug-in sensor port SM03E01ACC / SM03E02ACC / SM03E03ACC
Presence channels 5, independently configurable
Thermostat 2-stage with integrated PI controller
Logic blocks 12
Mounting Flush in European junction box, false ceiling with spring clips (68 mm / 2.7 in hole, 20–35 mm panel), or surface box PD00E05ACC (knockouts 56–80 mm)
Group addresses / associations 250 / 250
Finish White
Weight 0.24 kg (0.53 lb)
ETS application Eelectron PD00E2x application (download from eelectron.com)
Manufacturer part no. / GTIN PD00E21KNX / 8054144521619

Related Products

PD00E21KNX-3 (same detector in black). Wide Range version with 3 elements and ø 24 m coverage: PD00E20KNX / PD00E20KNX-3. Wall-mounted corridor/hi-bay alternative: PD00E39KNX / PD00E39KNX-3. Accessories: PD00E05ACC (white) / PD00E05ACC-3 (black) surface-mounting enclosure; plug-in sensors SM03E01ACC (CO2 + temperature), SM03E02ACC / SM03E02ACC-3 (VOC + eCO2 + temperature), SM03E03ACC / SM03E03ACC-3 (CO2 + VOC + temperature). Probes: TS01A04ACC, TS01B04ACC, TS01D01ACC-1 / -3.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
