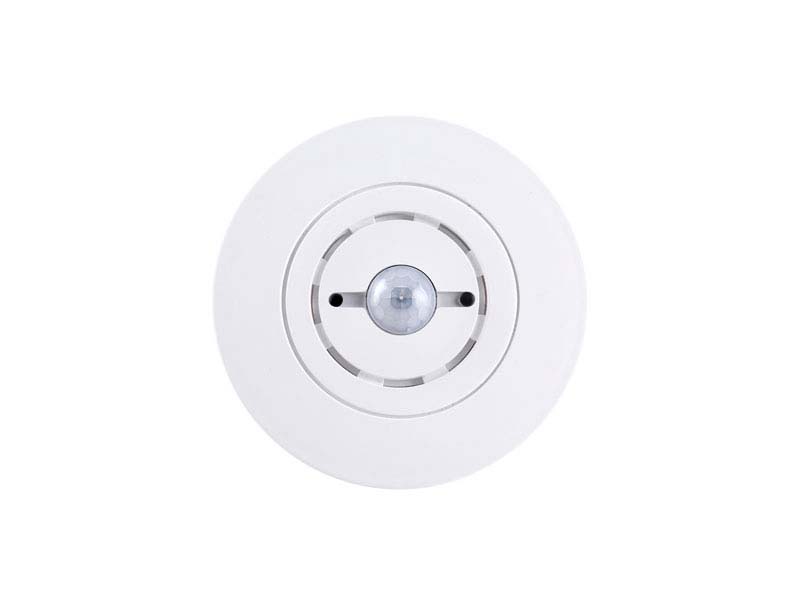

Eelectron PD00E13KNX KNX presence detector Space Sensor, BLE Beacon – white
Eelectron PD00E13KNX KNX presence detector Space Sensor, BLE Beacon – white

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eelectron

Eelectron PD00E13KNX KNX presence detector Space Sensor, BLE Beacon – white

SKU: PD00E13KNX
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$229.90 USD
-27% $313.60 USD $229.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The Eelectron PD00E13KNX is the Space BLE version of the KNX ceiling presence detector in white — the hospitality flagship of the range. It stacks PIR presence detection, illuminance, temperature, relative-humidity and sound sensing with the Utilization and Occupancy reporting functions, a Bluetooth Low Energy beacon and the plug-in interface for wireless electronic door locks, so one ceiling device covers lighting, climate, indoor-climate monitoring, room analytics and guest-app interaction.

The humidity sensor drives threshold-with-hysteresis humidification control; the 2-stage PI thermostat runs valves and fan coils; and the Utilization function publishes occupancy index and percentage utilization for dashboards, while the Occupancy function supplies activity-intensity data for heat maps. The BLE beacon transmits iBeacon- and Eddystone-compatible frames with adjustable interval and power. With the IC01H10DLS plug-in the device also reads door open/close events from up to 8 wireless locks. The black finish is PD00E13KNX-3.

Key Features

  • PIR presence detection with 5 independently configurable channels; sound sensor covers areas the PIR cannot see
  • Integrated illuminance (50–20,000 lux), temperature (−5…+55 °C) and relative-humidity (0–100 %RH) sensors
  • Utilization function (occupancy index, % utilization) and Occupancy function (activity intensity for heat maps)
  • Integrated BLE beacon antenna: iBeacon and Eddystone formats, configurable transmission frequency and signal strength
  • Plug-in interface for the IC01H10DLS wireless door-lock gateway (up to 8 doors) — rear inputs remain available
  • 3 rear digital inputs; one configurable as analog for NTC probes TS01A01ACC / TS01B01ACC / TS01C01ACC / TS01D01ACC
  • Integrated 2-stage thermostat with PI controller; humidity control with thresholds and hysteresis
  • 12 logic blocks; Circadian Rhythm lighting logic; Virtual Holder hotel-room occupancy logic
  • Ceiling mounting up to 4 m (13 ft); bus-powered, ≤ 5 mA; 250 group addresses / 250 associations
  • Finish: white

Technical Specifications

Power supply Via KNX bus, 21–32 V DC (SELV)
Current consumption ≤ 5 mA (≤ 10 mA with IC01H10DLS plug-in connected)
Connections KNX bus connector; rear 6-pole cabled connector, AWG 24, 100 mm leads (300 mm / 12 in version supplied with IC01H10DLS)
Inputs – digital mode 3 inputs for dry contacts; scanning voltage 3.3 V DC; max. cable length 30 m (98 ft), twisted
Input – analog mode 1 input for NTC probe TS01A01ACC (−20…+100 °C), TS01B01ACC (−50…+60 °C), TS01C01ACC (−40…+105 °C) or TS01D01ACC (−5…+45 °C); max. cable 30 m (98 ft)
Illuminance sensor 50–20,000 lux
Temperature sensor −5…+55 °C (23…131 °F); resolution 0.01 °C; tolerance typ. ±0.5 °C
Humidity sensor 0–100 %RH; resolution 0.1 %RH; tolerance typ. ±2 %RH (max. ±3 %RH)
Sensors PIR presence; illuminance; temperature; relative humidity; sound; BLE beacon
Reporting functions Utilization (occupancy index, % utilization); Occupancy (activity intensity)
Presence channels 5, independently configurable
Thermostat 2-stage with integrated PI controller
Logic blocks 12
Mounting height Ceiling, up to 4 m (13 ft)
Group addresses / associations 250 / 250
Finish White
Weight 0.11 kg (0.24 lb)
ETS application Eelectron PD00E1x application (download from eelectron.com)
Manufacturer part no. / GTIN PD00E13KNX / 8054144522395

Related Products

PD00E13KNX-3 (same detector in black). Standard BLE (presence + light + beacon): PD00E11KNX / PD00E11KNX-3. Door-lock plug-in: IC01H10DLS. Non-BLE Space: PD00E03KNX / PD00E03KNX-3. Plug-in air-quality sensors SM03E02ACC / -3 and SM03E03ACC / -3 with PD00E07ACC-1 / -3 ring. Accessories: PD00E00ACC / PD00E00ACC-3 surface enclosure, PD00E01ACC recessed frame, PD00E03ACC / PD00E03ACC-3 Swiss-box frame, PD00E06ACC-10 input cable, PD00E08ACC cable clamp.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.

Datasheet (PDF) · Available to order.
