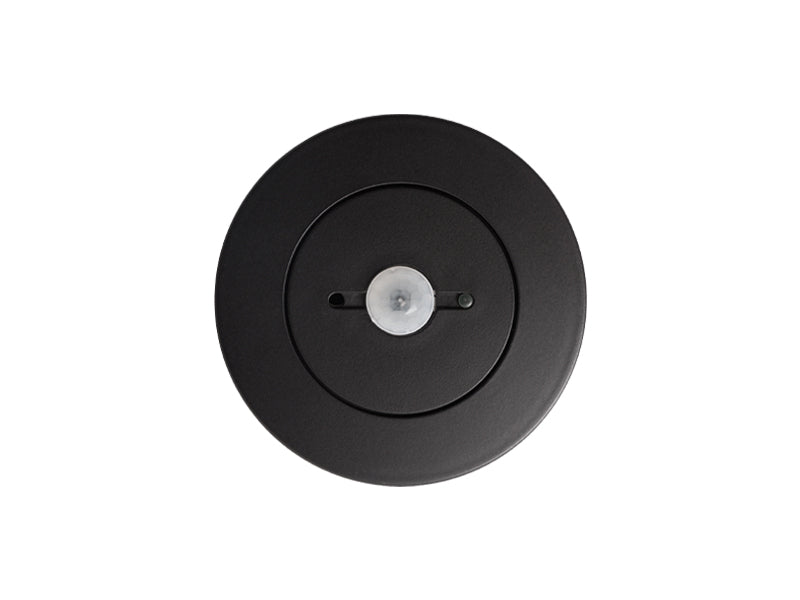

Eelectron PD00E11KNX-3 KNX presence detector Standard, BLE Beacon – black
Eelectron PD00E11KNX-3 KNX presence detector Standard, BLE Beacon – black

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eelectron

Eelectron PD00E11KNX-3 KNX presence detector Standard, BLE Beacon – black

SKU: PD00E11KNX-3
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$172.90 USD
-27% $236.32 USD $172.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The Eelectron PD00E11KNX-3 is the Standard BLE version of the KNX ceiling presence detector in black: PIR presence detection and an illuminance sensor for lighting control, plus an integrated Bluetooth Low Energy beacon antenna and a plug-in interface for wireless electronic door locks. It is built for the connected hotel room, where the same ceiling device has to manage lights and HVAC by occupancy, talk to the guest’s phone and know when the door has been opened.

The BLE beacon broadcasts in iBeacon and Eddystone formats with adjustable transmission interval and signal strength, so a hotel or workplace app can trigger room-level content or indoor positioning. With the optional IC01H10DLS plug-in the detector reads open/close events from up to 8 wireless-lock doors while keeping its 3 rear dry-contact inputs available. Five presence channels, a 2-stage PI thermostat on an NTC probe input, 12 logic blocks, Circadian Rhythm lighting and the Virtual Holder occupancy logic complete the application. The white finish is PD00E11KNX.

Key Features

  • PIR presence detection with 5 independently configurable channels (with/without light control, constant illuminance, automatic or semi-automatic)
  • Integrated illuminance sensor, 50–20,000 lux, with ETS correction for work-plane calibration
  • Integrated BLE beacon antenna: iBeacon and Eddystone data formats, configurable transmission frequency and signal strength
  • Plug-in interface for the IC01H10DLS wireless door-lock gateway (up to 8 doors) — rear inputs remain available
  • 3 rear digital inputs for dry-contact pushbuttons, switches or door contacts; one configurable as analog NTC probe input
  • Integrated 2-stage thermostat with PI controller for heating/cooling, valves, 2- and 4-pipe fan coils
  • 12 logic blocks with logical, threshold, algebraic and conditional operators; predefined proportional and dew-point algorithms
  • Circadian Rhythm logic for brightness and colour-temperature curves; Virtual Holder logic for accurate hotel-room occupancy
  • Ceiling mounting up to 4 m (13 ft); bus-powered, ≤ 5 mA
  • 250 group addresses / 250 associations
  • Finish: black

Technical Specifications

Power supply Via KNX bus, 21–32 V DC (SELV)
Current consumption ≤ 5 mA (≤ 10 mA with IC01H10DLS plug-in connected)
Connections KNX bus connector; rear 6-pole cabled connector, AWG 24, 100 mm leads (300 mm / 12 in version supplied with IC01H10DLS)
Inputs – digital mode 3 inputs for dry contacts; scanning voltage 3.3 V DC; max. cable length 30 m (98 ft), twisted
Input – analog mode 1 input for NTC probe TS01A01ACC (−20…+100 °C), TS01B01ACC (−50…+60 °C), TS01C01ACC (−40…+105 °C) or TS01D01ACC (−5…+45 °C); max. cable 30 m (98 ft)
Illuminance sensor 50–20,000 lux
Sensors PIR presence; illuminance; BLE beacon
Presence channels 5, independently configurable
Thermostat 2-stage with integrated PI controller
Logic blocks 12
Mounting height Ceiling, up to 4 m (13 ft)
Group addresses / associations 250 / 250
Finish Black
Weight 0.11 kg (0.24 lb)
ETS application Eelectron PD00E1x application (download from eelectron.com)
Manufacturer part no. / GTIN PD00E11KNX-3 / 8054144522388

Related Products

PD00E11KNX (same detector in white). Space BLE with temperature, humidity, sound and occupancy reporting: PD00E13KNX / PD00E13KNX-3. Door-lock plug-in: IC01H10DLS. Non-BLE Standard: PD00E01KNX / PD00E01KNX-3. Accessories: PD00E00ACC / PD00E00ACC-3 surface enclosure, PD00E01ACC recessed frame, PD00E03ACC / PD00E03ACC-3 Swiss-box frame, PD00E06ACC-10 10 m input cable, PD00E08ACC cable clamp. Probes: TS01A04ACC, TS01B04ACC, TS01C01ACC, TS01D01ACC-1 / -3.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
