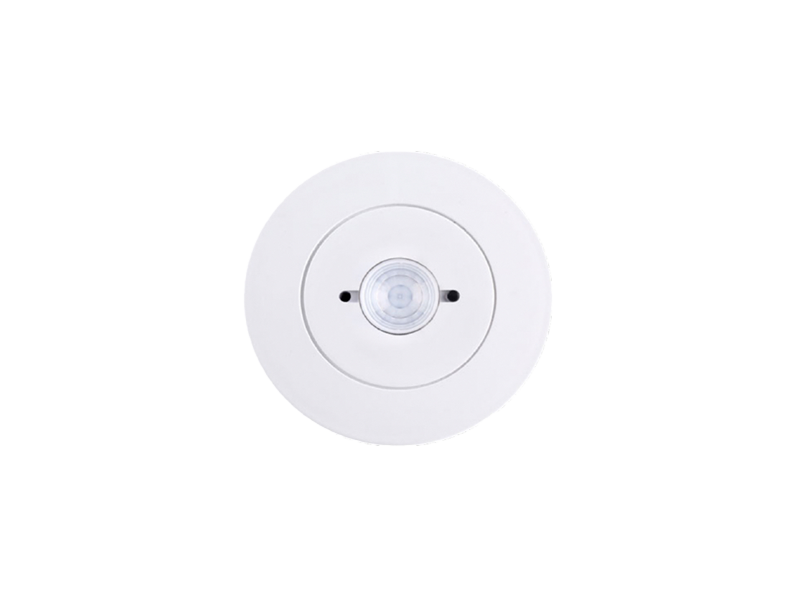

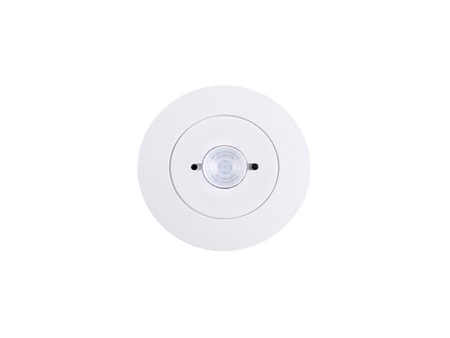

Eelectron PD00E09KNX KNX presence detector High Bay – white
Eelectron PD00E09KNX KNX presence detector High Bay – white

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eelectron

Eelectron PD00E09KNX KNX presence detector High Bay – white

SKU: PD00E09KNX
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$159.90 USD
-26% $217.28 USD $159.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The Eelectron PD00E09KNX is the High Bay version of the Multi.Sensor KNX ceiling range in white, developed for the tall spaces the standard 4 m detectors cannot cover — warehouses, logistics halls, gyms, atriums, auditoriums and industrial bays. It pairs PIR presence detection with an integrated illuminance sensor so high-bay LED luminaires can be switched or dimmed by occupancy and daylight directly from the KNX bus.

Like the rest of the range it offers 5 independently configurable presence channels, 3 rear dry-contact inputs with one switchable to an NTC temperature probe, a 2-stage PI thermostat module, 12 logic blocks and the Circadian Rhythm and Virtual Holder logics. Sensitivity is adjustable in ETS and the ceiling illuminance reading can be corrected against a lux-meter measurement at floor level. The black version is PD00E09KNX-3.

Key Features

  • High Bay lens for mounting heights beyond the 4 m (13 ft) limit of the Standard, Multi and Space versions
  • PIR presence detection with 5 independently configurable channels: presence with/without light control, constant-illuminance control, automatic or semi-automatic
  • Integrated illuminance sensor with ETS correction parameters for work-plane calibration
  • 3 rear digital inputs for dry-contact pushbuttons or switches; one configurable as analog for NTC probes TS01A01ACC / TS01B01ACC / TS01C01ACC / TS01D01ACC
  • Integrated 2-stage thermostat with PI controller
  • 12 logic blocks; Circadian Rhythm lighting logic; Virtual Holder occupancy logic
  • Adjustable PIR sensitivity levels
  • Bus-powered, ≤ 5 mA; 250 group addresses / 250 associations
  • Surface, recessed and Swiss-box mounting accessories available
  • Finish: white

Technical Specifications

Power supply Via KNX bus, 21–32 V DC (SELV)
Current consumption ≤ 5 mA
Connections KNX bus connector; rear 6-pole cabled connector (AWG 24 wires, 100 mm / 4 in leads) for the inputs
Inputs – digital mode 3 inputs for dry (potential-free) contacts; scanning voltage 3.3 V DC; max. cable length 30 m (98 ft), twisted
Input – analog mode 1 of the 3 inputs for NTC probe TS01A01ACC (−20…+100 °C), TS01B01ACC (−50…+60 °C), TS01C01ACC (−40…+105 °C) or TS01D01ACC (−5…+45 °C); max. cable 30 m (98 ft)
Sensors PIR presence detection (high-bay lens); illuminance sensor
Presence channels 5, independently configurable
Thermostat 2-stage with integrated PI controller
Logic blocks 12
Mounting Ceiling, high-bay applications (see datasheet for coverage vs. height)
Group addresses / associations 250 / 250
Finish White
Weight 0.11 kg (0.24 lb)
ETS application Eelectron PD00E0x application (download from eelectron.com)
Manufacturer part no. / GTIN PD00E09KNX / 8054144521589

Related Products

PD00E09KNX-3 (same detector in black). Standard 4 m version: PD00E01KNX / PD00E01KNX-3; wall-mounted Hi-Bay up to 16 m: PD00E39KNX / PD00E39KNX-3; Wide Range: PD00E20KNX / PD00E20KNX-3; Corridor: PD00E21KNX / PD00E21KNX-3. Accessories: PD00E00ACC (white) / PD00E00ACC-3 (black) surface-mounting enclosure; PD00E01ACC recessed box mounting frame; PD00E03ACC / PD00E03ACC-3 Swiss-box mounting frame; PD00E06ACC-10 10 m input cable; PD00E08ACC cable clamp.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.

Datasheet (PDF) · Available to order.
