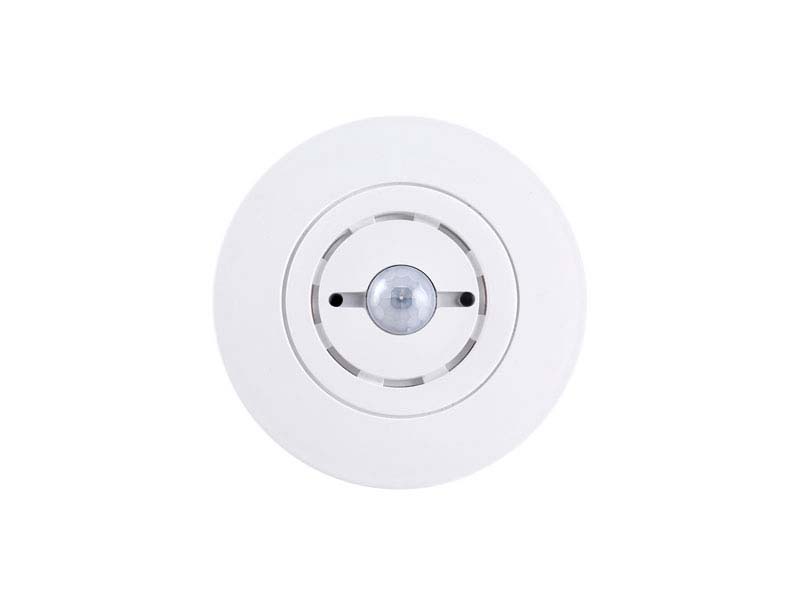

Eelectron PD00E03KNX KNX presence detector Space Sensor – white
Eelectron PD00E03KNX KNX presence detector Space Sensor – white

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eelectron

Eelectron PD00E03KNX KNX presence detector Space Sensor – white

SKU: PD00E03KNX
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$198.90 USD
-27% $271.04 USD $198.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The Eelectron PD00E03KNX is the Space version of the Multi.Sensor KNX ceiling range in white — the fullest-featured detector of the family and the one to specify when a building needs occupancy analytics, not just lighting control. It combines PIR presence detection, illuminance, temperature, humidity and sound sensing with two reporting functions: Utilization, which publishes an occupancy index and percentage utilization of the space, and Occupancy, which measures the intensity of activity so a BMS or dashboard can build heat maps of a floor.

For co-working spaces, flexible offices, hotel public areas and universities this gives facility managers hard data on how rooms are actually used, while the same device still runs daylight-dependent lighting, Circadian Rhythm tunable-white curves, a 2-stage PI thermostat and humidity control. Three rear dry-contact inputs (one switchable to an NTC probe), a smart-sensor input for CO2/VOC plug-ins, 12 logic blocks and the Virtual Holder hospitality logic round out the ETS application. The black version is PD00E03KNX-3.

Key Features

  • PIR presence detection with 5 independently configurable channels, automatic or semi-automatic activation
  • Utilization function: space status, occupancy index and % utilization for dashboards and statistics
  • Occupancy function: activity-intensity data for building heat maps
  • Integrated illuminance, temperature, relative-humidity and sound sensors
  • Humidity control with thresholds and hysteresis; 2-stage PI thermostat for valves, heating/cooling equipment, 2- and 4-pipe fan coils
  • 3 rear digital inputs; one configurable as analog for NTC probes TS01A01ACC / TS01B01ACC / TS01C01ACC / TS01D01ACC
  • Smart-sensor input for SM03E02ACC (VOC + eCO2) or SM03E03ACC (CO2 + VOC) plug-in air-quality sensors
  • 12 logic blocks with logical, threshold, algebraic and conditional operators; predefined proportional and dew-point algorithms
  • Circadian Rhythm lighting logic; Virtual Holder logic for hotel-room occupancy
  • Ceiling mounting up to 4 m (13 ft); bus-powered, ≤ 5 mA; 250 group addresses / 250 associations
  • Finish: white

Technical Specifications

Power supply Via KNX bus, 21–32 V DC (SELV)
Current consumption ≤ 5 mA
Connections KNX bus connector; rear 6-pole cabled connector (AWG 24 wires, 100 mm / 4 in leads) for the inputs
Inputs – digital mode 3 inputs for dry (potential-free) contacts; scanning voltage 3.3 V DC; max. cable length 30 m (98 ft), twisted
Input – analog mode 1 of the 3 inputs for NTC probe TS01A01ACC (−20…+100 °C), TS01B01ACC (−50…+60 °C), TS01C01ACC (−40…+105 °C) or TS01D01ACC (−5…+45 °C); max. cable 30 m (98 ft)
Sensors PIR presence; illuminance; temperature; relative humidity; sound
Reporting functions Utilization (occupancy index, % utilization); Occupancy (activity intensity / heat map data)
Plug-in sensor input SM03E02ACC / SM03E02ACC-3 or SM03E03ACC / SM03E03ACC-3
Presence channels 5, independently configurable
Thermostat 2-stage with integrated PI controller
Logic blocks 12
Mounting height Ceiling, up to 4 m (13 ft)
Group addresses / associations 250 / 250
Finish White
Weight 0.11 kg (0.24 lb)
ETS application Eelectron PD00E0x application (download from eelectron.com)
Manufacturer part no. / GTIN PD00E03KNX / 8054144521558

Related Products

PD00E03KNX-3 (same detector in black). Multi (without utilization/occupancy reporting): PD00E02KNX / PD00E02KNX-3; Standard: PD00E01KNX / PD00E01KNX-3; Basic: PD00E00KNX / PD00E00KNX-3; Space with BLE beacon and door-lock interface: PD00E13KNX / PD00E13KNX-3. Plug-in sensors: SM03E02ACC / -3, SM03E03ACC / -3 with PD00E07ACC-1 / -3 ring. Accessories: PD00E00ACC (white) / PD00E00ACC-3 (black) surface-mounting enclosure; PD00E01ACC recessed box mounting frame; PD00E03ACC / PD00E03ACC-3 Swiss-box mounting frame; PD00E06ACC-10 10 m input cable; PD00E08ACC cable clamp.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
