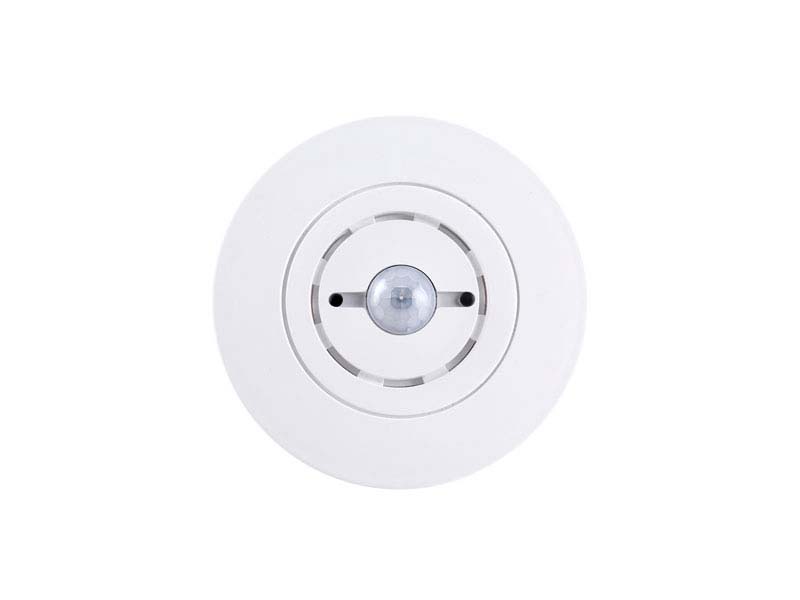

Eelectron PD00E02KNX KNX Presence Detector Multisensor – white
Eelectron PD00E02KNX KNX Presence Detector Multisensor – white

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eelectron

Eelectron PD00E02KNX KNX Presence Detector Multisensor – white

SKU: PD00E02KNX
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$189.90 USD
-27% $258.72 USD $189.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The Eelectron PD00E02KNX is the Multi.Sensor version of the KNX ceiling presence detector range in white. On top of PIR presence detection and an illuminance sensor it carries temperature and relative-humidity sensors with their own control algorithms, plus a sound sensor that keeps the occupancy state alive in rooms with alcoves or partitions the infrared element cannot see. One device therefore covers lighting, HVAC and indoor-climate monitoring for a hotel room, private office, classroom or apartment living area.

The humidity sensor drives threshold-with-hysteresis control of humidifiers and dehumidifiers; the integrated 2-stage PI thermostat drives valves and 2- or 4-pipe fan coils; and 12 logic blocks can combine any of these with the 3 rear dry-contact inputs. A smart-sensor input also accepts the SM03E02ACC (VOC + eCO2) or SM03E03ACC (true CO2) plug-in for indoor air quality. Circadian Rhythm lighting and the Virtual Holder hospitality logic complete the application. The black sibling is PD00E02KNX-3.

Key Features

  • PIR presence detection with 5 independently configurable channels (presence with/without light control, constant-illuminance control, automatic or semi-automatic)
  • Integrated illuminance, temperature and relative-humidity sensors with control algorithms
  • Sound sensor extends occupancy detection to areas not visible to the PIR element
  • Humidity control with thresholds and hysteresis for humidification / dehumidification equipment
  • 3 rear digital inputs; one configurable as analog for NTC probes TS01A01ACC / TS01B01ACC / TS01C01ACC / TS01D01ACC
  • Integrated 2-stage thermostat with PI controller for heating/cooling equipment, valves, 2- and 4-pipe fan coils
  • Smart-sensor input for plug-in air-quality sensors SM03E02ACC (VOC + eCO2 + temperature) or SM03E03ACC (CO2 + VOC + temperature)
  • 12 logic blocks with logical, threshold, algebraic and conditional operators; predefined proportional and dew-point algorithms
  • Circadian Rhythm logic for brightness and colour-temperature curves; Virtual Holder logic for hotel-room occupancy
  • Ceiling mounting up to 4 m (13 ft); bus-powered, ≤ 5 mA; 250 group addresses / 250 associations
  • Finish: white

Technical Specifications

Power supply Via KNX bus, 21–32 V DC (SELV)
Current consumption ≤ 5 mA
Connections KNX bus connector; rear 6-pole cabled connector (AWG 24 wires, 100 mm / 4 in leads) for the inputs
Inputs – digital mode 3 inputs for dry (potential-free) contacts; scanning voltage 3.3 V DC; max. cable length 30 m (98 ft), twisted
Input – analog mode 1 of the 3 inputs for NTC probe TS01A01ACC (−20…+100 °C), TS01B01ACC (−50…+60 °C), TS01C01ACC (−40…+105 °C) or TS01D01ACC (−5…+45 °C); max. cable 30 m (98 ft)
Sensors PIR presence; illuminance; temperature; relative humidity; sound
Plug-in sensor input SM03E02ACC / SM03E02ACC-3 or SM03E03ACC / SM03E03ACC-3 (wired per the plug-in datasheet)
Presence channels 5, independently configurable
Thermostat 2-stage with integrated PI controller
Logic blocks 12
Mounting height Ceiling, up to 4 m (13 ft)
Group addresses / associations 250 / 250
Finish White
Weight 0.09 kg (0.20 lb)
ETS application Eelectron PD00E0x application (download from eelectron.com)
Manufacturer part no. / GTIN PD00E02KNX / 8054144521534

Related Products

PD00E02KNX-3 (same detector in black). Standard (presence + light): PD00E01KNX / PD00E01KNX-3; Space (adds occupancy/utilization reporting): PD00E03KNX / PD00E03KNX-3; Basic: PD00E00KNX / PD00E00KNX-3. Plug-in air-quality sensors: SM03E02ACC / SM03E02ACC-3, SM03E03ACC / SM03E03ACC-3 with the PD00E07ACC-1 / PD00E07ACC-3 double squared ring. Accessories: PD00E00ACC (white) / PD00E00ACC-3 (black) surface-mounting enclosure; PD00E01ACC recessed box mounting frame; PD00E03ACC / PD00E03ACC-3 Swiss-box mounting frame; PD00E06ACC-10 10 m input cable; PD00E08ACC cable clamp. DALI-2 equivalent: PD00A02DL2-1 / -3.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
