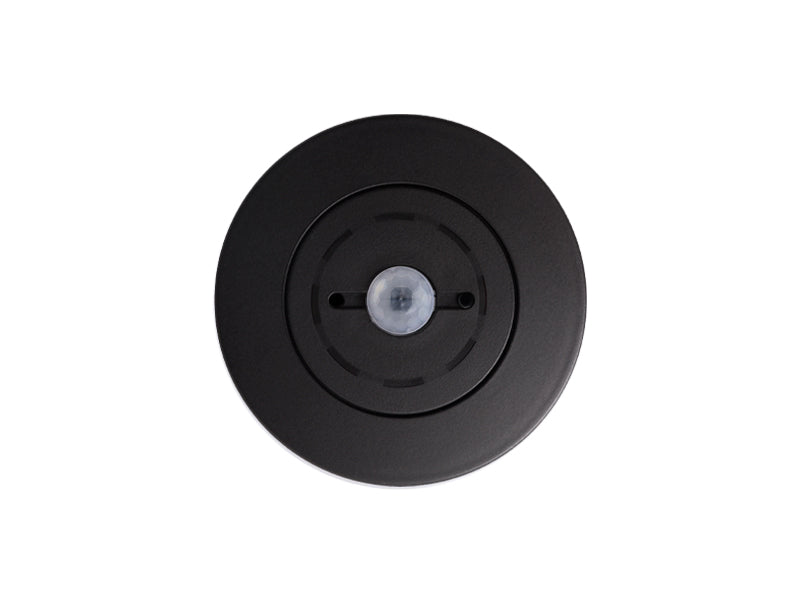

Eelectron PD00E02KNX-3 KNX presence detector Multisensor – black
Eelectron PD00E02KNX-3 KNX presence detector Multisensor – black

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eelectron

Eelectron PD00E02KNX-3 KNX presence detector Multisensor – black

SKU: PD00E02KNX-3
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$194.90 USD
-27% $265.44 USD $194.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The Eelectron PD00E02KNX-3 is the Multi.Sensor version of the KNX ceiling presence detector range in black. On top of PIR presence detection and an illuminance sensor it carries temperature and relative-humidity sensors with their own control algorithms, plus a sound sensor that keeps the occupancy state alive in rooms with alcoves or partitions the infrared element cannot see. One device therefore covers lighting, HVAC and indoor-climate monitoring for a hotel room, private office, classroom or apartment living area.

The humidity sensor drives threshold-with-hysteresis control of humidifiers and dehumidifiers; the integrated 2-stage PI thermostat drives valves and 2- or 4-pipe fan coils; and 12 logic blocks can combine any of these with the 3 rear dry-contact inputs. A smart-sensor input also accepts the SM03E02ACC (VOC + eCO2) or SM03E03ACC (true CO2) plug-in for indoor air quality. Circadian Rhythm lighting and the Virtual Holder hospitality logic complete the application. The white sibling is PD00E02KNX.

Key Features

  • PIR presence detection with 5 independently configurable channels (presence with/without light control, constant-illuminance control, automatic or semi-automatic)
  • Integrated illuminance, temperature and relative-humidity sensors with control algorithms
  • Sound sensor extends occupancy detection to areas not visible to the PIR element
  • Humidity control with thresholds and hysteresis for humidification / dehumidification equipment
  • 3 rear digital inputs; one configurable as analog for NTC probes TS01A01ACC / TS01B01ACC / TS01C01ACC / TS01D01ACC
  • Integrated 2-stage thermostat with PI controller for heating/cooling equipment, valves, 2- and 4-pipe fan coils
  • Smart-sensor input for plug-in air-quality sensors SM03E02ACC (VOC + eCO2 + temperature) or SM03E03ACC (CO2 + VOC + temperature)
  • 12 logic blocks with logical, threshold, algebraic and conditional operators; predefined proportional and dew-point algorithms
  • Circadian Rhythm logic for brightness and colour-temperature curves; Virtual Holder logic for hotel-room occupancy
  • Ceiling mounting up to 4 m (13 ft); bus-powered, ≤ 5 mA; 250 group addresses / 250 associations
  • Finish: black

Technical Specifications

Power supply Via KNX bus, 21–32 V DC (SELV)
Current consumption ≤ 5 mA
Connections KNX bus connector; rear 6-pole cabled connector (AWG 24 wires, 100 mm / 4 in leads) for the inputs
Inputs – digital mode 3 inputs for dry (potential-free) contacts; scanning voltage 3.3 V DC; max. cable length 30 m (98 ft), twisted
Input – analog mode 1 of the 3 inputs for NTC probe TS01A01ACC (−20…+100 °C), TS01B01ACC (−50…+60 °C), TS01C01ACC (−40…+105 °C) or TS01D01ACC (−5…+45 °C); max. cable 30 m (98 ft)
Sensors PIR presence; illuminance; temperature; relative humidity; sound
Plug-in sensor input SM03E02ACC / SM03E02ACC-3 or SM03E03ACC / SM03E03ACC-3 (wired per the plug-in datasheet)
Presence channels 5, independently configurable
Thermostat 2-stage with integrated PI controller
Logic blocks 12
Mounting height Ceiling, up to 4 m (13 ft)
Group addresses / associations 250 / 250
Finish Black
Weight 0.11 kg (0.24 lb)
ETS application Eelectron PD00E0x application (download from eelectron.com)
Manufacturer part no. / GTIN PD00E02KNX-3 / 8054144521541

Related Products

PD00E02KNX (same detector in white). Standard (presence + light): PD00E01KNX / PD00E01KNX-3; Space (adds occupancy/utilization reporting): PD00E03KNX / PD00E03KNX-3; Basic: PD00E00KNX / PD00E00KNX-3. Plug-in air-quality sensors: SM03E02ACC / SM03E02ACC-3, SM03E03ACC / SM03E03ACC-3 with the PD00E07ACC-1 / PD00E07ACC-3 double squared ring. Accessories: PD00E00ACC (white) / PD00E00ACC-3 (black) surface-mounting enclosure; PD00E01ACC recessed box mounting frame; PD00E03ACC / PD00E03ACC-3 Swiss-box mounting frame; PD00E06ACC-10 10 m input cable; PD00E08ACC cable clamp. DALI-2 equivalent: PD00A02DL2-1 / -3.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
