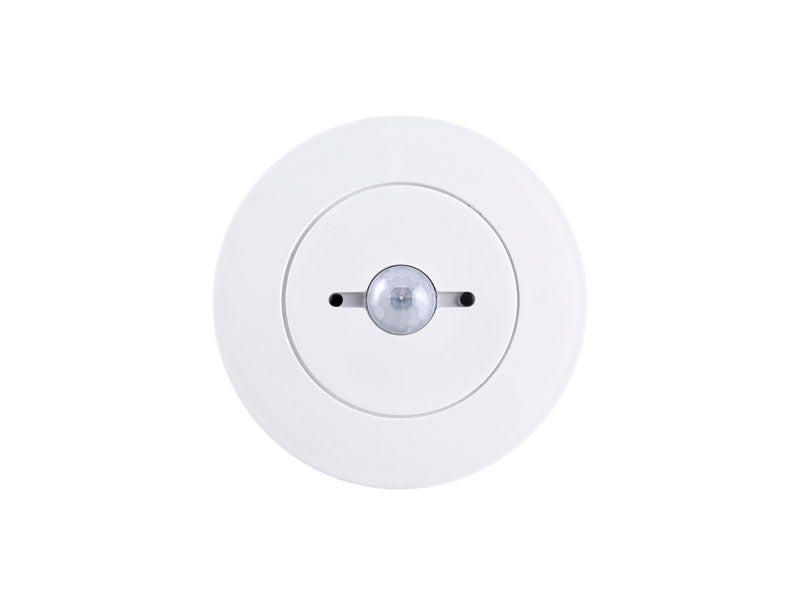

Eelectron PD00E01KNX KNX Presence Detector standard – white
Eelectron PD00E01KNX KNX Presence Detector standard – white

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eelectron

Eelectron PD00E01KNX KNX Presence Detector standard – white

SKU: PD00E01KNX
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$150.90 USD
-26% $204.96 USD $150.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The Eelectron PD00E01KNX is the Standard version of the Multi.Sensor KNX ceiling range in white: PIR presence detection plus an integrated illuminance sensor for daylight-dependent and constant-light control. It is the workhorse detector for offices, classrooms, hotel rooms and corridors where lights should follow both occupancy and available daylight, and it replaces separate occupancy sensor, photocell and input module with one bus-powered device.

Five independent presence channels can each be set for presence with or without light control, automatic or semi-automatic, or for constant-illuminance regulation independent of presence. A rear connector provides 3 dry-contact inputs, one of which can be switched to analog mode for an Eelectron NTC probe, turning the detector into a full 2-stage PI room thermostat. Twelve logic blocks, a Circadian Rhythm function for tunable-white luminaires and the Virtual Holder hotel-room logic are all included in the ETS application. The white finish is matched by the black version PD00E01KNX-3.

Key Features

  • PIR presence detection with 5 independently configurable channels: presence with/without light control, constant-illuminance control, automatic or semi-automatic activation
  • Integrated illuminance sensor for ambient lighting control; ETS correction parameters calibrate the ceiling reading to the work plane with a lux meter
  • Circadian Rhythm logic: brightness and colour temperature follow predefined curves or the real sun position for a given geographic coordinate
  • 3 rear digital inputs for dry-contact pushbuttons or switches (on/off, dimming, shutters/blinds, scenes, sequences, step commands)
  • One input configurable as analog for Eelectron NTC probes TS01A01ACC / TS01B01ACC / TS01C01ACC / TS01D01ACC — sends temperature to the bus or runs a complete thermostat module
  • Integrated 2-stage thermostat with PI controller for heating/cooling equipment, valves, 2- and 4-pipe fan coils
  • 12 logic blocks with logical, threshold, algebraic and conditional operators plus predefined proportional and dew-point algorithms
  • Virtual Holder logic: door contact + presence sensors produce a reliable hotel-room occupancy state and detect unexpected presence
  • Ceiling mounting up to 4 m (13 ft); surface, recessed and Swiss-box mounting accessories available
  • Bus-powered, ≤ 5 mA; 250 group addresses / 250 associations
  • Finish: white

Technical Specifications

Power supply Via KNX bus, 21–32 V DC (SELV)
Current consumption ≤ 5 mA
Connections KNX bus connector; rear 6-pole cabled connector (AWG 24 wires, 100 mm / 4 in leads) for the inputs
Inputs – digital mode 3 inputs for dry (potential-free) contacts; scanning voltage 3.3 V DC; max. cable length 30 m (98 ft), twisted
Input – analog mode 1 of the 3 inputs for NTC probe TS01A01ACC (−20…+100 °C), TS01B01ACC (−50…+60 °C), TS01C01ACC (−40…+105 °C) or TS01D01ACC (−5…+45 °C); max. cable 30 m (98 ft)
Sensors PIR presence detection; illuminance sensor
Presence channels 5, independently configurable
Thermostat 2-stage with integrated PI controller
Logic blocks 12
Mounting height Ceiling, up to 4 m (13 ft)
Group addresses / associations 250 / 250
Finish White
Weight 0.11 kg (0.24 lb)
ETS application Eelectron PD00E0x application (download from eelectron.com)
Manufacturer part no. / GTIN PD00E01KNX / 8054144522371

Related Products

PD00E01KNX-3 (same detector in black). Basic (presence only): PD00E00KNX / PD00E00KNX-3; Multi with temperature, humidity and sound: PD00E02KNX / PD00E02KNX-3; Space: PD00E03KNX / PD00E03KNX-3; High Bay: PD00E09KNX / PD00E09KNX-3; BLE beacon version: PD00E11KNX / PD00E11KNX-3. Accessories: PD00E00ACC (white) / PD00E00ACC-3 (black) surface-mounting enclosure; PD00E01ACC recessed box mounting frame; PD00E03ACC / PD00E03ACC-3 Swiss-box mounting frame; PD00E06ACC-10 10 m input cable; PD00E08ACC cable clamp. Probes: TS01A04ACC, TS01B04ACC, TS01C01ACC, TS01D01ACC-1 / -3. DALI-2 equivalent: PD00A01DL2-1 / -3.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.

Datasheet (PDF) · Available to order.
