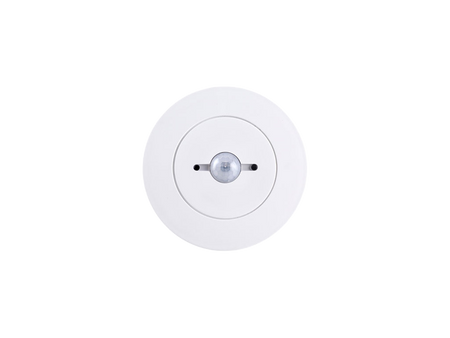

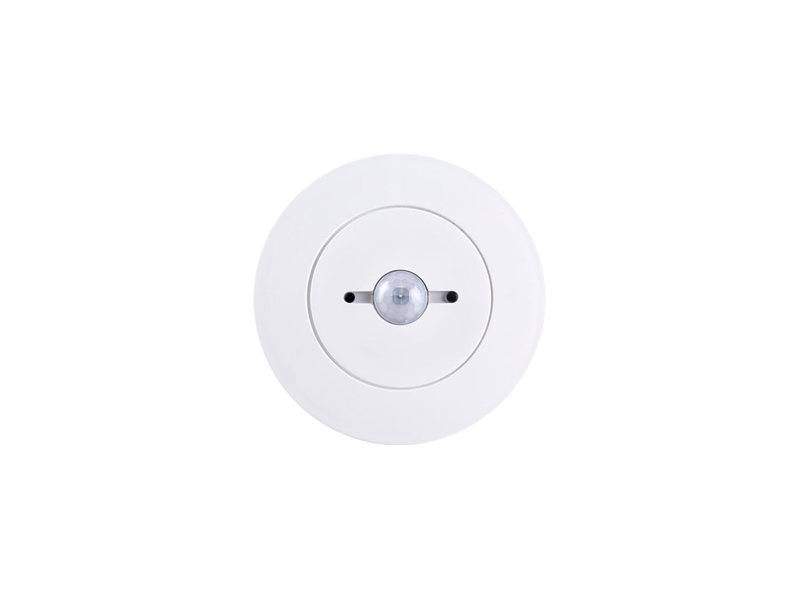

Eelectron PD00E00KNX KNX presence detector basic – white
Eelectron PD00E00KNX KNX presence detector basic – white

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eelectron

Eelectron PD00E00KNX KNX presence detector basic – white

SKU: PD00E00KNX
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$142.90 USD
-27% $194.88 USD $142.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The Eelectron PD00E00KNX is the entry point of the Multi.Sensor ceiling range: a KNX presence detector in white that handles occupancy detection only, with no light, temperature or humidity sensing on board. It is the right choice where lighting or HVAC is already measured elsewhere and the room simply needs a reliable, bus-native occupancy signal — hotel corridors and guest rooms, open-plan offices, meeting rooms, classrooms and multi-family common areas.

The passive-infrared element feeds 5 independently configurable channels, so one detector can report presence to lighting, HVAC, security and a building dashboard with different delays and behaviours. A rear 6-pole connector adds 3 dry-contact inputs for pushbuttons, switches or a door contact, and the ETS application includes 12 logic blocks and Eelectron’s Virtual Holder logic, which combines the PIR with a door contact to decide whether a hotel room is really occupied. The white finish lets it disappear into white ceilings; the black sibling (PD00E00KNX-3) is the alternative finish.

Key Features

  • PIR presence detection with 5 independently configurable channels (automatic or semi-automatic activation, individual delays)
  • Basic version: presence detection only — no illuminance, temperature or humidity sensor
  • 3 rear digital inputs for dry-contact pushbuttons or switches: on/off, dimming, shutters/blinds, scenes, sequences, step commands
  • Virtual Holder logic for hospitality: door contact + PIR give an accurate occupied/unoccupied room state and flag unexpected presence
  • 12 logic blocks: logical and threshold operators, algebraic and conditional expressions, predefined proportional and dew-point algorithms
  • Adjustable PIR sensitivity levels set in ETS
  • Ceiling mounting up to 4 m (13 ft); surface, false-ceiling and Swiss-box mounting via accessories
  • Bus-powered, ≤ 5 mA — no auxiliary supply
  • 250 group addresses / 250 associations
  • Finish: white

Technical Specifications

Power supply Via KNX bus, 21–32 V DC (SELV)
Current consumption ≤ 5 mA
Connections KNX bus connector; rear 6-pole cabled connector (AWG 24 wires, 100 mm / 4 in leads) for the inputs
Inputs – digital mode 3 inputs for dry (potential-free) contacts; scanning voltage 3.3 V DC; max. cable length 30 m (98 ft), twisted
Sensors Passive infrared (PIR) presence detection
Presence channels 5, independently configurable
Logic blocks 12
Mounting height Ceiling, up to 4 m (13 ft)
Group addresses / associations 250 / 250
Finish White
Weight 0.11 kg (0.24 lb)
ETS application Eelectron PD00E0x application (download from eelectron.com)
Manufacturer part no. / GTIN PD00E00KNX / 8054144521480

Related Products

PD00E00KNX-3 (same detector in black). Standard version with light sensor: PD00E01KNX / PD00E01KNX-3; Multi: PD00E02KNX / PD00E02KNX-3; Space: PD00E03KNX / PD00E03KNX-3; High Bay: PD00E09KNX / PD00E09KNX-3. Accessories: PD00E00ACC (white) / PD00E00ACC-3 (black) surface-mounting enclosure; PD00E01ACC recessed box mounting frame; PD00E03ACC / PD00E03ACC-3 Swiss-box mounting frame; PD00E06ACC-10 10 m input cable; PD00E08ACC cable clamp. DALI-2 equivalent: PD00A01DL2-1 / PD00A01DL2-3.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
