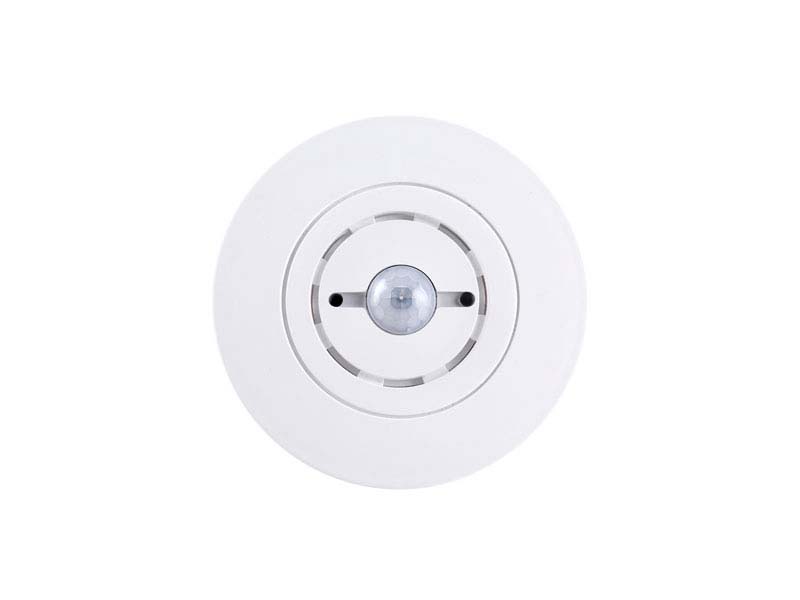

Eelectron PD00A02DL2-1 DALI-2 Multisensor Light, temperature, humidity – white
Eelectron PD00A02DL2-1 DALI-2 Multisensor Light, temperature, humidity – white

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eelectron

Eelectron PD00A02DL2-1 DALI-2 Multisensor Light, temperature, humidity – white

SKU: PD00A02DL2-1
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$143.90 USD
-27% $196.00 USD $143.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The Eelectron PD00A02DL2-1 is a DALI-2 certified Multisensor presence detector in white. Besides PIR presence detection and an illuminance sensor it integrates temperature and relative-humidity sensors and a sound sensor, all exposed to the DALI-2 application controller as standard input-device instances, so a DALI-2 room controller can run lighting, HVAC set-points and indoor-climate logging from one ceiling device — a strong fit for hotel rooms, offices and classrooms built on DALI-2.

The device implements IEC 62386-101 ed. 2 and -103 ed. 1 with instances for pushbuttons (301), presence (303), light (304) and the Multisensor’s sound, temperature and humidity data. A rear 6-pole connector carries 3 digital inputs for pushbuttons; input 3 can alternatively take the SM03E01ACC (CO2 + temperature) or SM03E02ACC (VOC + eCO2 + temperature) plug-in for indoor air quality. The sound sensor keeps the occupied state alive in rooms with areas the PIR cannot see. The black finish is PD00A02DL2-3.

Key Features

  • DALI-2 input device: IEC 62386-101 ed. 2, -103 ed. 1; instances 301 (pushbuttons), 303 (presence), 304 (light), plus sound, temperature and humidity
  • PIR presence detection for mounting heights up to 4 m (13 ft); coverage approx. 10 m (33 ft) diameter at 2.5 m, 14 m (46 ft) at 4 m
  • Integrated illuminance sensor 50–20,000 lux
  • Temperature sensor −5…+45 °C (0.1 °C resolution, typ. ±0.2 °C) and humidity sensor 0–100 %RH (0.1 %RH, typ. ±2 %RH)
  • Sound sensor extends occupancy detection to areas not visible to the PIR element
  • 3 rear digital inputs for pushbuttons with full event set; input 3 alternatively for plug-in sensors SM03E01ACC / SM03E01ACC-3 (CO2) or SM03E02ACC / SM03E02ACC-3 (VOC + eCO2)
  • Powered from the DALI bus (9.5–22.4 V DC, ≤ 10 mA); 250 ms start-up
  • Compact PC-ABS housing ø 81 × 37 mm (3.2 × 1.5 in), IP20, approx. 120 g
  • Surface, recessed and Swiss-box mounting via PD00E00ACC, PD00E01ACC, PD00E03ACC; PD00E08ACC cable clamp; PD00E06ACC-10 input cable
  • Finish: white

Technical Specifications

Power supply Via DALI bus, 9.5–22.4 V DC (FELV)
Current consumption ≤ 10 mA; start-up time 250 ms
DALI-2 compliance IEC 62386-101 ed. 2, -103 ed. 1; input instances 301 (digital inputs), 303 (presence), 304 (light); sound, temperature, humidity data
Connections DALI bus; rear 6-pole cabled connector, AWG 26, 100 mm (4 in) leads
Inputs – digital mode 3 inputs for dry contacts (pushbuttons); scanning voltage 3.3 V DC; max. cable length 10 m (33 ft), twisted
Sensors PIR presence; illuminance; temperature; relative humidity; sound
Illuminance sensor 50–20,000 lux
Temperature sensor −5…+45 °C (23…113 °F); resolution 0.1 °C; tolerance typ. ±0.2 °C
Humidity sensor 0–100 %RH; resolution 0.1 %RH; tolerance typ. ±2 %RH (max. ±3 %RH)
Plug-in sensor Input 3 alternatively for SM03E01ACC / SM03E01ACC-3 or SM03E02ACC / SM03E02ACC-3
Mounting height / coverage Up to 4 m (13 ft); at 2.5 m approx. ø 3.8 / 7.0 / 10.0 m, at 4 m approx. ø 6 / 11 / 14 m (seated / walking across / radial)
Enclosure / protection PC-ABS; IP20 (EN 60529)
Operating temperature −5…+45 °C (23…113 °F); storage −20…+55 °C; max. 90 % RH non-condensing; indoor use
Dimensions (ø × H) 81 × 37 mm (3.2 × 1.5 in)
Weight 0.1 kg (0.22 lb) (datasheet: approx. 120 g)
Standards EN IEC 63044-3; EN IEC 63044-5-1 / -5-2; EN 50491-2; LVD 2014/35/EU; EMC 2014/30/EU; DALI-2
Finish White
Manufacturer part no. / GTIN PD00A02DL2-1 / 8054144522623

Related Products

PD00A02DL2-3 (same detector in black). DALI-2 Standard (presence + light only): PD00A01DL2-1 / PD00A01DL2-3. KNX equivalent: PD00E02KNX / PD00E02KNX-3. Plug-in air-quality sensors: SM03E02ACC / SM03E02ACC-3. Accessories: PD00E00ACC / PD00E00ACC-3 surface enclosure, PD00E01ACC box mounting frame, PD00E03ACC / PD00E03ACC-3 Swiss-box frame, PD00E07ACC-1 / -3 double squared ring (sensor + plug-in), PD00E08ACC cable clamp, PD00E06ACC-10 input cable.
