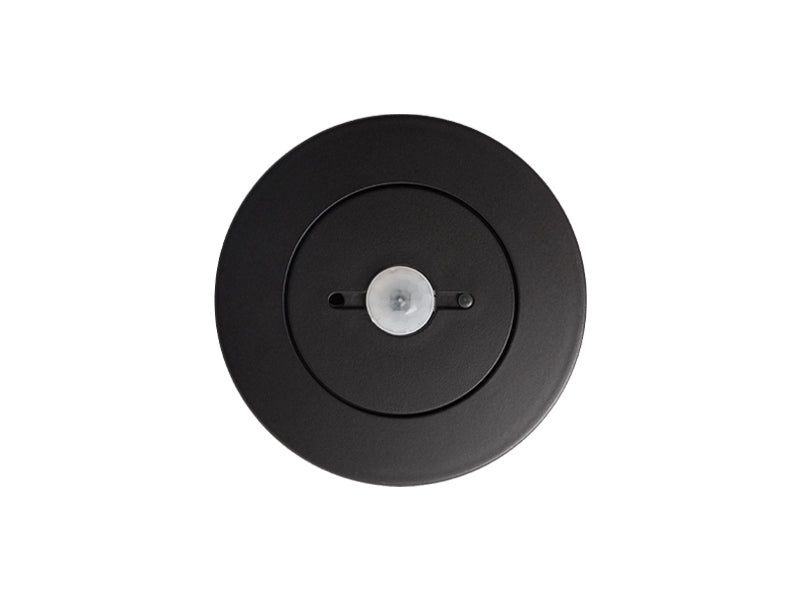

Eelectron PD00A01DL2-3 DALI-2 Presence Detector with light control – black
Eelectron PD00A01DL2-3 DALI-2 Presence Detector with light control – black

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eelectron

Eelectron PD00A01DL2-3 DALI-2 Presence Detector with light control – black

SKU: PD00A01DL2-3
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$125.90 USD
-27% $171.36 USD $125.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The Eelectron PD00A01DL2-3 is a DALI-2 certified presence detector with light control in black, the Standard version of Eelectron’s DALI-2 ceiling sensor range. It gives a DALI-2 lighting system (application controller plus DALI-2 drivers) native occupancy and illuminance input devices in one compact 81 mm (3.2 in) round housing, for offices, classrooms, hotel rooms and corridors where the lighting runs on DALI rather than KNX.

The device implements IEC 62386 parts 101 ed. 2 and 103 ed. 1 with input-device instances for presence (303), light (304) and pushbuttons (301): a rear 6-pole connector carries 3 digital inputs for pushbuttons, each reporting released, pressed, short press, double press, long-press start/repeat/stop, free and stuck states. Mounting height is up to 4 m (13 ft) and the same mounting accessories as the KNX range apply. The white finish is PD00A01DL2-1.

Key Features

  • DALI-2 input device: IEC 62386-101 ed. 2, -103 ed. 1; instances 301 (pushbuttons), 303 (presence), 304 (light)
  • PIR presence detection for mounting heights up to 4 m (13 ft); coverage approx. 10 m (33 ft) diameter at 2.5 m, 14 m (46 ft) at 4 m
  • Integrated illuminance sensor 50–20,000 lux for daylight-dependent control by the DALI-2 application controller
  • 3 rear digital inputs for pushbuttons with full event set: released, pressed, short, double, long-press start/repeat/stop, free, stuck
  • Powered from the DALI bus (9.5–22.4 V DC, ≤ 10 mA) — no auxiliary supply; 250 ms start-up
  • Compact PC-ABS housing ø 81 × 37 mm (3.2 × 1.5 in), IP20, approx. 120 g
  • Surface, recessed and Swiss-box mounting via PD00E00ACC, PD00E01ACC, PD00E03ACC; PD00E08ACC cable clamp; PD00E06ACC-10 10 m input cable
  • Finish: black

Technical Specifications

Power supply Via DALI bus, 9.5–22.4 V DC (FELV)
Current consumption ≤ 10 mA; start-up time 250 ms
DALI-2 compliance IEC 62386-101 ed. 2, -103 ed. 1; input instances 301 (digital inputs), 303 (presence), 304 (light)
Connections DALI bus; rear 6-pole cabled connector, AWG 26, 100 mm (4 in) leads
Inputs – digital mode 3 inputs for dry contacts (pushbuttons); scanning voltage 3.3 V DC; max. cable length 10 m (33 ft), twisted
Sensors PIR presence; illuminance
Illuminance sensor 50–20,000 lux
Mounting height / coverage Up to 4 m (13 ft); at 2.5 m approx. ø 3.8 / 7.0 / 10.0 m, at 4 m approx. ø 6 / 11 / 14 m (seated / walking across / radial)
Enclosure / protection PC-ABS; IP20 (EN 60529)
Operating temperature −5…+45 °C (23…113 °F); storage −20…+55 °C; max. 90 % RH non-condensing; indoor use
Dimensions (ø × H) 81 × 37 mm (3.2 × 1.5 in)
Weight 0.1 kg (0.22 lb) (datasheet: approx. 120 g)
Standards EN IEC 63044-3; EN IEC 63044-5-1 / -5-2; EN 50491-2; LVD 2014/35/EU; EMC 2014/30/EU; DALI-2
Finish Black
Manufacturer part no. / GTIN PD00A01DL2-3 / 8054144522760

Related Products

PD00A01DL2-1 (same detector in white). DALI-2 Multisensor with temperature, humidity and sound: PD00A02DL2-1 / PD00A02DL2-3. KNX equivalent: PD00E01KNX / PD00E01KNX-3. Accessories: PD00E00ACC / PD00E00ACC-3 surface enclosure, PD00E01ACC box mounting frame, PD00E03ACC / PD00E03ACC-3 Swiss-box frame, PD00E08ACC cable clamp, PD00E06ACC-10 10 m input cable.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.

Datasheet (PDF) · Available to order.
