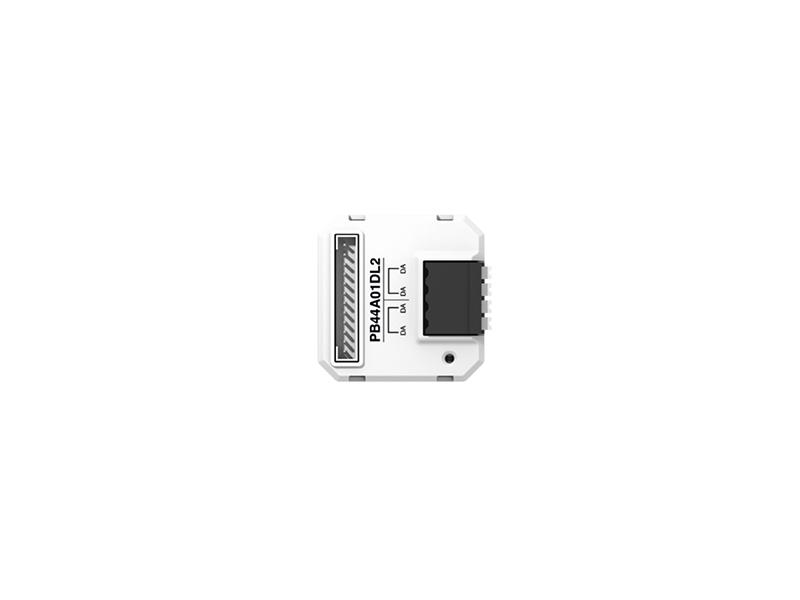

Eelectron PB44A01DL2 DALI push-button interface 4-way, 4 LED outputs
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$77.90 USD
Regular price
-27%
$106.40 USD
Sale price
$77.90 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The Eelectron PB44A01DL2 is a DALI-2 pushbutton interface with 4 dry-contact inputs and 4 LED outputs, powered from the DALI line, for connecting conventional pushbuttons to a DALI-2 application controller such as the Eelectron IC01D03DAL. It is certified to IEC 62386-301 (push buttons) and -332 (feedback), so wall switches, bedside buttons and door contacts can control DALI lighting without a KNX device in the room.
The four LED outputs give status feedback on the pushbuttons and are powered from an external 24 V supply, keeping the DALI bus load at 10 mA or less. The 34.7 x 34.7 x 12 mm module sits in the wall box behind the switch, inputs may run up to 10 m, and it operates from 0 to +50 °C.
Key Features
- 4 dry-contact inputs for pushbuttons and switches, cable up to 10 m (33 ft)
- DALI-2 certified input device: IEC 62386-301 (push buttons) and -332 (feedback)
- Multi-master operation on the DALI-2 line
- Powered from the DALI line, 9.5–22.4 V DC
- 4 LED outputs for status feedback; external 24 V supply (+V24) for the LEDs
- DALI bus load ≤ 10 mA with LEDs on
- 34.7 x 34.7 x 12 mm NY6 housing, approx. 40 g, for standard wall boxes
- Operating temperature 0 to +50 °C (32 to 122 °F)
Technical Specifications
| Power supply | From DALI line, 9.5–22.4 V DC; LEDs from external 24 V DC |
| Current consumption (DALI) | ≤ 10 mA |
| Inputs | 4 dry-contact; max cable 10 m (33 ft) |
| LED outputs | 4 |
| Standards | IEC 62386-101/103, -301, -332 (DALI-2) |
| Mounting | Flush-mount wall box |
| Dimensions | 34.7 x 34.7 x 12 mm (1.37 x 1.37 x 0.47 in) |
| Material | NY6 |
| Operating temperature | 0 °C to +50 °C (32 °F to 122 °F) |
| Certifications | DALI-2; CE |
| ETS application | None (DALI-2 device, configured by the application controller) |
| Weight (net) | 0.04 kg (0.09 lb) |
| Manufacturer part no. / GTIN | PB44A01DL2 / 8054144522609 |
Related Products
Sibling: PB40A01DL2 (inputs only). DALI-2 application controller with input support: IC01D03DAL. DALI line repeater: LR00A01DAL. KNX-side pushbutton interfaces: IO22D02KNX / IO44D02KNX / IO62D02KNX.
CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
Datasheet (PDF) · Available to order.
