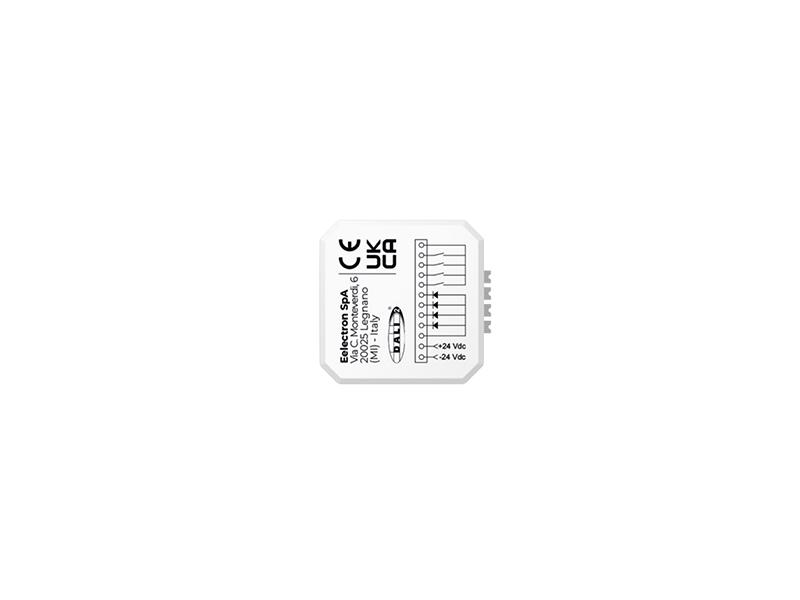

Eelectron PB40A01DL2 DALI push-button interface 4-fold
✗
UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or
equivalent). Installation in USA projects may require a Field Evaluation
by a recognized laboratory. Consult your local AHJ before specifying.
~
Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as
the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an
NRTL-listed power supply, many AHJs accept non-listed SELV devices.
Verify with your local AHJ before specifying.
Regular price
$67.90 USD
Regular price
-26%
$91.84 USD
Sale price
$67.90 USD
Couldn't load pickup availability
KNX & DALI Specialists
Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.
Free shipping over $500
KNX certified devices
Expert technical support
Got questions?
Feel free to get in touch
Ask an expert!
The Eelectron PB40A01DL2 is a DALI-2 pushbutton interface with 4 dry-contact inputs, powered from the DALI line, for connecting conventional pushbuttons to a DALI-2 application controller such as the Eelectron IC01D03DAL. It is certified to IEC 62386-301 (push buttons) and -332 (feedback), so wall switches, bedside buttons and door contacts can control DALI lighting without a KNX device in the room.
Bus load is at most 6 mA, so many interfaces fit on one line. The 34.7 x 34.7 x 12 mm module sits in the wall box behind the switch, inputs may run up to 10 m, and it operates from 0 to +50 °C.
Each input is assigned in the application controller to DALI groups, scenes or individual control gear, so a single 4-button plate can switch, dim and recall scenes for a room. The interface is powered entirely from the DALI line and requires no mains or KNX connection in the wall box, which keeps the room wiring simple in offices and hotel rooms that run a DALI-2 lighting system.
Key Features
- 4 dry-contact inputs for pushbuttons and switches, cable up to 10 m (33 ft)
- DALI-2 certified input device: IEC 62386-301 (push buttons) and -332 (feedback)
- Multi-master operation on the DALI-2 line
- Powered from the DALI line, 9.5–22.4 V DC
- DALI bus load ≤ 6 mA
- 34.7 x 34.7 x 12 mm NY6 housing, approx. 40 g, for standard wall boxes
- Operating temperature 0 to +50 °C (32 to 122 °F)
Technical Specifications
| Power supply | From DALI line, 9.5–22.4 V DC |
| Current consumption (DALI) | ≤ 6 mA |
| Inputs | 4 dry-contact; max cable 10 m (33 ft) |
| LED outputs | None |
| Standards | IEC 62386-101/103, -301, -332 (DALI-2) |
| Mounting | Flush-mount wall box |
| Dimensions | 34.7 x 34.7 x 12 mm (1.37 x 1.37 x 0.47 in) |
| Material | NY6 |
| Operating temperature | 0 °C to +50 °C (32 °F to 122 °F) |
| Certifications | DALI-2; CE |
| ETS application | None (DALI-2 device, configured by the application controller) |
| Weight (net) | 0.04 kg (0.09 lb) |
| Manufacturer part no. / GTIN | PB40A01DL2 / 8054144522593 |
Related Products
Sibling: PB44A01DL2 (adds 4 LED outputs). DALI-2 application controller with input support: IC01D03DAL. DALI line repeater: LR00A01DAL. KNX-side pushbutton interfaces: IO22D02KNX / IO44D02KNX / IO62D02KNX.
CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
