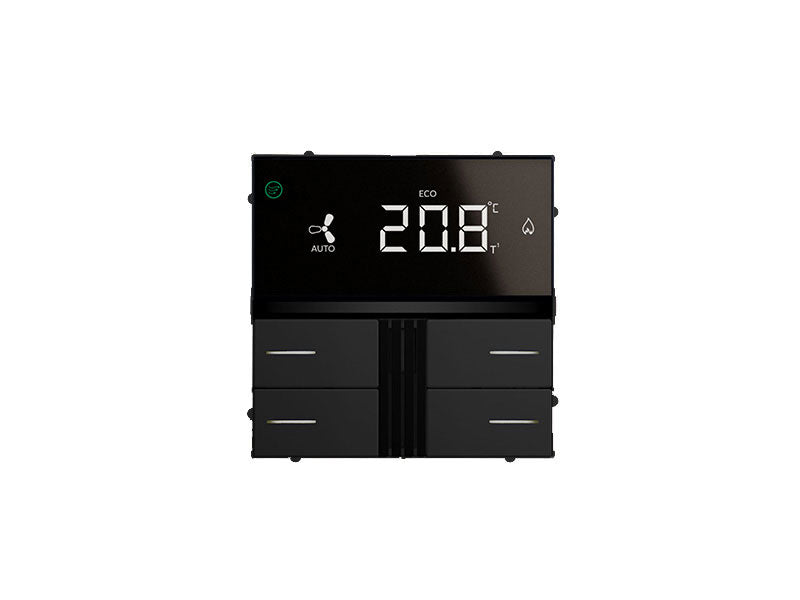

Eelectron MO04L02KNX-3 KNX multisensor LITE 4-fold – black
Eelectron MO04L02KNX-3 KNX multisensor LITE 4-fold – black

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eelectron

Eelectron MO04L02KNX-3 KNX multisensor LITE 4-fold – black

SKU: MO04L02KNX-3
(0)
✗ UL Listed
This product has not been certified by an NRTL (UL, ETL, CSA or equivalent). Installation in USA projects may require a Field Evaluation by a recognized laboratory. Consult your local AHJ before specifying.
~ Low Voltage · SELV
This device operates on a Safety Extra Low Voltage circuit — such as the KNX 29V bus or a DALI 16V bus (NEC Class 2). When powered by an NRTL-listed power supply, many AHJs accept non-listed SELV devices. Verify with your local AHJ before specifying.
$271.90 USD
-8% $296.80 USD $271.90 USD
In stock
On backorder
KNX & DALI Specialists

Not sure which device fits your project? Our team speaks KNX. Contact us for a free technical recommendation.

Free shipping over $500
KNX certified devices
Expert technical support

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 956-6821

The Eelectron MO04L02KNX-3 is the LITE version of the OL-U KNX multisensor in black: the same temperature, humidity and CO2 sensing, dual 2-stage PI thermostats and backlit LCD as the MO04A01KNX, delivered as a pre-assembled unit with four white-LED buttons and a non-capacitive RGB status bar at a lower price point. It is the volume choice for hotel guest rooms, student housing and multi-family projects where every room needs climate, air-quality and lighting control from one wall device.

The two thermostats control heating, cooling, valves, 6-way valves and 2-/4-pipe fan coils for two zones; the humidity channel manages humidification and dehumidification with hysteresis; CO2 (400–2000 ppm) supports demand-controlled ventilation. Four mechanical buttons handle on/off, dimming, shutters and scenes, 32 logic blocks and the Virtual Holder hospitality logic are built in, and the device supports KNX Data Secure. The LITE mounts in a 2- or 3-module box with the raw-plastic FO71A01 frame. The white version is MO04L02KNX-1.

Key Features

  • Integrated temperature (−5…+55 °C), relative-humidity (0–100 %RH) and CO2 (400–2000 ppm) sensors
  • Two independent 2-stage thermostats with PI controllers for heating/cooling, valves, 6-way valves, 2- and 4-pipe fan coils
  • Humidity control with thresholds and hysteresis
  • 4 mechanical buttons (4 channels) with white LEDs, supplied pre-assembled; central RGB LED bar (non-capacitive, no gestures)
  • LCD display with adjustable backlight and ECO mode
  • 32 logic blocks; predefined proportional and dew-point algorithms
  • Virtual Holder logic for hotel-room occupancy
  • KNX Data Secure; KNX interface integrated; 600 group addresses / 700 associations
  • Fits 2- or 3-module boxes (Italian 502/503, German, British, Swiss); raw-plastic frame FO71A01-2M / -3M ordered separately
  • Finish: black

Technical Specifications

Power supply Via KNX bus, 21–32 V DC (SELV)
Current consumption Max. 30 mA
Sensors Temperature, relative humidity, CO2
CO2 sensor 400–2000 ppm, accuracy ±(50 ppm + 5 %); resolution 10 ppm
Temperature sensor −5…+55 °C (23…131 °F); resolution 0.01 °C; tolerance typ. ±0.5 °C
Humidity sensor 0–100 %RH; accuracy ±6 % (5–35 °C, 20–65 %RH) / ±9 % (10–60 °C, 0–100 %RH); resolution 0.4 %RH
Thermostats 2 × 2-stage with PI controller
Controls 4 mechanical buttons (4 channels) with white LEDs; RGB LED bar (non-capacitive); LCD with adjustable backlight
Logic blocks 32
Security KNX Data Secure
Group addresses / associations 600 / 700
Enclosure / protection PC-ABS; IP20 (EN 60529)
Operating temperature −5…+45 °C (23…113 °F); storage −20…+70 °C (recommended max. 55 °C); max. 90 % RH non-condensing; indoor, dry places
Device dimensions 71 × 71 × 25 mm (2.8 × 2.8 × 1.0 in); 2-module frame 92 × 92 × 11 mm, 3-module frame 130 × 92 × 11 mm (frames not included)
Standards EN 63044-3; EN 63044-5-1 / -5-2; EN 50491-2; LVD 2014/35/EU; EMC 2014/30/EU; KNX certified
Mounting Flush wall box, 2 or 3 modules
Weight 0.13 kg (0.29 lb) (datasheet: approx. 67 g)
Finish Black
ETS application Eelectron MO04x0xKNX application (download from eelectron.com)
Manufacturer part no. / GTIN MO04L02KNX-3 / 8054144525679

Related Products

MO04L02KNX-1 (white). Regular version with capacitive swipe bar and RGB button LEDs: MO04A01KNX-1 / -3 / -4. Thermostat-only LITE (no CO2/humidity): TO04L02KNX-1 / -3. Frames FO71A01-2M / FO71A01-3M; cover plates PO71A01RP-1 / -3, PO71A03RP-1 / -3; SFBOA25-1 / -3 / -4 accessory.

CE certified; not UL/NRTL listed — verify local code requirements before specifying in US installations.
